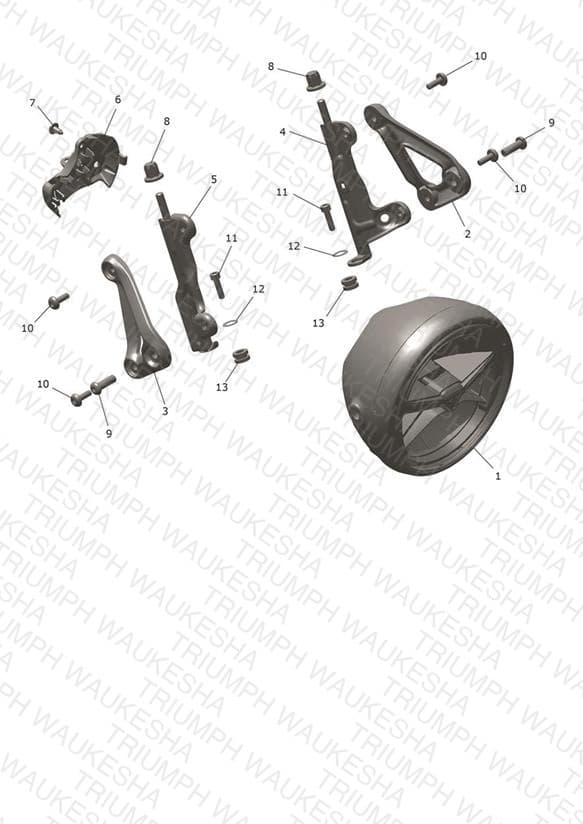

Headlight
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 52TA0516 Headlamp | Headlamp | 1 | $296.95 | Available to order | 1 |
| 2 | TA121021 Holder Headlamp, LH | Holder Headlamp, LH | 1 | $32.63 | Available to order | 1 |
| 3 | TA121022 Holder, Headlamp, RH | Holder, Headlamp, RH | 1 | $32.63 | Available to order | 1 |
| 4 | TA121026 Bracket Assy Holder, Headlamp | Bracket Assy Holder, Headlamp | 1 | $15.95 | Available to order | 1 |
| 5 | TA121025 Bracket Assembly Holder, Headlamp | Bracket Assembly Holder, Headlamp | 1 | $15.95 | Available to order | 1 |
| 6 | TA401013 Holder, Coupler, Headlamp | Holder, Coupler, Headlamp | 1 | $2.03 | Available to order | 1 |
| 7 | BF185019 Clip, Plastic | Clip, Plastic | 1 | $0.66 | Available to order | 1 |
| 8 | TA121024 Damper | Damper | 2 | $0.67 | Available to order | 2 |
| 9 | LBU00181 Screw, Btn Hd, M8 x 1.25 | Screw, Btn Hd, M8 x 1.25 | 2 | $1.13 | Available to order | 2 |
| 10 | LBU00190 Screw, Btn Hd, M6 x 1 | Screw, Btn Hd, M6 x 1 | 4 | $0.91 | Out of Stock | Notify Me |
| 11 | KADD0516 Bolt, Flanged, M5 x 0.8 | Bolt, Flanged, M5 x 0.8 | 2 | $0.17 | Available to order | 2 |
| 12 | LDB00039 Washer, Plain, ID 5.5 x OD 16 x 1.2 | Washer, Plain, ID 5.5 x OD 16 x 1.2 | 2 | $0.10 | Available to order | 2 |
| 13 | TA181308 Grommet | Grommet | 2 | $0.46 | Available to order | 2 |
| 15 | TA181310 Cable Guide | Cable Guide | 1 | $0.38 | Available to order | 1 |
