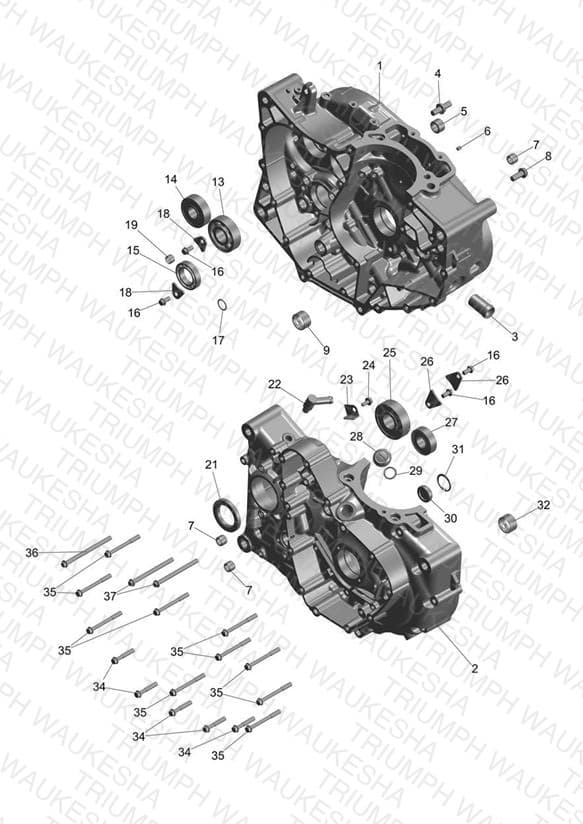

Crankcases
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 36TA0063 Crankcase Assy, LH | Crankcase Assy, LH | 1 | $857.91 | Available to order | 1 |
| 2 | 36TA0061 Crankcase Assy, RH | Crankcase Assy, RH | 1 | $1526.49 | Available to order | 1 |
| 3 | JY601214 Coolant Pipe | Coolant Pipe | 1 | $4.74 | Available to order | 1 |
| 4 | DP101191 Bolt Shifter | Bolt Shifter | 1 | $1.93 | Available to order | 1 |
| 5 | 39256220 Needle Roller Brg | Needle Roller Brg | 1 | $4.58 | Available to order | 1 |
| 6 | PD531053 Nozzle | Nozzle | 1 | $0.67 | Available to order | 1 |
| 7 | JY541034 Bush | Bush | 3 | $3.39 | Available to order | 3 |
| 8 | LAE00001 Bolt, Flanged, M8 x 1.25 x 120, precoat | Bolt, Flanged, M8 x 1.25 x 120, precoat | 1 | $0.91 | Available to order | 1 |
| 9 | JP541024 Bush Bimetallic | Bush Bimetallic | 1 | $5.93 | Available to order | 1 |
| 13 | LPB00019 Bearing Ball, 17 x 47 x 14 x 3L | Bearing Ball, 17 x 47 x 14 x 3L | 1 | $29.43 | Available to order | 1 |
| 14 | 39186420 Ball Bearing, 20 x 52 x 15 | Ball Bearing, 20 x 52 x 15 | 1 | $17.11 | Available to order | 1 |
| 15 | 39260120 Bearing Ball | Bearing Ball | 1 | $17.11 | Available to order | 1 |
| 16 | AA101437 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 | 4 | $0.34 | Available to order | 4 |
| 17 | LJA00015 O Ring | O Ring | 1 | $0.22 | Available to order | 1 |
| 18 | JY541047 Stopper, I/P Shaft Bearing | Stopper, I/P Shaft Bearing | 2 | $1.13 | Available to order | 2 |
| 19 | JY541038 Bush | Bush | 1 | $2.12 | Available to order | 1 |
| 21 | 39187019 Oil Seal | Oil Seal | 1 | $2.94 | Available to order | 1 |
| 22 | BA102207 Joint, Breather Pipe | Joint, Breather Pipe | 1 | $5.04 | Available to order | 1 |
| 23 | TA541057 Bracket | Bracket | 1 | $1.58 | Available to order | 1 |
| 24 | KADD0512 Bolt, Flanged, M5 x 0.8 | Bolt, Flanged, M5 x 0.8 | 1 | $0.10 | Available to order | 1 |
| 25 | JE531001 Ball Bearing, 22 x 56 x 16 | Ball Bearing, 22 x 56 x 16 | 1 | $33.38 | Available to order | 1 |
| 26 | TA541048 Stopper Bearing | Stopper Bearing | 2 | $1.47 | Available to order | 2 |
| 27 | LPB00011 Bearing Ball, 17 x 40 x 12 x 3 | Bearing Ball, 17 x 40 x 12 x 3 | 1 | $24.83 | Available to order | 1 |
| 28 | TA541219 Oil Filler Cap | Oil Filler Cap | 1 | $8.47 | Available to order | 1 |
| 29 | KJAA1424 O Ring | O Ring | 1 | $0.10 | Out of Stock | Notify Me |
| 30 | JL541227 Window, Oil Gauge | Window, Oil Gauge | 1 | $5.61 | Available to order | 1 |
| 31 | KEBB2512 Circlip, Internal | Circlip, Internal | 1 | $0.57 | Available to order | 1 |
| 32 | TA541026 Chain Guard | Chain Guard > A25050 - Not Illustrated | 1 | $14.45 | Available to order | 1 |
| 32 | TA541062 Chain Guard | Chain Guard A25051 > Not Illustrated | 1 | $14.45 | Out of Stock | Notify Me |
| 33 | LBB00007 Screw, Pan Cross, M6 x 1 | Screw, Pan Cross, M6 x 1 Not Illustrated | 3 | $0.41 | Available to order | 3 |
| 37 | KAEW0680 Bolt, Flanged, M6 x 80mm | Bolt, Flanged, M6 x 80mm Qty Query | 3 | $1.01 | Available to order | 3 |
| 38 | DK101251 Parallel Pin | Parallel Pin Not Illustrated | 1 | $0.57 | Available to order | 1 |
| 39 | JP541015 Plug Seal, Dia 8 | Plug Seal, Dia 8 Not Illustrated | 2 | $3.30 | Available to order | 2 |
| 40 | LAD00063 Bolt, Flgd, M5 x 0.8 x 16, Precoat | Bolt, Flgd, M5 x 0.8 x 16, Precoat Not Illustrated | 2 | $0.41 | Available to order | 2 |
