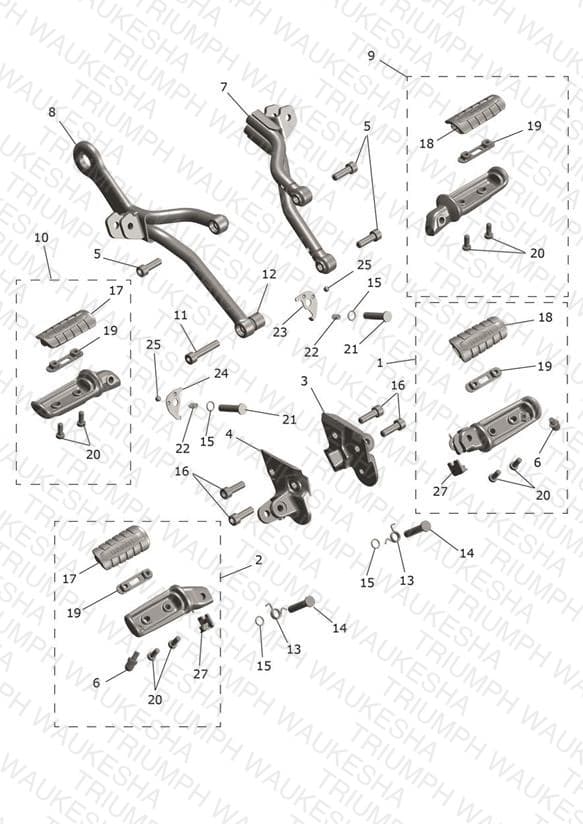

Footrests
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 36TA0107 Rider Step Assy, LH | Rider Step Assy, LH | 1 | $27.45 | Available to order | 1 |
| 2 | 36TA0108 Rider Step Assy, RH | Rider Step Assy, RH | 1 | $27.45 | Available to order | 1 |
| 3 | TA113013 Holder Step, Rider, LH | Holder Step, Rider, LH | 1 | $133.86 | Backorder — Early August 2026 | 1 |
| 4 | TA113014 Holder Step, Rider, RH | Holder Step, Rider, RH | 1 | $133.86 | Available to order | 1 |
| 5 | LAC00234 Bolt, Socket, M8 x 1.25 | Bolt, Socket, M8 x 1.25 | 3 | $1.10 | Available to order | 3 |
| 6 | JL113035 Bolt, M6 x 1 | Bolt, M6 x 1 | 2 | $1.93 | Available to order | 2 |
| 7 | TA113006 Holder, Pillion, LH | Holder, Pillion, LH | 1 | $44.63 | Available to order | 1 |
| 8 | TA113010 Holder, Pillion, RH | Holder, Pillion, RH | 1 | $44.63 | Available to order | 1 |
| 9 | 36TA0109 Step Assy, Pillion, LH | Step Assy, Pillion, LH | 1 | $23.82 | Available to order | 1 |
| 10 | 36TA0110 Step Assy, Pillion, RH | Step Assy, Pillion, RH | 1 | $23.82 | Available to order | 1 |
| 11 | LAC00233 Bolt, Socket, M8 x 1.25 | Bolt, Socket, M8 x 1.25 | 1 | $1.51 | Available to order | 1 |
| 12 | TA113061 Spacer | Spacer | 1 | $1.93 | Available to order | 1 |
| 13 | JP113035 Torsion Spring | Torsion Spring | 2 | $1.01 | Available to order | 2 |
| 14 | JP113019 Pivot Pin, Footrest, Black | Pivot Pin, Footrest, Black | 2 | $2.95 | Available to order | 2 |
| 15 | 30141031 O Ring | O Ring | 4 | $0.17 | Available to order | 4 |
| 16 | LBU00212 Screw, Btn Hd, M8 x 1.25 | Screw, Btn Hd, M8 x 1.25 | 4 | $1.36 | Available to order | 4 |
| 17 | TA113012 Damper Step, RH | Damper Step, RH | 2 | $4.60 | Available to order | 2 |
| 18 | TA113008 Damper Step, LH | Damper Step, LH | 2 | $4.60 | Available to order | 2 |
| 19 | TA113019 Plate, Step, Pillion | Plate, Step, Pillion | 4 | $2.95 | Available to order | 4 |
| 20 | LAC00010 Bolt | Bolt | 8 | $1.01 | Available to order | 8 |
| 21 | DD161381 Clevis Pin | Clevis Pin | 2 | $0.66 | Available to order | 2 |
| 22 | GF161143 Compression Spring | Compression Spring | 2 | $0.10 | Available to order | 2 |
| 23 | TA113021 Lock Plate, LH | Lock Plate, LH | 1 | $2.19 | Available to order | 1 |
| 24 | TA113033 Lock Plate, RH | Lock Plate, RH | 1 | $4.86 | Available to order | 1 |
| 25 | KMAA0800 Ball, Steel | Ball, Steel | 2 | $0.10 | Available to order | 2 |
| 27 | TA113032 Stopper Step | Stopper Step | 2 | $3.29 | Available to order | 2 |
| 28 | KDBA0818 Washer, Plain | Washer, Plain Part Not Illustrated | 4 | $0.10 | Available to order | 4 |
| 29 | TA113030 Heelguard, LH | Heelguard, LH Part Not Illustrated | 1 | $33.42 | Available to order | 1 |
| 30 | TA113031 Heelguard, RH | Heelguard, RH Part Not Illustrated | 1 | $33.42 | Out of Stock | Notify Me |
| 31 | LBU00218 Screw, Btn Hd, M6 x 1 | Screw, Btn Hd, M6 x 1 Part Not Illustrated | 4 | $0.56 | Available to order | 4 |
| 32 | TA111151 Collar | Collar Part Not Illustrated | 2 | $1.63 | Available to order | 2 |
| 33 | TA111152 Collar | Collar Part Not Illustrated | 2 | $1.91 | Available to order | 2 |
| 34 | KHAA2015 Pin Cotter | Pin Cotter Part Not Illustrated | 4 | $0.10 | Available to order | 4 |
