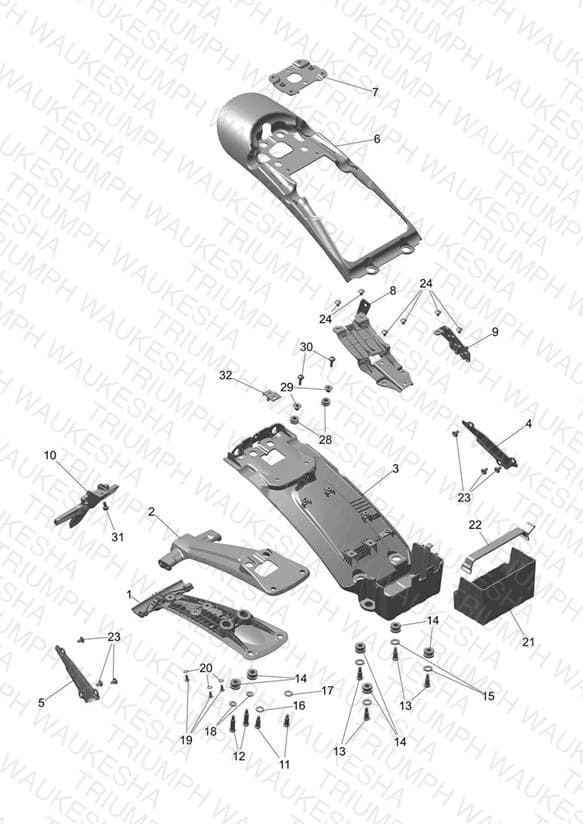

Rear Mudguard
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA181407 Lower Rear Mudguard | Lower Rear Mudguard | 1 | $43.10 | Available to order | 1 |
| 2 | TA181406 Upper Rear Mudguard | Upper Rear Mudguard | 1 | $17.34 | Available to order | 1 |
| 3 | TA181405 Undertray | Undertray | 1 | $34.92 | Available to order | 1 |
| 4 | TA181444 Cover, Frame, LH | Cover, Frame, LH | 1 | $3.05 | Available to order | 1 |
| 5 | TA181445 Cover, Frame, RH | Cover, Frame, RH | 1 | $3.05 | Available to order | 1 |
| 6 | 56TAD7AZ Seat Cowl, Matt Silver Ice | Seat Cowl, Matt Silver Ice | 1 | $64.35 | Available to order | 1 |
| 7 | TA181436 Bracket, Fender | Bracket, Fender | 1 | $12.29 | Available to order | 1 |
| 8 | TA111034 Bracket, Cannister | Bracket, Cannister | 1 | $11.74 | Available to order | 1 |
| 9 | TA113801 Bracket, Relay | Bracket, Relay | 1 | $3.98 | Available to order | 1 |
| 10 | TA181426 Structure, Plate | Structure, Plate | 1 | $18.03 | Backorder — Late August 2026 | 1 |
| 11 | LBU00205 Screw, Btn Hd Step, M6 x 1 | Screw, Btn Hd Step, M6 x 1 | 2 | $1.93 | Available to order | 2 |
| 12 | LBU00206 Screw, Btn Hd Step, M6 x 1 | Screw, Btn Hd Step, M6 x 1 | 2 | $2.49 | Available to order | 2 |
| 13 | LBU00208 Screw, Btn Hd, M6 x 1 | Screw, Btn Hd, M6 x 1 | 4 | $1.79 | Available to order | 4 |
| 14 | JG171022 Grommet, Tank Mounting Rear | Grommet, Tank Mounting Rear | 6 | $1.13 | Available to order | 6 |
| 15 | 39258811 Plain Washer | Plain Washer | 6 | $0.40 | Available to order | 6 |
| 16 | KDAB1018 Washer, Plain, Small | Washer, Plain, Small | 2 | $0.10 | Available to order | 2 |
| 17 | JZ232805 Foam | Foam Not Illustrated | 2 | $0.26 | Available to order | 2 |
| 19 | LAC00215 Bolt, Socket, M5 x 0.8 | Bolt, Socket, M5 x 0.8 | 3 | $0.46 | Available to order | 3 |
| 20 | KDBB0512 Plain Washer | Plain Washer | 3 | $0.10 | Available to order | 3 |
| 21 | TA181313 Damper, Battery | Damper, Battery | 1 | $15.49 | Available to order | 1 |
| 22 | JL113825 Strap | Strap | 1 | $3.29 | Available to order | 1 |
| 23 | JG181259 Rivet, Snap | Rivet, Snap | 6 | $0.91 | Available to order | 6 |
| 24 | KBUA0614 Screw, Truss, M6 x 1 | Screw, Truss, M6 x 1 | 6 | $0.34 | Available to order | 6 |
| 28 | JP181279 Grommet | Grommet | 2 | $0.34 | Available to order | 2 |
| 29 | JP181280 Collar | Collar | 2 | $0.67 | Available to order | 2 |
| 30 | LBU00190 Screw, Btn Hd, M6 x 1 | Screw, Btn Hd, M6 x 1 | 2 | $0.91 | Out of Stock | Notify Me |
| 31 | KAED0612 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 | 1 | $0.22 | Available to order | 1 |
