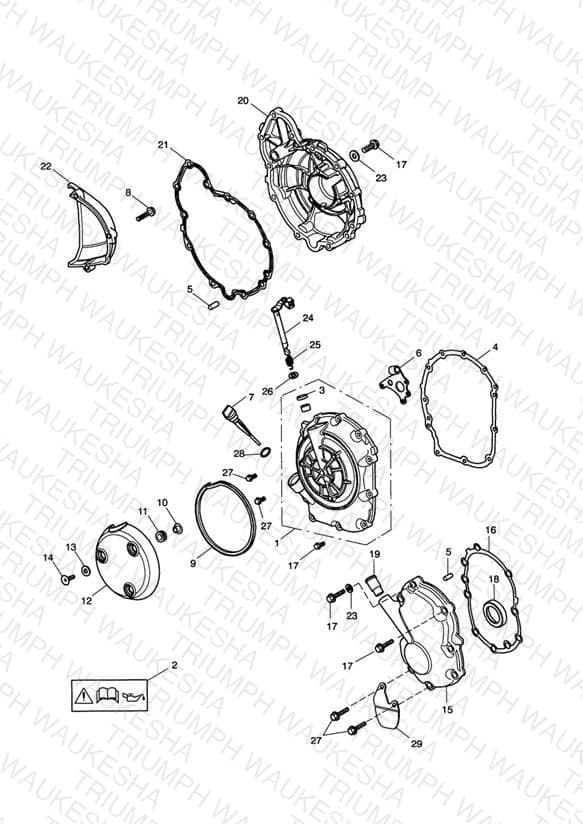

Engine Covers > Vin 210261
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1261230 Clutch cover assembly | Clutch cover assembly PART NO LONGER AVAILABLE | 1 | $210.22 | Obsolete | View Details |
| 2 | T3900302 Label, Oil & Filter | Label, Oil & Filter | 1 | $5.69 | Available to order | 1 |
| 3 | T3600095 Dust Seal | Dust Seal | 1 | $2.25 | Available to order | 1 |
| 4 | T1261093 Gasket, Clutch cover | Gasket, Clutch cover | 1 | $23.35 | Out of Stock | Notify Me |
| 5 | T3000005 Dowel, Dia 6 x 16.5 | Dowel, Dia 6 x 16.5 | 3 | $1.13 | Available to order | 3 |
| 6 | T1170649 Bracket, Clutch Cable | Bracket, Clutch Cable 201641 > | 1 | $13.00 | Obsolete | View Details |
| 6 | T1170634 Bracket | Bracket > 201640 | 1 | $13.52 | Obsolete | View Details |
| 7 | T1261123 Filler Cap & Dipstick | Filler Cap & Dipstick | 1 | $16.66 | Backorder — Late August 2026 | 1 |
| 8 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv » 161317 | 3 | $4.55 | Available to order | 3 |
| 8 | T3205083 Bolt, HHF, LGHTD, M6 x 28, Slv | Bolt, HHF, LGHTD, M6 x 28, Slv 161318 » M6 x 20mm | 3 | $2.48 | Available to order | 3 |
| 9 | T1261151 Seal | Seal | 1 | $22.82 | Available to order | 1 |
| 10 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 3 | $5.78 | Available to order | 3 |
| 11 | T3020050 Grommet | Grommet | 3 | $5.14 | Available to order | 3 |
| 12 | T1261185 Plate, Sound Supression, Clutch | Plate, Sound Supression, Clutch | 1 | $100.76 | Available to order | 1 |
| 13 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 M6 | 3 | $1.21 | Available to order | 3 |
| 14 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv M6 x 22mm | 3 | $3.39 | Available to order | 3 |
| 15 | T1261220 Breather Cover | Breather Cover | 1 | $119.76 | Available to order | 1 |
| 16 | T1261094 Gasket, Breather Cover | Gasket, Breather Cover | 1 | $11.56 | Available to order | 1 |
| 17 | T3331102 Bolt, HHF, M6 X 25, S/S | Bolt, HHF, M6 X 25, S/S ** Part No Longer Available ** | 28 | $1.74 | Obsolete | View Details |
| 18 | T3600242 Oil Seal | Oil Seal | 1 | $49.41 | Available to order | 1 |
| 19 | 1260480-T0301 Fitting, LH, Crankshaft Cover | Fitting, LH, Crankshaft Cover | 1 | $1.32 | Obsolete | View Details |
| 20 | T1261400 Alternator cover | Alternator cover | 1 | $95.04 | Available to order | 1 |
| 21 | T1261092 Gasket, Alternator Cover | Gasket, Alternator Cover | 1 | $22.73 | Obsolete | View Details |
| 22 | T1261090 Sprocket cover | Sprocket cover PART NO LONGER AVAILABLE | 1 | $30.28 | Obsolete | View Details |
| 23 | T3550542 Washer, Cu, OD12.5 x Id6.4 | Washer, Cu, OD12.5 x Id6.4 | 2 | $1.05 | Available to order | 2 |
| 24 | T1170641 Lifter Arm Assy | Lifter Arm Assy | 1 | $58.68 | Obsolete | View Details |
| 24 | T1170635 Arm assembly | Arm assembly > 201640 | 1 | $75.11 | Out of Stock | Notify Me |
| 25 | T1170234 Return Spring | Return Spring | 1 | $5.88 | Available to order | 1 |
| 26 | T3555014 Washer, 13 x 18 x 1 | Washer, 13 x 18 x 1 | 1 | $1.27 | Available to order | 1 |
| 27 | T3202030 Bolt, RHHF, Domed, M6 x 20 | Bolt, RHHF, Domed, M6 x 20 » 161317 M6 x 28mm | 4 | $1.22 | Obsolete | View Details |
| 28 | T3600163 O Ring, ID 19 x 3 | O Ring, ID 19 x 3 | 1 | $12.61 | Available to order | 1 |
| 29 | T1261195 Cover, Oil Pressure Switch | Cover, Oil Pressure Switch | 1 | $51.31 | Available to order | 1 |
