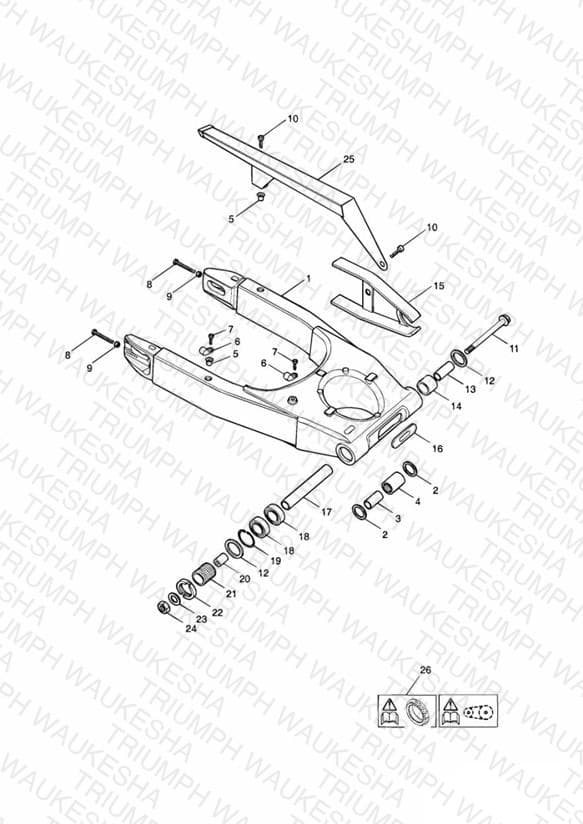

Swinging Arm
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2054005 Swinging arm assembly | Swinging arm assembly Includes bearings etc - items 2, 4, 5, 12, 14, 18 & 19 | 1 | $934.34 | Obsolete | View Details |
| 2 | T3600066 Oil Seal, 24 17 5 | Oil Seal, 24 17 5 | 2 | $8.53 | Available to order | 2 |
| 3 | T2050019 Sleeve | Sleeve | 1 | $40.22 | Available to order | 1 |
| 4 | T3800152 Needle bearing | Needle bearing | 1 | $37.15 | Available to order | 1 |
| 5 | T3350210 Threaded Insert, M6, Open Ended | Threaded Insert, M6, Open Ended | 2 | $1.62 | Available to order | 2 |
| 6 | T3700191 P Clip, ID 10mm | P Clip, ID 10mm | 2 | $3.24 | Available to order | 2 |
| 7 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 2 | $2.63 | Available to order | 2 |
| 8 | T3203204 Screw, H/Hd, M8 x 55, Slv | Screw, H/Hd, M8 x 55, Slv | 2 | $2.34 | Available to order | 2 |
| 9 | T3350303 Nut, M8, Silver | Nut, M8, Silver | 2 | $0.81 | Backorder — Early August 2026 | 2 |
| 10 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 2 | $3.39 | Available to order | 2 |
| 11 | T2054050 Spindle | Spindle | 1 | $75.11 | Available to order | 1 |
| 12 | T3600044 Oil Seal, 35 25 4 | Oil Seal, 35 25 4 | 2 | $10.44 | Available to order | 2 |
| 13 | T2054344 Sleeve, Ground, 25 x 17 x 37 | Sleeve, Ground, 25 x 17 x 37 | 1 | $13.21 | Available to order | 1 |
| 14 | T3800014 Roller bearing | Roller bearing | 1 | $14.32 | Available to order | 1 |
| 15 | T2058300 Rubbing Strip | Rubbing Strip | 1 | $52.29 | Out of Stock | Notify Me |
| 16 | T2057380 Grommet | Grommet | 1 | $1.94 | Obsolete | View Details |
| 17 | T2054056 Spacer | Spacer | 1 | $43.77 | Obsolete | View Details |
| 18 | T3800506 Bearing, Ball, 17 x 35 x 10 | Bearing, Ball, 17 x 35 x 10 | 2 | $19.29 | Available to order | 2 |
| 19 | T3500204 Circlip, Int, 35 x 1.5 | Circlip, Int, 35 x 1.5 | 1 | $0.97 | Available to order | 1 |
| 20 | T2054063 Spacer, 25 x 17 x 8.5 | Spacer, 25 x 17 x 8.5 | 1 | $8.01 | Available to order | 1 |
| 21 | T2054058 Collar | Collar | 1 | $33.82 | Obsolete | View Details |
| 22 | T2054059 Lock ring | Lock ring | 1 | $35.63 | Obsolete | View Details |
| 23 | T3555032 Washer, 17 x 30 x 3 | Washer, 17 x 30 x 3 | 1 | $3.17 | Available to order | 1 |
| 24 | T3350155 Locknut, Thin, M16 | Locknut, Thin, M16 | 1 | $9.41 | Available to order | 1 |
| 25 | T2058069 Chainguard | Chainguard | 1 | $72.26 | Out of Stock | Notify Me |
| 26 | T3900092 Label, Chain & Tyres | Label, Chain & Tyres | 1 | $5.69 | Available to order | 1 |
