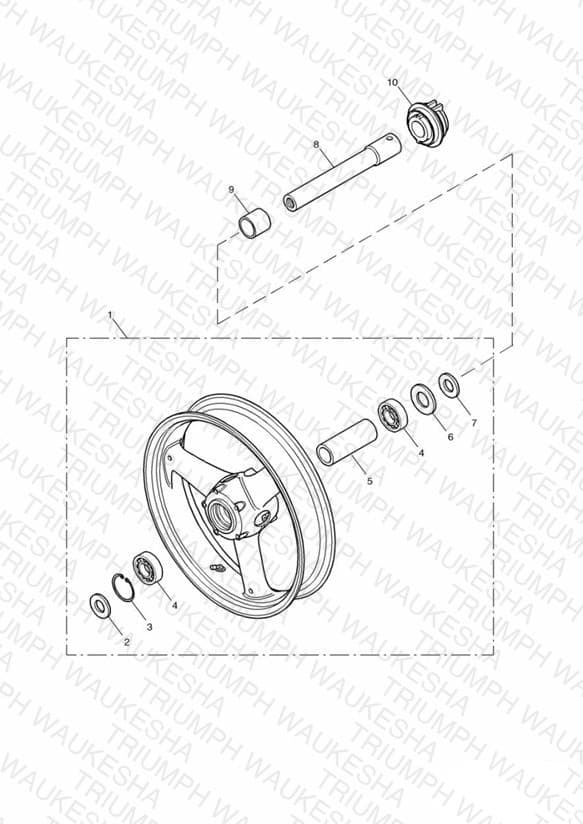

Front Wheel
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2000244 Wheel assembly | Wheel assembly 3.5 X 17 Black | 1 | $732.59 | Obsolete | View Details |
| 2 | T3600703 Oil Seal, 30 42 6 | Oil Seal, 30 42 6 | 1 | $12.38 | Available to order | 1 |
| 3 | T3500401 Circlip, Int Dia 42 | Circlip, Int Dia 42 | 1 | $16.04 | Available to order | 1 |
| 4 | T3800702 Bearing Ball, 20 42 12 | Bearing Ball, 20 42 12 | 2 | $38.50 | Available to order | 2 |
| 5 | T2000247 Spacer | Spacer | 1 | $39.13 | Obsolete | View Details |
| 6 | T2000246 Drive ring | Drive ring | 1 | $17.71 | Obsolete | View Details |
| 7 | T3600043 Oil seal | Oil seal | 1 | $11.22 | Available to order | 1 |
| 8 | T2000214 Spindle | Spindle | 1 | $78.86 | Obsolete | View Details |
| 9 | T2001422 Spacer, 30 OD, 20.2 ID | Spacer, 30 OD, 20.2 ID | 1 | $7.18 | Available to order | 1 |
| 10 | T2001110 Sensor | Sensor | 1 | $249.05 | Available to order | 1 |
