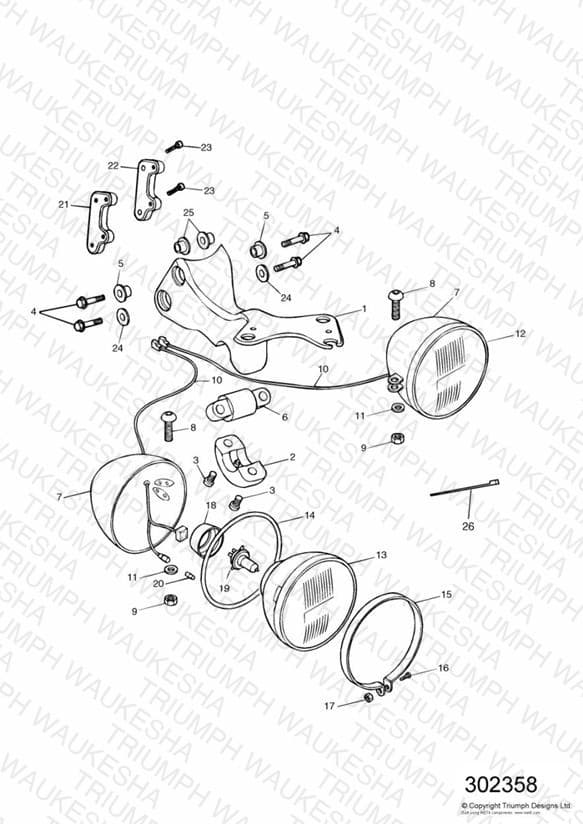

Headlight Assembly
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2700585 Support bracket | Support bracket * PART NO LONGER AVAILABLE * | 1 | $89.89 | Obsolete | View Details |
| 2 | T2700545 Headlight Clamp | Headlight Clamp | 1 | $33.74 | Available to order | 1 |
| 3 | T3050175 Kit, 4 x Screw M8 x 1.25 x 30 Slv | Kit, 4 x Screw M8 x 1.25 x 30 Slv | 2 | $8.46 | Available to order | 2 |
| 4 | T3203025 Bolt, RHHF, Domed, M6 x 25, S/S | Bolt, RHHF, Domed, M6 x 25, S/S | 4 | $2.10 | Available to order | 4 |
| 5 | T3010025 Flanged sleeve | Flanged sleeve | 2 | $5.02 | Available to order | 2 |
| 6 | T2700374 Pivot | Pivot | 1 | $46.23 | Obsolete | View Details |
| 7 | T2700634 Headlight Bowl | Headlight Bowl | 2 | $98.85 | Obsolete | View Details |
| 8 | T3330378 Screw, But/Hd, SKT, M10 x 1.5 x 40, SS | Screw, But/Hd, SKT, M10 x 1.5 x 40, SS | 2 | $12.04 | Available to order | 2 |
| 9 | T3350056 Locknut, Flgd, M10 | Locknut, Flgd, M10 | 2 | $9.41 | Available to order | 2 |
| 10 | T2500686 Subharness, Headlight | Subharness, Headlight | 2 | $26.56 | Available to order | 2 |
| 11 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv | 2 | $2.00 | Available to order | 2 |
| 12 | T2700535 Headlight Replaced by T2700539 — Headlight | Headlight LH LH dip | 1 | $129.58 | Unavailable | View Details |
| 12 | T2700537 Headlight | Headlight LH RH dip DE,SE,BR,IT,ES,PT,GR,CH,NL,FR,AR | 1 | $129.58 | Obsolete | View Details |
| 12 | T2700539 Headlight | Headlight Symmetrical dip US and CA | 1 | $119.52 | Obsolete | View Details |
| 13 | T2700536 Headlight | Headlight RH LH dip | 1 | $129.58 | Obsolete | View Details |
| 13 | T2700538 Headlight | Headlight RH RH dip DE,SE,BR,IT,ES,PT,GR,CH,NL,FR,AR | 1 | $150.18 | Backorder — Late August 2026 | 1 |
| 14 | T2700559 Ring support | Ring support | 2 | $8.09 | Available to order | 2 |
| 15 | T2700560 Headlight rim | Headlight rim | 2 | $80.81 | Available to order | 2 |
| 16 | T3330585 Screw, M4 x 30 | Screw, M4 x 30 M4 | 2 | $1.62 | Available to order | 2 |
| 17 | T3350069 Nut, M4 | Nut, M4 | 2 | $1.13 | Available to order | 2 |
| 18 | T2700478 Protective Boot | Protective Boot | 2 | $3.33 | Available to order | 2 |
| 19 | T2700001 Bulb, H4 60/55W, 12V, Type 1, Clear | Bulb, H4 60/55W, 12V, Type 1, Clear Heavy duty | 2 | $17.69 | Available to order | 2 |
| 20 | T2700210 Bulb, Parking Lamp, 12V 4W | Bulb, Parking Lamp, 12V 4W 4W | 2 | $4.12 | Available to order | 2 |
| 21 | T2700546 Adaptor | Adaptor RH | 1 | $21.70 | Obsolete | View Details |
| 22 | T2700547 Adaptor | Adaptor LH | 1 | $22.79 | Obsolete | View Details |
| 23 | 3200124-T0301 Bolt | Bolt M6 x 40mm | 2 | $1.02 | Obsolete | View Details |
| 25 | T3010026 Flanged sleeve | Flanged sleeve | 2 | $5.02 | Available to order | 2 |
| 26 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long Headlight harness | 1 | $0.89 | Available to order | 1 |
