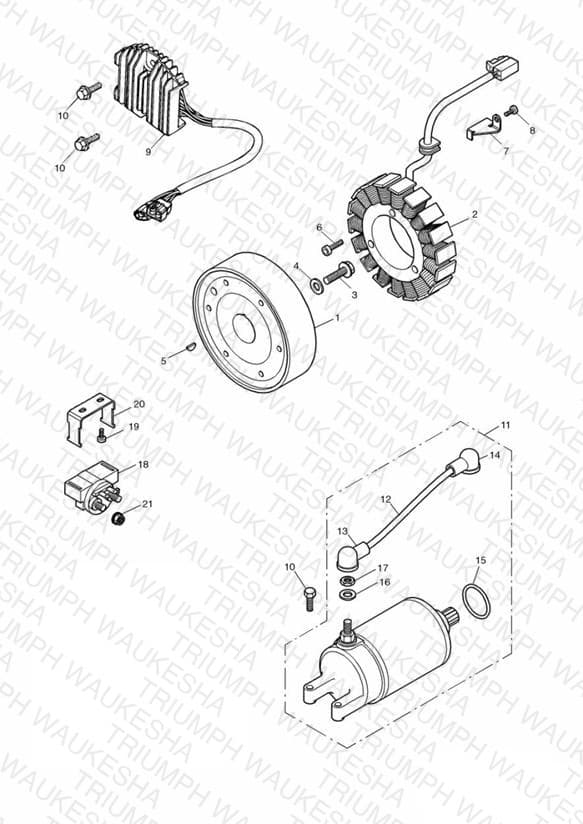

Alternator/Starter » 171120
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1300149 Rotor, Alternator | Rotor, Alternator | 1 | $977.00 | Out of Stock | Notify Me |
| 2 | T1300148 Kit, Alternator | Kit, Alternator Part No Longer Available | 1 | $810.44 | Obsolete | View Details |
| 3 | T3330836 Bolt, Cap/Hd, M12 x 30, Raw | Bolt, Cap/Hd, M12 x 30, Raw | 1 | $7.22 | Available to order | 1 |
| 4 | T3550846 Washer, M12 x 30 x 8 | Washer, M12 x 30 x 8 | 1 | $11.03 | Available to order | 1 |
| 5 | T1300895 Key, Woodruff | Key, Woodruff | 1 | $7.77 | Available to order | 1 |
| 6 | T3051135 Screw, Cap/Hd, M6 x 30, Enc | Screw, Cap/Hd, M6 x 30, Enc | 3 | $1.06 | Available to order | 3 |
| 7 | T1261082 Plate | Plate | 1 | $10.26 | Obsolete | View Details |
| 8 | T3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw | Screw, Cap/Hd, M6 x 10, Enc, Raw | 1 | $1.27 | Available to order | 1 |
| 9 | T1308463 Regulator Rectifier Spares Kit | Regulator Rectifier Spares Kit | 1 | $448.88 | Available to order | 1 |
| 10 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 4 | $2.46 | Available to order | 4 |
| 11 | T1310805 Starter motor | Starter motor | 1 | $489.69 | Unavailable | View Details |
| 12 | T1310808 Wire lead | Wire lead | 1 | $56.27 | Obsolete | View Details |
| 13 | T1310809 Boot cover | Boot cover | 1 | $1.81 | Obsolete | View Details |
| 14 | T1310807 Boot cover | Boot cover | 1 | $1.81 | Obsolete | View Details |
| 15 | T3600115 O Ring | O Ring | 1 | $3.39 | Backorder — Mid September 2026 | 1 |
| 16 | 3550018-T0301 Spring Washer | Spring Washer | 1 | $0.82 | Obsolete | View Details |
| 17 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 1 | $0.94 | Available to order | 1 |
| 18 | T1310008 Starter Solenoid Assy | Starter Solenoid Assy | 1 | $73.17 | Available to order | 1 |
| 19 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 1 | $0.97 | Available to order | 1 |
| 20 | T1310038 Starter Solenoid, Bracket | Starter Solenoid, Bracket | 1 | $4.01 | Backorder — Late August 2026 | 1 |
| 21 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 2 | $0.67 | Available to order | 2 |
| 22 | 1310009-T0301 Terminal Kit, Starter Solenoid | Terminal Kit, Starter Solenoid Not Illustrated | 1 | $12.63 | Backorder — Late August 2026 | 1 |
