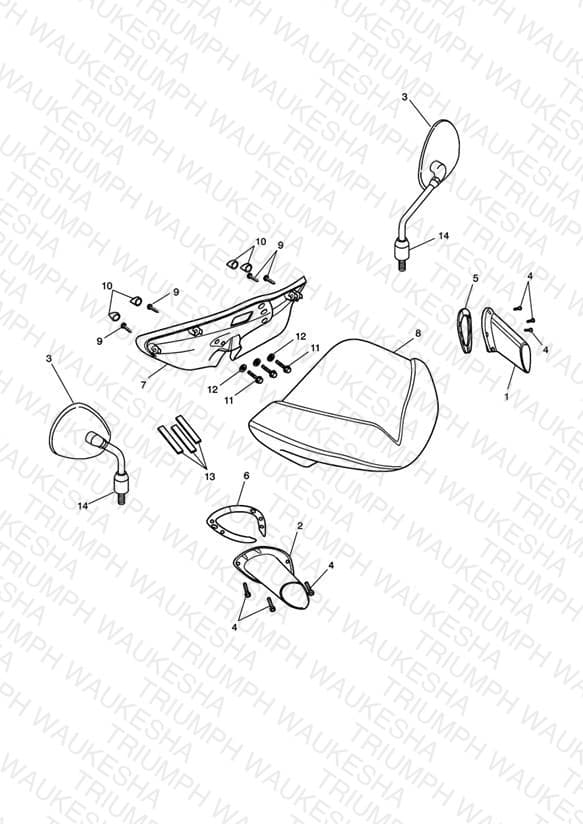

Bodywork - Cockpit and Mirrors
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2303815-JO Duct, Air Intake, LH, Blue | Duct, Air Intake, LH, Blue Neon Blue 210262 > 239862 | 1 | $61.81 | Obsolete | View Details |
| 1 | T2303815-PG Duct intake | Duct intake LH Jet Black | 1 | $129.00 | Backorder — Late August 2026 | 1 |
| 1 | T2303815-HG Duct intake | Duct intake LH Roulette Green > 210261 | 1 | $70.73 | Obsolete | View Details |
| 1 | T2303815-EE Duct intake | Duct intake » 186150 LH Tangerine Orange | 1 | $70.73 | Obsolete | View Details |
| 1 | T2303815-CM Duct, Air Intake, LH, Red | Duct, Air Intake, LH, Red Tornado Red, 239863 > | 1 | $71.80 | Obsolete | View Details |
| 1 | T2303815-FA Duct intake | Duct intake Racing Yellow 186151 » 210261 | 1 | $64.16 | Obsolete | View Details |
| 2 | T2303816-JO Duct, Air Intake, RH, Blue | Duct, Air Intake, RH, Blue Neon Blue 210262 > 239862 | 1 | $61.81 | Obsolete | View Details |
| 2 | T2303816-PG Duct intake | Duct intake RH Jet Black | 1 | $70.73 | Obsolete | View Details |
| 2 | T2303816-HG Duct intake | Duct intake RH Roulette Green > 210261 | 1 | $70.73 | Obsolete | View Details |
| 2 | T2303816-EE Duct intake | Duct intake » 186150 RH Tangerine Orange | 1 | $63.26 | Obsolete | View Details |
| 2 | T2303816-CM Duct, Air Intake, RH, Red | Duct, Air Intake, RH, Red Tornado Red, 239863 > | 1 | $71.80 | Obsolete | View Details |
| 2 | T2303816-FA Duct intake | Duct intake Racing Yellow 186151 » 210261 | 1 | $69.97 | Obsolete | View Details |
| 3 | T2300537-P Mirror Assy | Mirror Assy | 2 | $134.99 | Available to order | 2 |
| 4 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv » 161317 | 6 | $5.30 | Available to order | 6 |
| 4 | T3330153 Screw | Screw 161318 » M6 x 20mm Black | 1 | $5.30 | Unavailable | 1 |
| 5 | T2300509 Gasket | Gasket LH | 1 | $8.60 | Obsolete | View Details |
| 6 | T2301509 Gasket | Gasket RH | 1 | $7.82 | Obsolete | View Details |
| 7 | T2300649 Panel infill | Panel infill | 1 | $30.98 | Available to order | 1 |
| 8 | T2301539-JO Flyscreen, Painted, Blue | Flyscreen, Painted, Blue Neon Blue 210262 > 239862 | 1 | $210.00 | Obsolete | View Details |
| 8 | T2301539-PG Flyscreen | Flyscreen Jet Black | 1 | $210.00 | Obsolete | View Details |
| 8 | T2301539-HG Flyscreen | Flyscreen Roulette Green > 210261 | 1 | $215.00 | Obsolete | View Details |
| 8 | T2301539-EE Flyscreen | Flyscreen » 186150 Tangerine Orange | 1 | $210.00 | Obsolete | View Details |
| 8 | T2301539-CM Flyscreen, Painted, Red | Flyscreen, Painted, Red Tornado Red, 239863 > | 1 | $210.00 | Obsolete | View Details |
| 8 | T2301539-FA Flyscreen | Flyscreen Racing Yellow 186151 » 210261 | 1 | $210.00 | Obsolete | View Details |
| 9 | T3330396 Screw, S/Tap, Tx, 5 x 13 | Screw, S/Tap, Tx, 5 x 13 | 4 | $2.17 | Available to order | 4 |
| 10 | T2300584 Plug | Plug Supplied as pack of 4 | 4 | $6.55 | Available to order | 4 |
| 11 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 3 | $3.50 | Available to order | 3 |
| 12 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 3 | $1.21 | Available to order | 3 |
| 13 | T3660114 Foam seal | Foam seal | — | $5.02 | Available to order | 1 |
| 14 | T2300595 Knockback Cover, Mirror | Knockback Cover, Mirror | 2 | $7.87 | Available to order | 2 |
