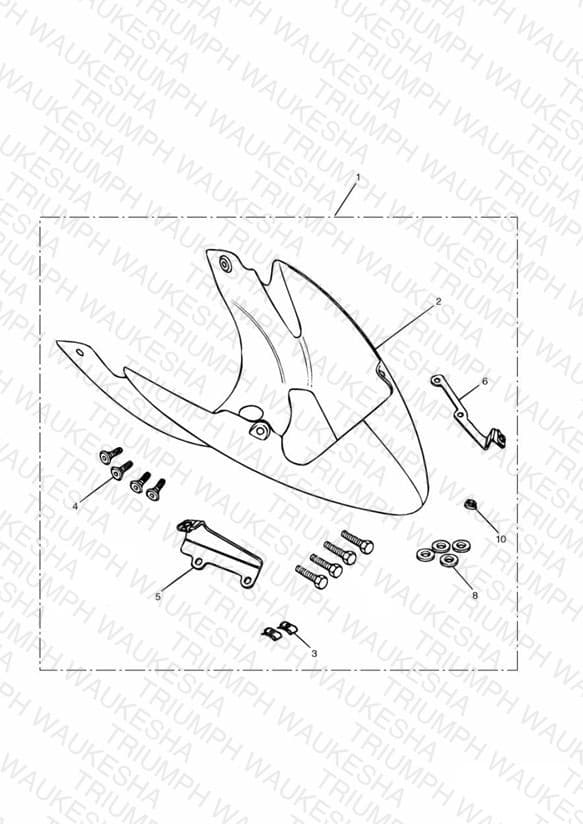

Belly Pan Kit
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9748009-PG Kit belly pan | Kit belly pan Jet Black | 1 | $315.00 | Obsolete | View Details |
| 1 | A9748009-HG Kit belly pan | Kit belly pan Roulette Green | 1 | $315.00 | Obsolete | View Details |
| 1 | A9748009-EE Kit belly pan | Kit belly pan Tangerine | 1 | $315.00 | Obsolete | View Details |
| 1 | A9748009-FA BELLY PAN KIT, RACING YELLOW | BELLY PAN KIT, RACING YELLOW Racing Yellow | 1 | $315.00 | Obsolete | View Details |
| 2 | A9740021-PG Belly panel | Belly panel Jet Black | 1 | $315.00 | Obsolete | View Details |
| 2 | A9740021-HG Belly panel | Belly panel Roulette Green | 1 | $315.00 | Obsolete | View Details |
| 2 | A9740021-EE Belly panel | Belly panel Tangerine | 1 | $315.00 | Obsolete | View Details |
| 2 | A9740021-FA Belly Pan, Colour, Racing Yellow | Belly Pan, Colour, Racing Yellow Racing Yellow | 1 | $315.00 | Obsolete | View Details |
| 3 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 2 | $4.92 | Backorder — Early August 2026 | 2 |
| 4 | T3330848 Bolt, But/Hd, M6 x 21, Shld, Slv | Bolt, But/Hd, M6 x 21, Shld, Slv | 4 | $5.88 | Available to order | 4 |
| 5 | A9750127 Bracket rh | Bracket rh | 1 | $20.52 | Available to order | 1 |
| 6 | A9750128 Bracket lh | Bracket lh | 1 | $20.52 | Backorder — Mid August 2026 | 1 |
| 8 | T3550098 Washer, Nylon, 11.2 x 18 x 1.2 | Washer, Nylon, 11.2 x 18 x 1.2 | 4 | $1.27 | Available to order | 4 |
| 10 | T3450094 Grommet, Heat Resisting | Grommet, Heat Resisting - Part No Longer Available | 1 | $3.66 | Obsolete | View Details |
