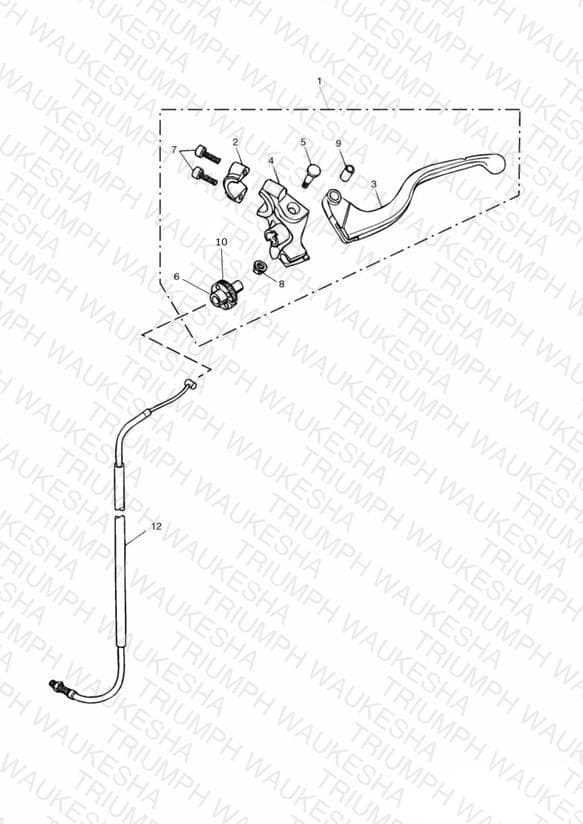

Control Cables 186151 »
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2046583 Lever Assy, Clutch, Adj | Lever Assy, Clutch, Adj | 1 | $115.19 | Available to order | 1 |
| 2 | T2025450 Clamp, Clutch Lever Bracket | Clamp, Clutch Lever Bracket | 1 | $31.94 | Available to order | 1 |
| 3 | T2046511 Clutch Lever | Clutch Lever Non-Adjustable Lever | 1 | $65.49 | Backorder — Late August 2026 | 1 |
| 3 | T2046021 Adjustable Clutch Lever | Adjustable Clutch Lever Adjustable Lever | 1 | $87.92 | Available to order | 1 |
| 4 | T2046527 Clutch Lever Bracket | Clutch Lever Bracket | 1 | $38.96 | Available to order | 1 |
| 5 | T2046524 Pivot Bolt | Pivot Bolt | 1 | $2.63 | Available to order | 1 |
| 6 | T2046520 Adjuster Screw | Adjuster Screw | 1 | $8.53 | Available to order | 1 |
| 7 | T2046522 Bolt, Handlebar Clamp | Bolt, Handlebar Clamp | 2 | $2.00 | Available to order | 2 |
| 8 | T2046521 Nut, Pivot Bolt | Nut, Pivot Bolt | 1 | $1.21 | Available to order | 1 |
| 9 | T2046526 Collar, Clutch Lever | Collar, Clutch Lever | 1 | $3.29 | Available to order | 1 |
| 10 | T3350205 Locknut, M8, Knurled | Locknut, M8, Knurled Part No Longer Available | 1 | $1.43 | Obsolete | View Details |
| 12 | T2040389 Clutch cable | Clutch cable | 1 | $50.28 | Out of Stock | Notify Me |
