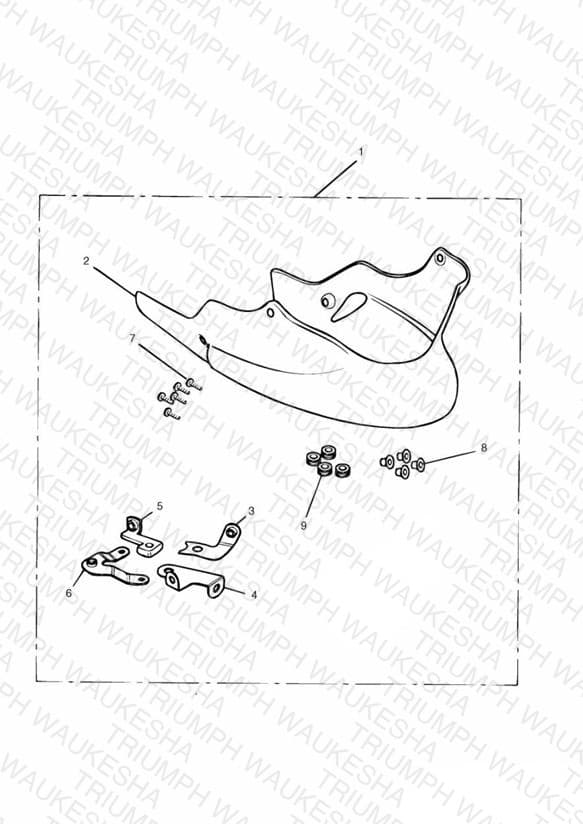

Bellypan Kit
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9708052-PG Kit belly pan | Kit belly pan Jet Black | 1 | $295.00 | Obsolete | View Details |
| 1 | A9708052-CQ Kit belly pan | Kit belly pan Nuclear Red | 1 | $295.00 | Obsolete | View Details |
| 2 | A9701134-PG Belly panel | Belly panel Jet Black | 1 | $295.00 | Obsolete | View Details |
| 2 | A9701134-JO Belly panel | Belly panel Neon Blue | 1 | $300.00 | Obsolete | View Details |
| 2 | A9701134-CQ Belly panel | Belly panel Nuclear Red | 1 | $295.00 | Obsolete | View Details |
| 2 | A9701134-FA Belly panel | Belly panel Racing Yellow | 1 | $295.00 | Obsolete | View Details |
| 2 | A9701134-CM Belly panel | Belly panel Tornado Red | 1 | $295.00 | Obsolete | View Details |
| 3 | A9750202 Bracket lower | Bracket lower LH | 1 | $11.55 | Obsolete | View Details |
| 4 | A9750203 Bracket lower | Bracket lower RH | 1 | $19.44 | Available to order | 1 |
| 5 | T2304920 Bracket, Fairing, Lower, LH | Bracket, Fairing, Lower, LH | 1 | $6.39 | Available to order | 1 |
| 6 | T2304910 Bracket, Fairing, Lower, RH | Bracket, Fairing, Lower, RH | 1 | $5.14 | Obsolete | View Details |
| 7 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 5 | $3.39 | Available to order | 5 |
| 8 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 4 | $5.78 | Available to order | 4 |
| 9 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 4 | $1.91 | Available to order | 4 |
| 11 | T3330054 Screw, Skt, Btn/HD, M8 x 12 S/S | Screw, Skt, Btn/HD, M8 x 12 S/S | 1 | $4.60 | Obsolete | View Details |
