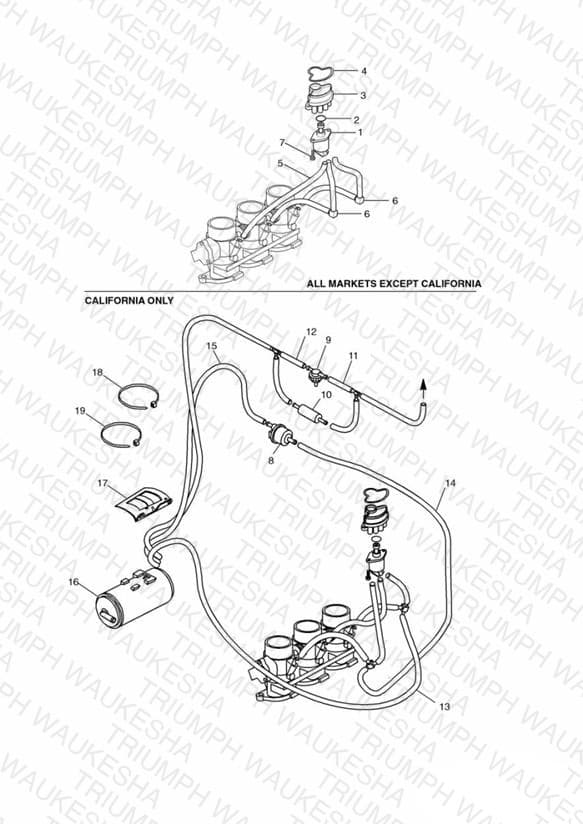

Evaporative Loss Equipment 955cc Engine ENG NO 92746 »
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1240888 Stepper motor | Stepper motor ** PART NO LONGER AVAILABLE ** | 1 | $145.81 | Obsolete | View Details |
| 2 | T3600037 O ring | O ring | 1 | $1.51 | Available to order | 1 |
| 3 | T1241064 Housing, Idle Speed Control Valve | Housing, Idle Speed Control Valve PART NO LONGER AVAILABLE | 1 | $48.08 | Obsolete | View Details |
| 4 | T1241063 Grommet, Idle Speed Control Valve | Grommet, Idle Speed Control Valve | 1 | $9.03 | Available to order | 1 |
| 5 | T1242502 Tube | Tube | 1 | $24.05 | Available to order | 1 |
| 6 | T1242501 Tube | Tube | 2 | $24.05 | Available to order | 2 |
| 7 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 2 | $0.97 | Available to order | 2 |
| 8 | T1240802 Purge Valve, EFI | Purge Valve, EFI | 1 | $58.02 | Unavailable | View Details |
| 9 | T2400125 Valve pressure control | Valve pressure control | 1 | $25.50 | Obsolete | View Details |
| 10 | T3620294 Valve one way | Valve one way | 1 | $39.03 | Obsolete | View Details |
| 11 | T1242509 Tube assembly | Tube assembly | 1 | $21.43 | Obsolete | View Details |
| 12 | T1242510 Tube assembly | Tube assembly | 1 | $21.43 | Obsolete | View Details |
| 13 | T1242507 Tube assembly | Tube assembly | 1 | $23.87 | Obsolete | View Details |
| 14 | T1242508 Tube assembly | Tube assembly | 1 | $23.87 | Obsolete | View Details |
| 15 | T1242511 Tube | Tube | 1 | $16.08 | Obsolete | View Details |
| 16 | T2400160 Carbon Canister | Carbon Canister | 1 | $56.07 | Obsolete | View Details |
| 17 | T2400164 Canister bracket | Canister bracket | 1 | $21.83 | Obsolete | View Details |
| 18 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 2 | $0.95 | Available to order | 2 |
| 19 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
