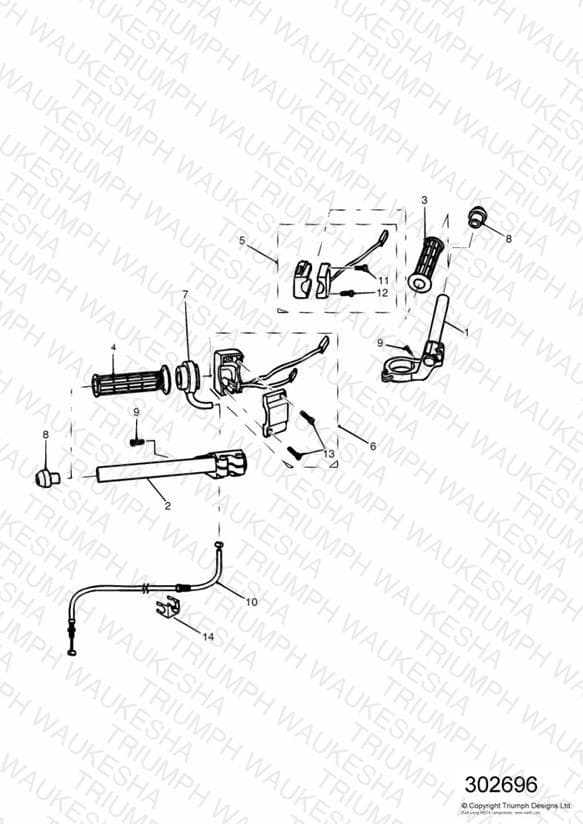

Handlebars and Switches Low Handlebars
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2040709 Handlebars | Handlebars LH Includes item 9 | 1 | $128.15 | Obsolete | View Details |
| 2 | T2040719 Handlebars | Handlebars RH Includes item 9 | 1 | $143.42 | Obsolete | View Details |
| 3 | T2040740 Handlebar Grip, LH | Handlebar Grip, LH LH | 1 | $18.16 | Available to order | 1 |
| 4 | T2040750 Grip | Grip RH | 1 | $18.16 | Available to order | 1 |
| 5 | T2040112 Switch assembly | Switch assembly CA, MY, US, JP - All Vins AU, » 79413 SG, » 110499 LH | 1 | $176.33 | Obsolete | View Details |
| 5 | T2040094 Switch assembly | Switch assembly UK, CH, DE, NL, FR, ES, BR, IT, NZ, ZA GR, AR, HK, PT, SE, CY - All Vins AU, » 79414 SG, » 110550 | 1 | $92.98 | Obsolete | View Details |
| 6 | T2040096 Switch Assy, Rh | Switch Assy, Rh RH | 1 | $184.39 | Available to order | 1 |
| 7 | T2040231 Actuator assembly | Actuator assembly PART NO LONGER AVAILABLE | 1 | $54.41 | Obsolete | View Details |
| 8 | T2040730 Handlebar Weight | Handlebar Weight | 2 | $27.26 | Obsolete | View Details |
| 9 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv » 49166 | 2 | $4.55 | Available to order | 2 |
| 9 | T3205653 Bolt, HHF, Lghtd, M8 x 30, Slv | Bolt, HHF, Lghtd, M8 x 30, Slv 49167 » M8 Lightened | 2 | $1.21 | Available to order | 2 |
| 10 | T2040455 Throttle cable | Throttle cable PART NO LONGER AVAILABLE | 1 | $42.32 | Obsolete | View Details |
| 11 | T3331810 Screw, M5 X 40 | Screw, M5 X 40 M5 x 40mm | 1 | $0.72 | Obsolete | View Details |
| 12 | T3331790 Screw, Pan/Hd, Ph, M5 x 30, Blk | Screw, Pan/Hd, Ph, M5 x 30, Blk M5 x 30mm | 1 | $0.89 | Available to order | 1 |
| 13 | T3331800 Screw, M5 X 22 | Screw, M5 X 22 M5 x 22mm | 2 | $1.21 | Available to order | 2 |
| 14 | T1240941 Clip | Clip | 1 | $15.40 | Available to order | 1 |
