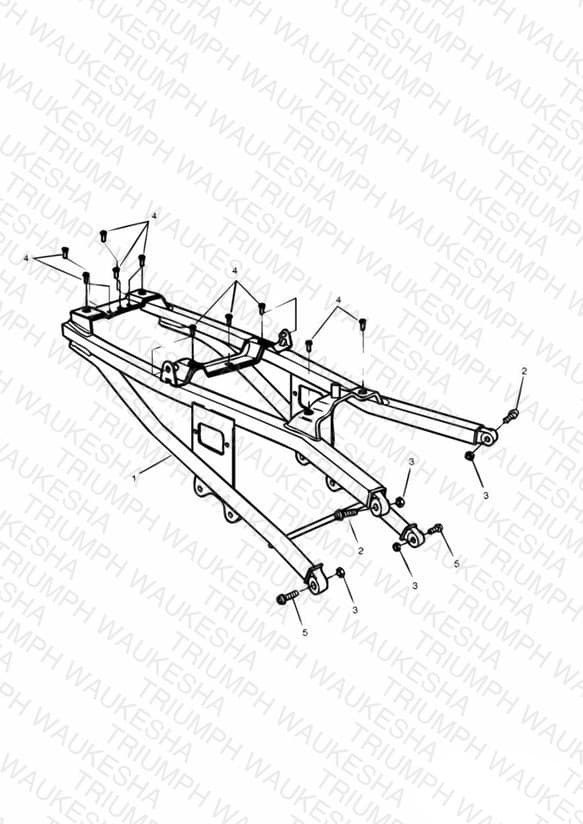

Rear Sub-Frame and Fittings
Parts (5)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2072605 Rear frame | Rear frame » 117792 | 1 | $642.41 | Obsolete | View Details |
| 2 | T3150270 Bolt, H/HD, M10 x 40 | Bolt, H/HD, M10 x 40 M10 x 45mm | 2 | $3.92 | Obsolete | View Details |
| 3 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 4 | $4.16 | Available to order | 4 |
| 4 | T3350210 Threaded Insert, M6, Open Ended | Threaded Insert, M6, Open Ended | 14 | $1.62 | Available to order | 14 |
| 5 | T3331921 Screw, Tx, Flgd, M10 x 47, Slv | Screw, Tx, Flgd, M10 x 47, Slv | 2 | $4.65 | Obsolete | View Details |
