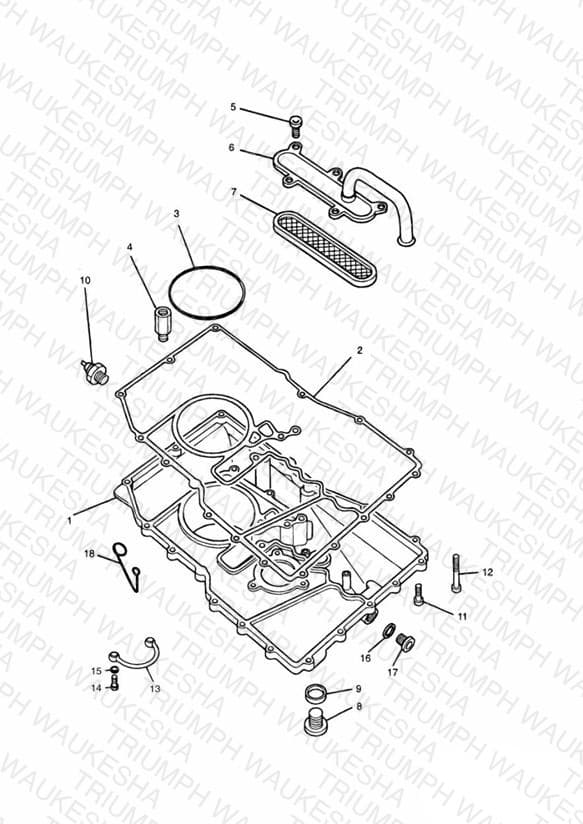

Sump
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1230177 Sump kit | Sump kit » ENG NO 46635 | 1 | $339.26 | Obsolete | View Details |
| 1 | T1230178 Sump kit | Sump kit ENG NO 46636 » | 1 | $402.06 | Obsolete | View Details |
| 2 | T1230056 Sump Gasket, 3 Cyl | Sump Gasket, 3 Cyl | 1 | $18.54 | Available to order | 1 |
| 3 | 3600025-T0301 O ring | O ring | 1 | $1.91 | Available to order | 1 |
| 4 | T1210060 Relief valve | Relief valve | 1 | $29.75 | Out of Stock | Notify Me |
| 5 | T3331040 Screw, TPT, Pan/Hd, M6 x 12, Slv | Screw, TPT, Pan/Hd, M6 x 12, Slv | 5 | $2.53 | Available to order | 5 |
| 6 | T1230066 Cover assembly | Cover assembly | 1 | $4.74 | Out of Stock | Notify Me |
| 7 | 1230060-T0301 Strainer oil | Strainer oil | 1 | $38.57 | Obsolete | View Details |
| 8 | 1230030-T0301 Drain plug | Drain plug » 32090 M22 | 1 | $11.49 | Obsolete | View Details |
| 8 | T3458989 Sump Plug, M14 x 1.5, Blk | Sump Plug, M14 x 1.5, Blk 32091 » M14 | 1 | $5.84 | Available to order | 1 |
| 9 | T3550177 Sealing Washer, M22 | Sealing Washer, M22 » 32090 | 1 | $0.61 | Available to order | 1 |
| 9 | T3551092 Sealing Washer Multipack (25) | Sealing Washer Multipack (25) 32091 » Part only available as Multipack | 1 | $27.55 | Available to order | 1 |
| 10 | T1230540 Oil Pressure Switch | Oil Pressure Switch » ENG NO 33411 | 1 | $34.48 | Available to order | 1 |
| 10 | T1230072 Switch oil pressure | Switch oil pressure ENG NO 33412 » » ENG NO 46635 | 1 | $11.75 | Available to order | 1 |
| 10 | T1230074 Switch oil pressure | Switch oil pressure ENG NO 46636 » | 1 | $32.21 | Available to order | 1 |
| 11 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 15 | $1.13 | Available to order | 15 |
| 12 | T3331299 Screw, Pan/HD, Tx, M6 x 40, Slv | Screw, Pan/HD, Tx, M6 x 40, Slv M6 x 55mm | 2 | $3.93 | Available to order | 2 |
| 13 | 1210480-T0301 Pipe by-pass | Pipe by-pass » 28489 Then deleted | 1 | $37.15 | Obsolete | View Details |
| 14 | T1210241 Banjo Bolt, M14 x 28 | Banjo Bolt, M14 x 28 » 28489 Then deleted | 2 | $13.66 | Available to order | 2 |
| 14 | T1210489 Sump Plug, M14 | Sump Plug, M14 28490 » M14 | 2 | $3.97 | Obsolete | View Details |
| 15 | T3550547 Washer, Cu, OD19 x ID14.2 | Washer, Cu, OD19 x ID14.2 » 28489 | 4 | $4.60 | Available to order | 4 |
| 16 | 3550048-T0301 Sealing washer | Sealing washer M16 | 2 | $1.21 | Available to order | 2 |
| 17 | 3450021-T0301 Plug | Plug M16 * PART NO LONGER AVAILABLE * | 2 | $4.34 | Obsolete | View Details |
| 18 | T2079314 Guide | Guide | 1 | $2.04 | Out of Stock | Notify Me |
