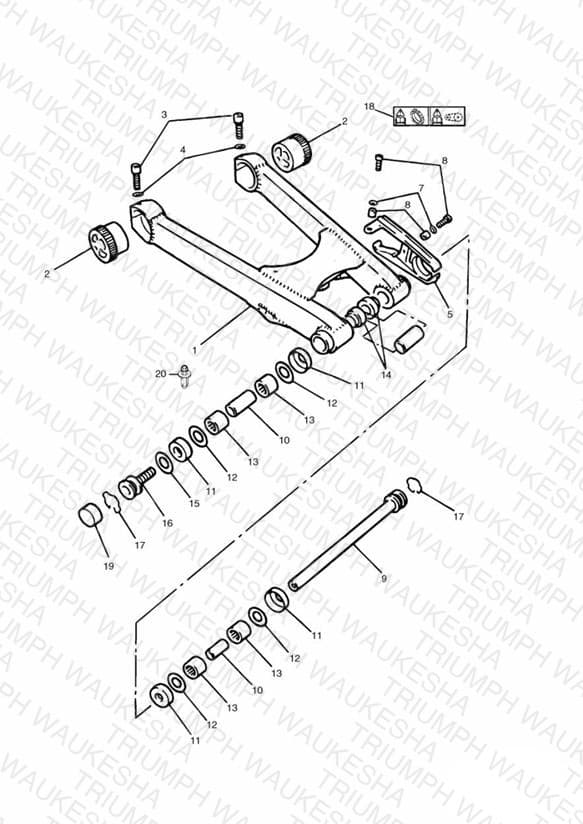

Swinging Arm 900cc Model
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2056835 Swinging arm assembly | Swinging arm assembly Black Includes bearings & bungs | 1 | $1208.37 | Obsolete | View Details |
| 2 | 2010053-T0301 Eccentric Adjuster | Eccentric Adjuster » 29155 Silver | 2 | $33.04 | Obsolete | View Details |
| 2 | T2010054 Eccentric adjuster | Eccentric adjuster 29156 » Black | 2 | $30.13 | Obsolete | View Details |
| 3 | 3050023-T0301 Capscrew | Capscrew » 29155 M10 x 40mm | 2 | $1.89 | Obsolete | View Details |
| 3 | T3050064 Capscrew | Capscrew 29156 » M10 x 40mm Black | 2 | $3.12 | Obsolete | View Details |
| 4 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv | 2 | $2.14 | Available to order | 2 |
| 5 | 2056920-T0301 Rubbing strip | Rubbing strip | 1 | $29.99 | Obsolete | View Details |
| 6 | 3000020-T0301 Spacer | Spacer PART NO LONGER AVAILABLE | 2 | $0.54 | Obsolete | View Details |
| 7 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 2 | $1.50 | Available to order | 2 |
| 8 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 2 | $1.13 | Available to order | 2 |
| 9 | 2056002-T0301 Spindle | Spindle | 1 | $110.55 | Obsolete | View Details |
| 10 | 2056960-T0301 Sleeve | Sleeve PART NO LONGER AVAILABLE | 2 | $29.00 | Obsolete | View Details |
| 11 | T2056008 Thrust Seal | Thrust Seal | 4 | $13.22 | Obsolete | View Details |
| 12 | 2056970-T0301 Shim | Shim PART NO LONGER AVAILABLE | 4 | $2.21 | Obsolete | View Details |
| 13 | T3800014 Roller bearing | Roller bearing | 4 | $14.85 | Available to order | 4 |
| 14 | T2056994 Plug | Plug | 2 | $24.27 | Obsolete | View Details |
| 15 | T3555032 Washer, 17 x 30 x 3 | Washer, 17 x 30 x 3 M14 | 1 | $3.37 | Available to order | 1 |
| 16 | 2056001-T0301 Bolt special | Bolt special » 37993 | 1 | $32.72 | Obsolete | View Details |
| 16 | T2056020 Bolt special | Bolt special 37994 » | 1 | $30.55 | Obsolete | View Details |
| 17 | 3500010-T0301 Retaining ring | Retaining ring | 2 | $2.40 | Available to order | 2 |
| 18 | T3900092 Label, Chain & Tyres | Label, Chain & Tyres » 16921 Drive chain UK, NZ, AU, ZA, GR, CY, HK, MY | 1 | $6.06 | Available to order | 1 |
| 19 | 3450061-T0301 Cap | Cap * PART NO LONGER AVAILABLE * | 2 | $0.75 | Obsolete | View Details |
| 20 | T3350039 Riv nut | Riv nut Hexagonal | — | $5.35 | Out of Stock | Notify Me |
| 20 | T3350042 Riv nut | Riv nut Round | — | $4.05 | Obsolete | View Details |
