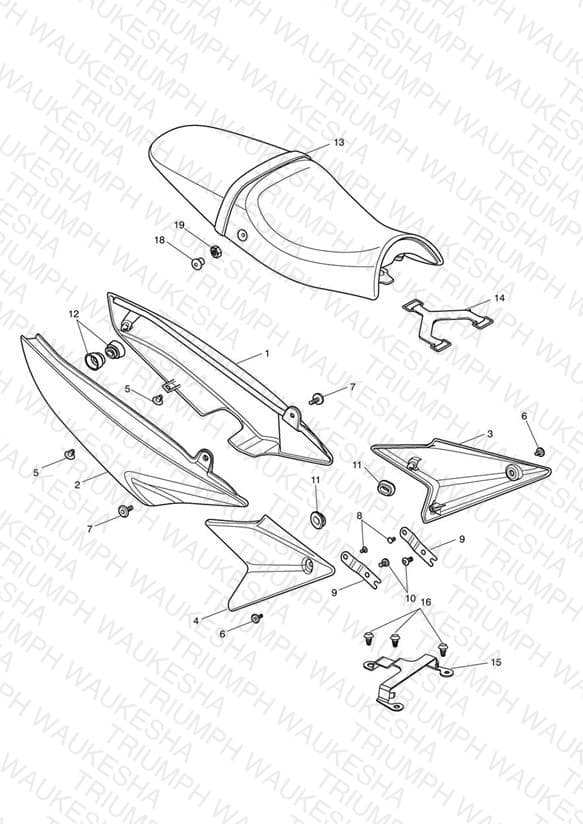

Rear Bodywork & Seat - 333179 >
Parts (44)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2304314-PG Side, Rear, LH | Side, Rear, LH Jet Black | 1 | $220.02 | Obsolete | View Details |
| 1 | T2304314-NF Side, Rear, LH | Side, Rear, LH Fusion White | 1 | $220.02 | Obsolete | View Details |
| 1 | T2304314-EG Side, Rear, LH | Side, Rear, LH Blazing Orange | 1 | $220.02 | Obsolete | View Details |
| 1 | T2304314-PS Side, Rear, LH | Side, Rear, LH Matt Black | 1 | $220.02 | Obsolete | View Details |
| 1 | T2304314-PR Side, Rear, LH | Side, Rear, LH Phantom Black; Special Edition, 15th Anniversary | 1 | $224.82 | Obsolete | View Details |
| 1 | T2304314-HS Side, Rear, LH | Side, Rear, LH Matt Khaki Green 440663 > | 1 | $209.55 | Obsolete | View Details |
| 1 | T2304314-CM Side, Rear, LH | Side, Rear, LH Tornado Red, Special Edition | 1 | $173.80 | Obsolete | View Details |
| 2 | T2304313-PG Side, Rear, RH | Side, Rear, RH Jet Black * PART NO LONGER AVAILABLE * | 1 | $265.80 | Obsolete | View Details |
| 2 | T2304313-NF Side, Rear, RH | Side, Rear, RH Fusion White * PART NO LONGER AVAILABLE * | 1 | $213.40 | Obsolete | View Details |
| 2 | T2304313-EG Side, Rear, RH | Side, Rear, RH Blazing Orange | 1 | $265.80 | Obsolete | View Details |
| 2 | T2304313-PS Side, Rear, RH | Side, Rear, RH Matt Black * PART NO LONGER AVAILABLE * | 1 | $265.80 | Obsolete | View Details |
| 2 | T2304313-PR Side, Rear, RH | Side, Rear, RH Phantom Black; Special Edition, 15th Anniversary - * PART NO LONGER AVAILABLE * | 1 | $254.04 | Obsolete | View Details |
| 2 | T2304313-HS Side, Rear, RH | Side, Rear, RH Matt Khaki Green 440663 > * PART NO LONGER AVAILABLE * | 1 | $220.86 | Obsolete | View Details |
| 2 | T2304313-CM Side, Rear, RH | Side, Rear, RH Tornado Red, Special Edition | 1 | $196.40 | Obsolete | View Details |
| 3 | T2304312-PG Side Infill, LH | Side Infill, LH Jet Black | 1 | $159.27 | Available to order | 1 |
| 3 | T2304312-NF Side Infill, LH | Side Infill, LH Fusion White | 1 | $200.97 | Out of Stock | Notify Me |
| 3 | T2304312-EG Side Infill, LH | Side Infill, LH Blazing Orange - * PART NO LONGER AVAILABLE * | 1 | $200.97 | Out of Stock | Notify Me |
| 3 | T2304312-PS Side Infill, LH | Side Infill, LH Matt Black | 1 | $200.97 | Available to order | 1 |
| 3 | T2304312-PR Side Infill, LH | Side Infill, LH Phantom Black; Special Edition, 15th Anniversary | 1 | $159.27 | Out of Stock | Notify Me |
| 3 | T2304312-HS Side Infill, LH | Side Infill, LH Matt Khaki Green 440663 > | 1 | $159.27 | Out of Stock | Notify Me |
| 3 | T2304312-CM Side Infill, LH | Side Infill, LH Tornado Red, Special Edition | 1 | $200.97 | Backorder — Mid October 2026 | 1 |
| 4 | T2304311-PG Side Infill, RH | Side Infill, RH Jet Black | 1 | $200.97 | Available to order | 1 |
| 4 | T2304311-NF Side Infill, RH | Side Infill, RH Fusion White | 1 | $200.97 | Backorder — Mid October 2026 | 1 |
| 4 | T2304311-EG Side Infill, RH | Side Infill, RH Blazing Orange | 1 | $200.97 | Backorder — Mid October 2026 | 1 |
| 4 | T2304311-PS Side Infill, RH | Side Infill, RH Matt Black | 1 | $200.97 | Out of Stock | Notify Me |
| 4 | T2304311-PR Side Infill, RH | Side Infill, RH Phantom Black; Special Edition, 15th Anniversary | 1 | $157.44 | Out of Stock | Notify Me |
| 4 | T2304311-HS Side Infill, RH | Side Infill, RH Matt Khaki Green 440663 > | 1 | $200.97 | Available to order | 1 |
| 4 | T2304311-CM Side Infill, RH | Side Infill, RH Tornado Red, Special Edition | 1 | $200.97 | Out of Stock | Notify Me |
| 5 | T3701170 Plastic Rivet, Screw Type | Plastic Rivet, Screw Type | 2 | $1.29 | Available to order | 2 |
| 6 | T3331063 Bolt, But/Hd, M5 x 17, Slv | Bolt, But/Hd, M5 x 17, Slv | 2 | $2.31 | Available to order | 2 |
| 7 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 2 | $3.61 | Available to order | 2 |
| 8 | T3450123 Fir Tree, 4.5 x 11, Black | Fir Tree, 4.5 x 11, Black | 2 | $3.42 | Available to order | 2 |
| 9 | T2304213 Bracket, Support, Side Panel | Bracket, Support, Side Panel | 2 | $7.39 | Obsolete | View Details |
| 10 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 2 | $1.04 | Available to order | 2 |
| 11 | T3020029 Grommet, Side Panel | Grommet, Side Panel | 2 | $2.71 | Available to order | 2 |
| 12 | T2300835 Grommet, Side Panel | Grommet, Side Panel | 2 | $2.04 | Available to order | 2 |
| 13 | T2305578 Seat Assy | Seat Assy | 1 | $607.41 | Out of Stock | Notify Me |
| 13 | A9700248 Gel Seat | Gel Seat Special Edition 15th Anniversary | 1 | $287.52 | Obsolete | View Details |
| 14 | T2301636 Strap, Toolkit | Strap, Toolkit | 1 | $11.54 | Available to order | 1 |
| 15 | T2304212 Bracket, Mtg, ECU | Bracket, Mtg, ECU | 1 | $33.54 | Obsolete | View Details |
| 16 | T3450299 Firtree, M6 | Firtree, M6 | 3 | $3.54 | Available to order | 3 |
| 17 | T2300595 Knockback Cover, Mirror | Knockback Cover, Mirror | 1 | $8.37 | Available to order | 1 |
| 18 | T2307379 Machine Boss | Machine Boss | 2 | $17.36 | Available to order | 2 |
| 19 | T2307373 Locking Nut, M10 | Locking Nut, M10 | 2 | $1.61 | Available to order | 2 |
