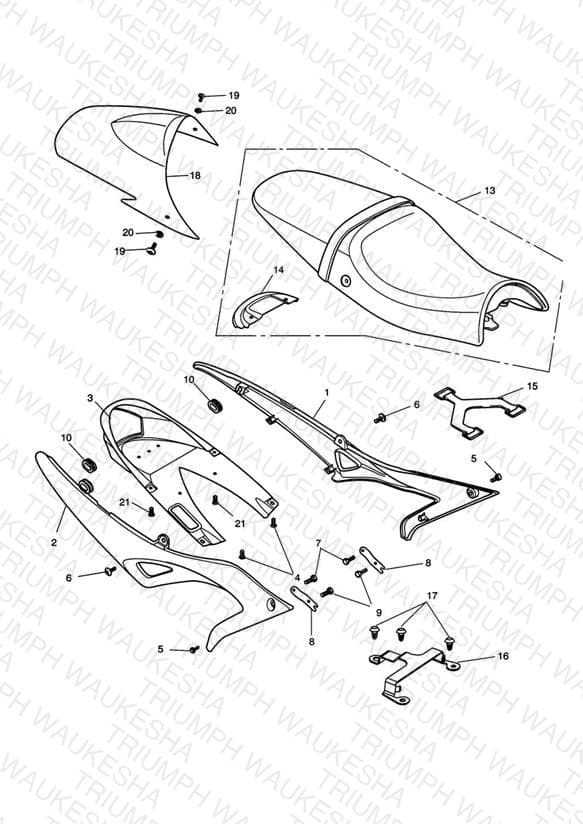

Rear Bodywork & Seat > 333178
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2304206-PG Side, Rear, Lh, Black | Side, Rear, Lh, Black Jet Black | 1 | $346.85 | Available to order | 1 |
| 1 | T2304206-JO Side, Rear, Lh, Blue | Side, Rear, Lh, Blue Neon Blue > 317417 | 1 | $198.07 | Obsolete | View Details |
| 1 | T2304206-FE Side, Rear, Lh, Yellow | Side, Rear, Lh, Yellow Scorched Yellow > 238215 | 1 | $198.07 | Obsolete | View Details |
| 1 | T2304206-FG Side, Rear, LH, Yellow | Side, Rear, LH, Yellow Scorched Yellow 238216 > 281465 | 1 | $227.77 | Obsolete | View Details |
| 1 | T2304206-NF Side, Rear, LH, White | Side, Rear, LH, White Fusion White 241570 > | 1 | $203.72 | Obsolete | View Details |
| 1 | T2304206-HG Side, Rear, LH, Green | Side, Rear, LH, Green Roulette Green 281466 > | 1 | $209.37 | Obsolete | View Details |
| 1 | T2304206-PS Side, Rear, LH, Black | Side, Rear, LH, Black Matt Black 312560 > | 1 | — | Obsolete | View Details |
| 1 | T2304206-JM Side, Rear, LH, Blue | Side, Rear, LH, Blue Sapphire Blue 317418 > | 1 | $234.09 | Obsolete | View Details |
| 2 | T2304201-PG Side, Rear, Rh, Black | Side, Rear, Rh, Black Jet Black | 1 | $252.66 | Out of Stock | Notify Me |
| 2 | T2304201-JO Side, Rear, Rh, Blue | Side, Rear, Rh, Blue Neon Blue > 317417 | 1 | $219.85 | Obsolete | View Details |
| 2 | T2304201-FE Side, Rear, Rh, Yellow | Side, Rear, Rh, Yellow Scorched Yellow > 238215 | 1 | $232.09 | Out of Stock | Notify Me |
| 2 | T2304201-FG Side, Rear, RH, Yellow | Side, Rear, RH, Yellow Scorched Yellow 238216 > 281465 | 1 | $219.85 | Obsolete | View Details |
| 2 | T2304201-NF Side, Rear, RH, White | Side, Rear, RH, White Fusion White 241570 > | 1 | $252.66 | Out of Stock | Notify Me |
| 2 | T2304201-HG Side, Rear, RH, Green | Side, Rear, RH, Green Roulette Green 281466 > | 1 | $209.37 | Obsolete | View Details |
| 2 | T2304201-PS Side, Rear, RH, Black | Side, Rear, RH, Black Matt Black 312560 > | 1 | $209.37 | Obsolete | View Details |
| 2 | T2304201-JM Side, Rear, RH, Blue | Side, Rear, RH, Blue Sapphire Blue 317418 > | 1 | $232.09 | Out of Stock | Notify Me |
| 3 | T2304210 Panel, Undertray | Panel, Undertray | 1 | $124.48 | Available to order | 1 |
| 4 | T3700120 Rivet, Plastic | Rivet, Plastic | 2 | $1.04 | Available to order | 2 |
| 5 | T3331063 Bolt, But/Hd, M5 x 17, Slv | Bolt, But/Hd, M5 x 17, Slv | 2 | $2.31 | Available to order | 2 |
| 6 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 2 | $3.61 | Available to order | 2 |
| 7 | T3450123 Fir Tree, 4.5 x 11, Black | Fir Tree, 4.5 x 11, Black | 2 | $3.42 | Available to order | 2 |
| 8 | T2304213 Bracket, Support, Side Panel | Bracket, Support, Side Panel | 2 | $7.39 | Obsolete | View Details |
| 9 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 2 | $1.04 | Available to order | 2 |
| 10 | T3020029 Grommet, Side Panel | Grommet, Side Panel | 2 | $2.71 | Available to order | 2 |
| 13 | T2304254 Seat Assy | Seat Assy | 1 | $562.07 | Out of Stock | Notify Me |
| 14 | T2304231 Finisher, Seat | Finisher, Seat | 1 | $22.08 | Available to order | 1 |
| 15 | T2301636 Strap, Toolkit | Strap, Toolkit | 1 | $11.54 | Available to order | 1 |
| 16 | T2304212 Bracket, Mtg, ECU | Bracket, Mtg, ECU 281466 > | 1 | $33.54 | Obsolete | View Details |
| 17 | T3450299 Firtree, M6 | Firtree, M6 281466 > | 3 | $3.54 | Available to order | 3 |
| 18 | A9700160-PG Seat Cowl, Painted | Seat Cowl, Painted Jet Black - 323409> | 1 | $119.60 | Obsolete | View Details |
| 18 | A9700160-NF Seat Cowl, Painted | Seat Cowl, Painted Fusion White - 322891> | 1 | $201.76 | Obsolete | View Details |
| 18 | A9700160-HG Seat Cowl, Painted | Seat Cowl, Painted Roulette Green - 323426> | 1 | $201.76 | Obsolete | View Details |
| 20 | T3550094 Washer, Nylon, 12.45x14x0.76 | Washer, Nylon, 12.45x14x0.76 | 2 | $1.17 | Available to order | 2 |
| 21 | T3701170 Plastic Rivet, Screw Type | Plastic Rivet, Screw Type | 2 | $1.29 | Available to order | 2 |
| 22 | T2300595 Knockback Cover, Mirror | Knockback Cover, Mirror | 1 | $8.37 | Available to order | 1 |
