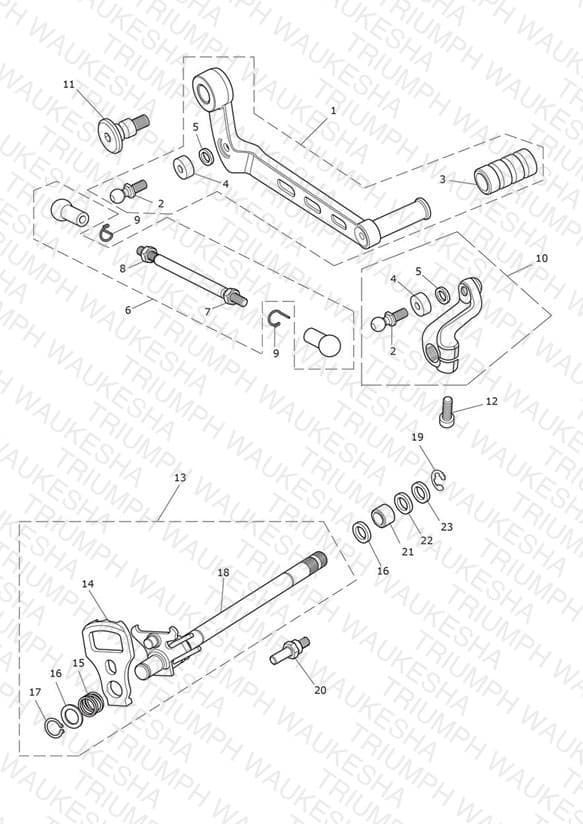

Gear Change Mechanism - All Except US & CA - & US, CA > 898121
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2083414 Gearchange Pedal Assembly | Gearchange Pedal Assembly | 1 | $102.19 | Out of Stock | Notify Me |
| 2 | T2082155 Ball, Ball Joint | Ball, Ball Joint | 2 | $11.33 | Available to order | 2 |
| 3 | T2080529 Rubber, Gearchange Pedal | Rubber, Gearchange Pedal | 1 | $8.52 | Available to order | 1 |
| 4 | T2086072 Seal, Ball Joint | Seal, Ball Joint | 2 | $8.15 | Available to order | 2 |
| 5 | T2082937 Washer, 6.4 x 11 x 1.6 | Washer, 6.4 x 11 x 1.6 | 2 | $1.37 | Available to order | 2 |
| 6 | T2083803 Rod, Gearchange Assy | Rod, Gearchange Assy | 1 | $52.29 | Available to order | 1 |
| 7 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 1 | $1.00 | Available to order | 1 |
| 8 | T3350304 Nut, LH, M6, Slv | Nut, LH, M6, Slv | 1 | $1.61 | Available to order | 1 |
| 9 | T2086073 Clip, Ball Joint | Clip, Ball Joint | 2 | $2.53 | Available to order | 2 |
| 10 | T2085170 Clamp, Linkage, Assembly | Clamp, Linkage, Assembly | 1 | $107.98 | Available to order | 1 |
| 11 | T3331520 Bolt, Shld, M8 x 1.25, Slv, Enc | Bolt, Shld, M8 x 1.25, Slv, Enc | 1 | $11.33 | Available to order | 1 |
| 12 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 1 | $1.61 | Available to order | 1 |
| 13 | T1190309 Shaft Assy, Pivot, Gearchange | Shaft Assy, Pivot, Gearchange | 1 | $164.77 | Available to order | 1 |
| 14 | T1194900 Pivot Plate | Pivot Plate | 1 | $46.84 | Available to order | 1 |
| 15 | T1190118 Spring, Comp, Selector Mech | Spring, Comp, Selector Mech | 1 | $11.75 | Backorder — Late September 2026 | 1 |
| 16 | T3555003 Washer, 12 x 18 x 1.2 | Washer, 12 x 18 x 1.2 | 2 | $1.50 | Backorder — Late September 2026 | 2 |
| 17 | T3500068 Circlip, Din 471, Dia 12 | Circlip, Din 471, Dia 12 | 1 | $2.04 | Available to order | 1 |
| 18 | T1190271 Shaft Assy, Pivot, G/Change Mech | Shaft Assy, Pivot, G/Change Mech | 1 | $46.76 | Out of Stock | Notify Me |
| 19 | T3500044 E Circlip | E Circlip | 1 | $1.04 | Available to order | 1 |
| 20 | T1190054 Bolt, Spring Abutment | Bolt, Spring Abutment | 1 | $6.81 | Available to order | 1 |
| 21 | 3800041-T0301 Bearing, Gearbox Lever | Bearing, Gearbox Lever | 1 | $14.11 | Available to order | 1 |
| 22 | T3600008 Oil Seal | Oil Seal | 1 | $12.48 | Available to order | 1 |
| 23 | T3553333 Thrust Washer, 12.25 x 28 x 1.2 | Thrust Washer, 12.25 x 28 x 1.2 | 1 | $5.45 | Available to order | 1 |
