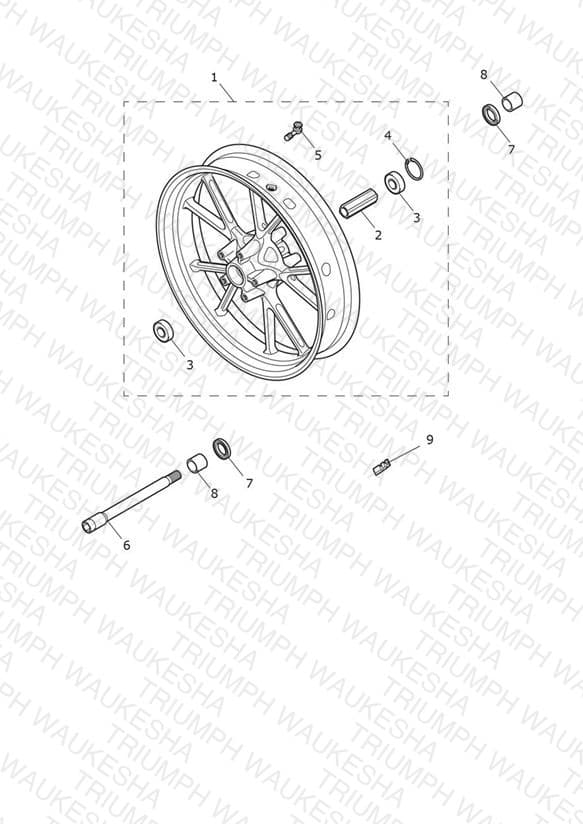

Front Wheel
Parts (9)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2000663 Front Wheel Assembly, 17 x 3.5 | Front Wheel Assembly, 17 x 3.5 | 1 | $1038.63 | Available to order | 1 |
| 2 | T2000690 Spacer, Front Wheel | Spacer, Front Wheel | 1 | $48.29 | Available to order | 1 |
| 3 | T3800702 Bearing Ball, 20 42 12 | Bearing Ball, 20 42 12 | 2 | $38.50 | Available to order | 2 |
| 4 | T3500401 Circlip, Int Dia 42 | Circlip, Int Dia 42 | 1 | $16.04 | Available to order | 1 |
| 5 | T2006635 Valve Assy, Alum, 90, Black | Valve Assy, Alum, 90, Black | 1 | $16.04 | Available to order | 1 |
| 6 | T2000650 Front Wheel Spindle | Front Wheel Spindle | 1 | $94.11 | Available to order | 1 |
| 7 | T3600703 Oil Seal, 30 42 6 | Oil Seal, 30 42 6 | 2 | $12.38 | Available to order | 2 |
| 8 | T2001422 Spacer, 30 OD, 20.2 ID | Spacer, 30 OD, 20.2 ID | 2 | $7.18 | Available to order | 2 |
| 9 | T2006688 Wheel Weight, 5 Gram, Black | Wheel Weight, 5 Gram, Black | 1 | $11.01 | Available to order | 1 |
