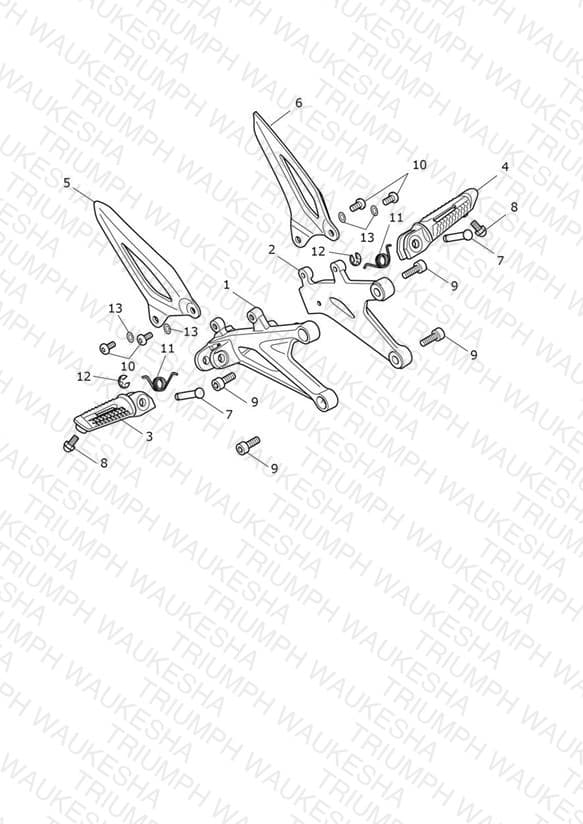

Foot Controls - Breitling Edition
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2089506 Control Plate, RH, Black | Control Plate, RH, Black | 1 | $128.07 | Out of Stock | Notify Me |
| 2 | T2089507 Control Plate, LH, Black | Control Plate, LH, Black | 1 | $128.07 | Out of Stock | Notify Me |
| 3 | T2089804 Footrest, Front, RH | Footrest, Front, RH | 1 | $78.78 | Backorder — Early August 2026 | 1 |
| 4 | T2089803 Footrest, Front, LH | Footrest, Front, LH | 1 | $78.78 | Available to order | 1 |
| 5 | T2089762 Heelguard, RH, Black | Heelguard, RH, Black | 1 | $161.71 | Available to order | 1 |
| 6 | T2089763 Heelguard, LH, Black | Heelguard, LH, Black | 1 | $161.71 | Available to order | 1 |
| 7 | T2080547 Pivot pin | Pivot pin | 2 | $6.55 | Available to order | 2 |
| 8 | T2082783 Peg, Bank Angle, 15mm | Peg, Bank Angle, 15mm | 2 | $15.34 | Available to order | 2 |
| 9 | T3050321 Screw, Cap/Hd, M8 x 20, Slv | Screw, Cap/Hd, M8 x 20, Slv | 4 | $7.42 | Available to order | 4 |
| 10 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 4 | $1.40 | Available to order | 4 |
| 11 | T2080819 Return Spring, Footrest | Return Spring, Footrest | 2 | $6.29 | Available to order | 2 |
| 12 | T3500207 Circlip, Ext 8 X 0.89 | Circlip, Ext 8 X 0.89 | 4 | $2.85 | Available to order | 4 |
| 13 | T3552001 Washer, M6 x 14 x 0.5 | Washer, M6 x 14 x 0.5 | 4 | $1.79 | Available to order | 4 |
