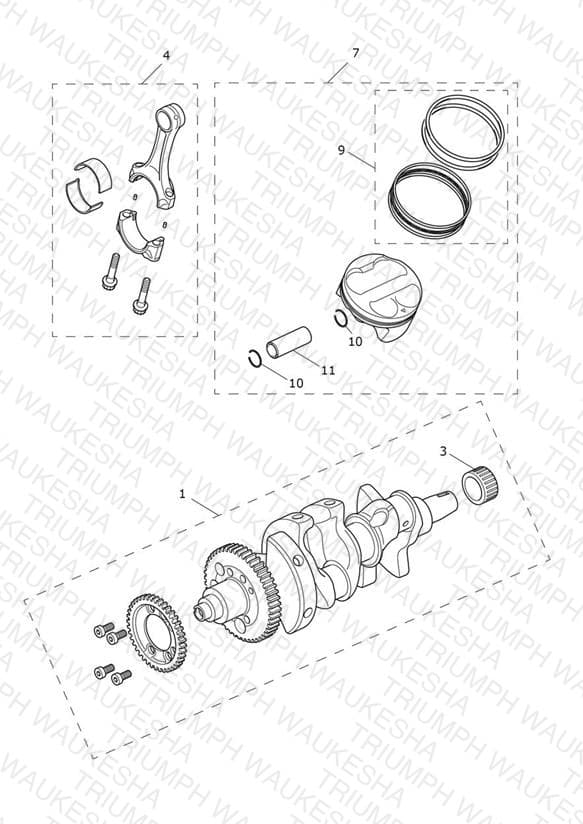

Crankshaft, Conrods and Pistons
Parts (7)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1109595 Crankshaft Assy, 3 Cyl | Crankshaft Assy, 3 Cyl | 1 | $1915.80 | Backorder — Early August 2026 | 1 |
| 3 | T3800120 Bearing, 28 x 41 x 21 Wide | Bearing, 28 x 41 x 21 Wide | 1 | $81.75 | Out of Stock | Notify Me |
| 4 | T1119150 Conrod & Shells, Spares | Conrod & Shells, Spares | 1 | $595.83 | Out of Stock | Notify Me |
| 7 | T1129230 Piston Assembly, 90.0 | Piston Assembly, 90.0 | 3 | $244.73 | Available to order | 3 |
| 9 | T1129300 Piston Ring Set | Piston Ring Set | 3 | $115.97 | Available to order | 3 |
| 10 | T1129255 Circlip, Piston | Circlip, Piston | 6 | $3.34 | Available to order | 6 |
| 11 | T1129350 Gudgeon Pin, Dia 20, Nitrided | Gudgeon Pin, Dia 20, Nitrided | 3 | $63.41 | Out of Stock | Notify Me |
