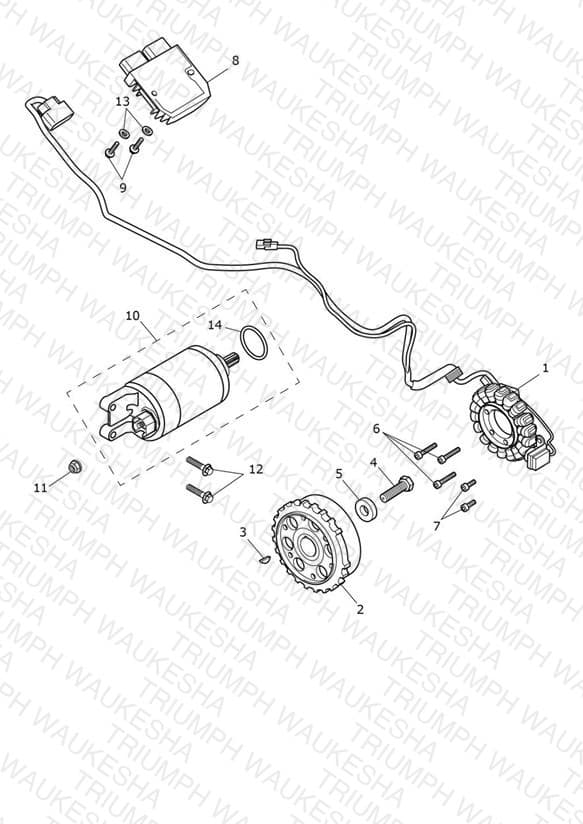

Starter & Alternator
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1304321 Stator, Alternator | Stator, Alternator | 1 | $559.09 | Available to order | 1 |
| 2 | T1301501 Rotor, Alternator | Rotor, Alternator | 1 | $870.54 | Available to order | 1 |
| 3 | T1300895 Key, Woodruff | Key, Woodruff | 1 | $7.77 | Available to order | 1 |
| 4 | T3208888 Bolt, Radial Feed, M12 x 40 | Bolt, Radial Feed, M12 x 40 | 1 | $14.46 | Available to order | 1 |
| 5 | T3550846 Washer, M12 x 30 x 8 | Washer, M12 x 30 x 8 | 1 | $11.03 | Available to order | 1 |
| 6 | T3051135 Screw, Cap/Hd, M6 x 30, Enc | Screw, Cap/Hd, M6 x 30, Enc | 3 | $1.06 | Available to order | 3 |
| 7 | T3051022 Screw, Cap/Hd, M6 x 16, Enc | Screw, Cap/Hd, M6 x 16, Enc | 2 | $0.57 | Available to order | 2 |
| 8 | T1300679 Regulator Rectifier | Regulator Rectifier | 1 | $412.16 | Available to order | 1 |
| 9 | T3331110 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 2 | $1.06 | Available to order | 2 |
| 10 | T1312500 Starter Motor | Starter Motor | 1 | $524.00 | Available to order | 1 |
| 11 | T3350305 Locknut, Flgd, M6 x 1.0, Slv | Locknut, Flgd, M6 x 1.0, Slv | 1 | $1.91 | Available to order | 1 |
| 12 | T3202303 Bolt, RHHF, M6 x 28, Slv | Bolt, RHHF, M6 x 28, Slv | 2 | $1.62 | Backorder — Early August 2026 | 2 |
| 13 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 2 | $1.40 | Available to order | 2 |
| 14 | T3600115 O Ring | O Ring | 1 | $3.39 | Backorder — Mid September 2026 | 1 |
