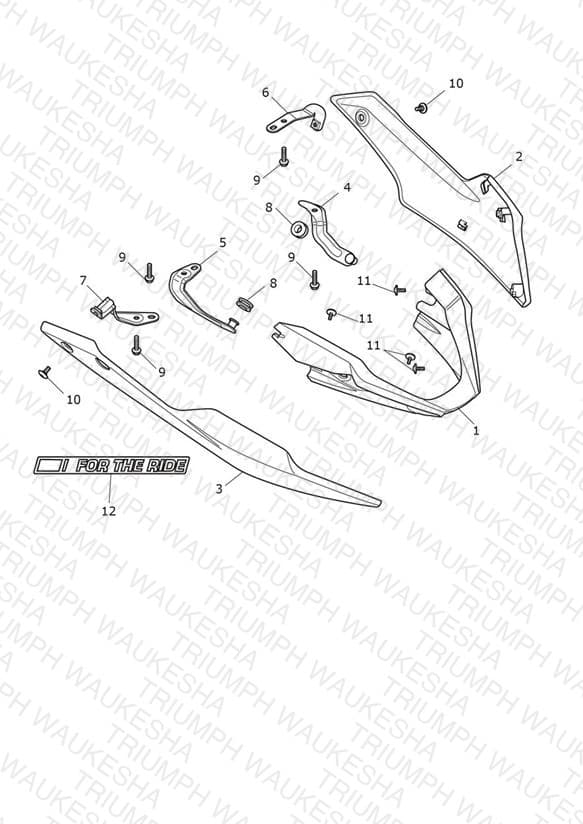

Bellypan
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2311816 Bellypan Centre | Bellypan Centre | 1 | $34.77 | Available to order | 1 |
| 2 | T2319925-PG Bellypan, LH, Jet Black | Bellypan, LH, Jet Black Black Bikes - No Decal | 1 | $224.15 | Available to order | 1 |
| 2 | T2319925-LE Bellypan, LH, Granite | Bellypan, LH, Granite Granite/Red & Granite/Yellow Bikes - No Decal | 1 | $224.15 | Backorder — Early August 2026 | 1 |
| 3 | T2319924-PG Bellypan, RH, Jet Black | Bellypan, RH, Jet Black Black Bikes - No Decal | 1 | $224.15 | Out of Stock | Notify Me |
| 3 | T2313393-LE Bellypan, RH, Granite/Red | Bellypan, RH, Granite/Red Granite/Red Bikes - Inc Decal, Item 12 | 1 | $224.15 | Out of Stock | Notify Me |
| 3 | T2313403-LE Bellypan, RH, Granite/Yellow | Bellypan, RH, Granite/Yellow Granite/Yellow Bikes - Inc Decal, Item 12 | 1 | $224.15 | Backorder — Late August 2026 | 1 |
| 4 | T2319970 Bracket, Bellypan, LHF | Bracket, Bellypan, LHF | 1 | $17.25 | Out of Stock | Notify Me |
| 5 | T2319937 Bracket, Bellypan, RHF | Bracket, Bellypan, RHF | 1 | $23.05 | Available to order | 1 |
| 6 | T2319921 Bracket, Bellypan, LHR | Bracket, Bellypan, LHR | 1 | $8.30 | Available to order | 1 |
| 7 | T2319923 Bracket, Bellypan, RHR | Bracket, Bellypan, RHR | 1 | $11.27 | Available to order | 1 |
| 8 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 2 | $1.91 | Available to order | 2 |
| 9 | T3205085 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc | 4 | $5.69 | Out of Stock | Notify Me |
| 10 | T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv | Bolt, But/Hd, M5 x 11, Shld, Slv | 2 | $5.02 | Available to order | 2 |
| 11 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 4 | $0.75 | Available to order | 4 |
| 12 | T2317182 Decal, Bellypan, RH | Decal, Bellypan, RH For Granite/Red Bikes | 1 | $12.94 | Backorder — Late August 2026 | 1 |
| 12 | T2317183 Decal, Bellypan, RH | Decal, Bellypan, RH For Granite/Yellow Bikes | 1 | $12.94 | Out of Stock | Notify Me |
