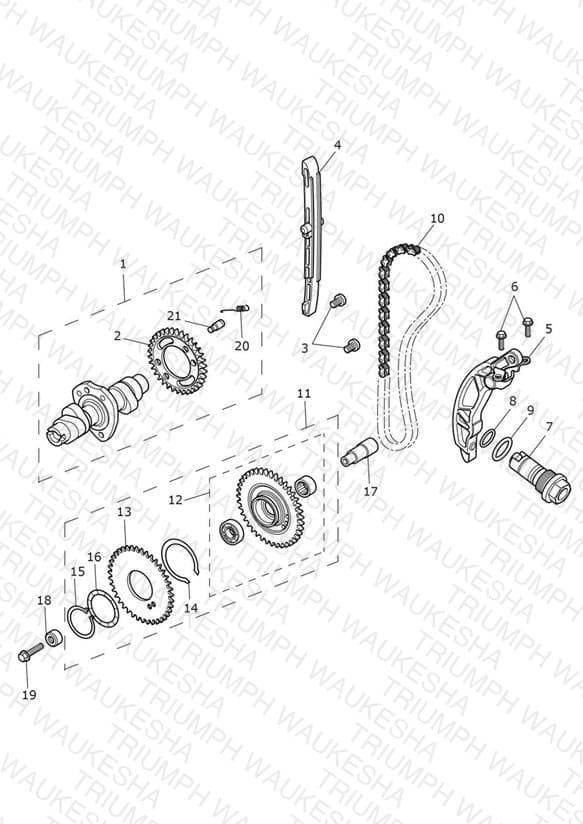

Camshaft & Camshaft Drive
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1147548 Camshaft Assembly | Camshaft Assembly | 1 | $422.30 | Available to order | 1 |
| 2 | T1140362 Sprocket, Camshaft | Sprocket, Camshaft | 1 | $125.46 | Backorder — Late August 2026 | 1 |
| 3 | T3053005 Screw, Pan, M7 x 12, Enc | Screw, Pan, M7 x 12, Enc | 2 | $2.01 | Available to order | 2 |
| 4 | T1140402 Rubbing Strip | Rubbing Strip | 1 | $52.29 | Out of Stock | Notify Me |
| 5 | T1140360 Tensioner Blade, Camshaft | Tensioner Blade, Camshaft | 1 | $88.41 | Available to order | 1 |
| 6 | T3051063 Screw, Cap/Hd, M6 x 16, Enc, Raw | Screw, Cap/Hd, M6 x 16, Enc, Raw | 2 | $0.57 | Available to order | 2 |
| 7 | T1140361 Hydraulic Tensioner | Hydraulic Tensioner | 1 | $192.02 | Available to order | 1 |
| 8 | T3600199 O Ring, 18.8 x Dia 1.9 | O Ring, 18.8 x Dia 1.9 | 1 | $1.47 | Available to order | 1 |
| 9 | T3601276 O Ring, ID 23.7 x 2.9 | O Ring, ID 23.7 x 2.9 | 1 | $2.98 | Available to order | 1 |
| 10 | T1140363 Chain, Cam Drive, 96 Links | Chain, Cam Drive, 96 Links | 1 | $123.83 | Available to order | 1 |
| 11 | T1140481 Cam Idler Assy, 18T, 45T | Cam Idler Assy, 18T, 45T | 1 | $70.35 | Available to order | 1 |
| 12 | T1140391 Cam Idler Assy & Bearings | Cam Idler Assy & Bearings | 1 | $267.57 | Available to order | 1 |
| 13 | T1140452 Backlash Idler Gear, 45T | Backlash Idler Gear, 45T | 1 | $98.85 | Available to order | 1 |
| 14 | T1140058 Torsion Spring, 2.8mm | Torsion Spring, 2.8mm | 1 | $7.02 | Available to order | 1 |
| 15 | T3500920 Circlip, ID 32.2 | Circlip, ID 32.2 | 1 | $1.21 | Available to order | 1 |
| 16 | T3551985 Washer, Wave Spring | Washer, Wave Spring | 1 | $5.30 | Available to order | 1 |
| 17 | T1140523 Idler Shaft | Idler Shaft | 1 | $66.52 | Available to order | 1 |
| 18 | T1140431 Spacer, Idler | Spacer, Idler | 1 | $13.33 | Backorder — Late August 2026 | 1 |
| 19 | T3200147 Bolt, RHHF, M6 x 30 | Bolt, RHHF, M6 x 30 | 1 | $4.45 | Available to order | 1 |
| 20 | T1144020 Spring, Decompressor | Spring, Decompressor | 1 | $15.72 | Available to order | 1 |
| 21 | T1143654 Mount, Spring, Decompressor | Mount, Spring, Decompressor | 1 | $4.36 | Available to order | 1 |
