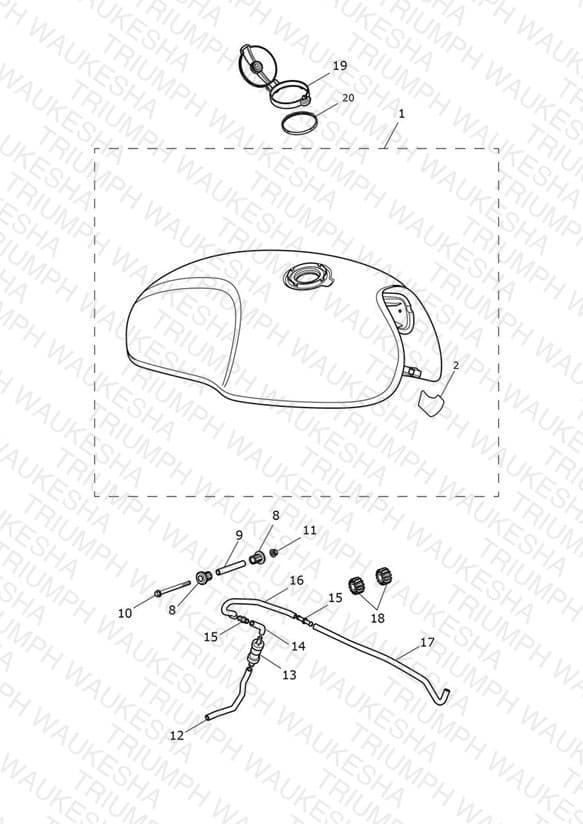

Fuel Tank
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2402722-KA Fuel Tank Assembly | Fuel Tank Assembly Polychromatic Blue, Includes Protective Film, item 2 | 1 | $2843.74 | Out of Stock | Notify Me |
| 2 | T2401650 Film, Protective, Fuel Tank | Film, Protective, Fuel Tank | 1 | $5.98 | Available to order | 1 |
| 8 | T2403597 Rubber Bush | Rubber Bush | 2 | $3.50 | Available to order | 2 |
| 9 | T2401401 Turned Spacer, Tank Mount | Turned Spacer, Tank Mount | 1 | $8.65 | Backorder — Early August 2026 | 1 |
| 10 | T3202330 Bolt, RHHF, M6 x 90, Slv | Bolt, RHHF, M6 x 90, Slv | 1 | $11.03 | Available to order | 1 |
| 11 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 12 | T2403041 Hose, Formed, Rollover Drain | Hose, Formed, Rollover Drain | 1 | $16.74 | Available to order | 1 |
| 13 | T2405042 Roll Over Valve | Roll Over Valve | 1 | $40.38 | Available to order | 1 |
| 14 | T2405894 Hose, Formed, Restrictor to Rollover | Hose, Formed, Restrictor to Rollover | 1 | $17.28 | Out of Stock | Notify Me |
| 15 | T2401851 Restrictor, Hose, Breather | Restrictor, Hose, Breather | 2 | $11.32 | Available to order | 2 |
| 16 | T2402367 Hose, Restrictor to Restrictor | Hose, Restrictor to Restrictor | 1 | $16.74 | Backorder — Early August 2026 | 1 |
| 17 | T2405056 Hose, Upper, Tank to Rollover | Hose, Upper, Tank to Rollover | 1 | $21.98 | Out of Stock | Notify Me |
| 18 | T2400854 Tank Mount Bush | Tank Mount Bush | 2 | $2.74 | Available to order | 2 |
| 19 | T2400812 Fuel Filler Cap, Monza | Fuel Filler Cap, Monza | 1 | $98.85 | Available to order | 1 |
| 20 | T2401403 Fixture Ring, Plastic | Fixture Ring, Plastic | 1 | $7.02 | Available to order | 1 |
