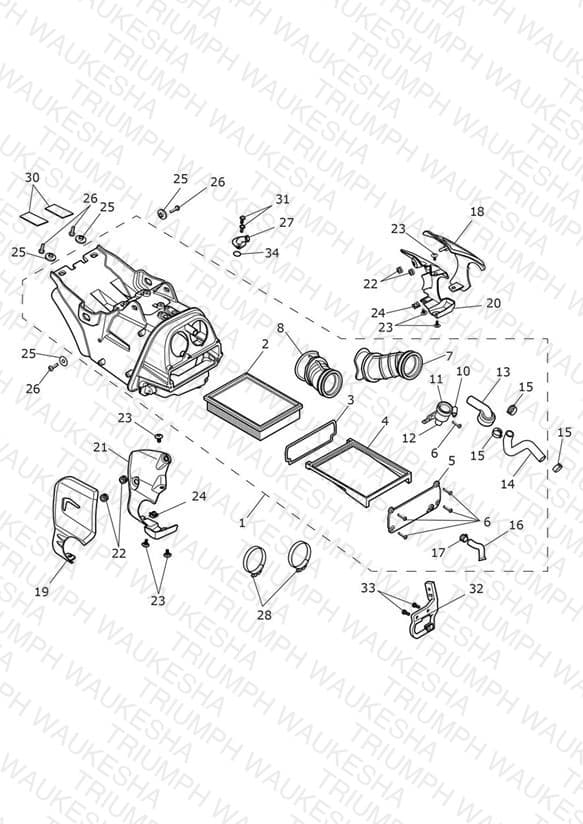

Airbox
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2206621 Airbox Assy, D44 Throttles | Airbox Assy, D44 Throttles | 1 | $298.60 | Backorder — Late August 2026 | 1 |
| 2 | T2201122 Air Filter | Air Filter | 1 | $36.54 | Available to order | 1 |
| 3 | T2201058 Seal, Filter Face | Seal, Filter Face | 1 | $25.85 | Available to order | 1 |
| 4 | T2201129 Casette, Air Filter | Casette, Air Filter | 1 | $32.54 | Out of Stock | Notify Me |
| 5 | T2200937 Mount Plate, Filter Cassette | Mount Plate, Filter Cassette | 1 | $66.52 | Available to order | 1 |
| 6 | T3330319 Screw, S/Tap, 5 x 20 | Screw, S/Tap, 5 x 20 | 5 | $1.62 | Backorder — Late September 2026 | 5 |
| 7 | T2202458 Intake Duct, LH, D44 Throttle | Intake Duct, LH, D44 Throttle | 1 | $19.65 | Out of Stock | Notify Me |
| 8 | T2202459 Intake Duct, RH, D44, Throttle | Intake Duct, RH, D44, Throttle | 1 | $20.69 | Out of Stock | Notify Me |
| 10 | T2102242 Hose Clip, 23-35, Bright, Ss | Hose Clip, 23-35, Bright, Ss | 1 | $7.73 | Available to order | 1 |
| 11 | T2201488 Foam, Breather Chamber, In Line | Foam, Breather Chamber, In Line | 1 | $29.94 | Available to order | 1 |
| 12 | T2201457 Moulding, Breather, In-Line | Moulding, Breather, In-Line | 1 | $29.94 | Available to order | 1 |
| 13 | T2201497 Cap, Breather Chamber, In-Line | Cap, Breather Chamber, In-Line | 1 | $29.94 | Available to order | 1 |
| 14 | T2201124 Hose, Crankcase Breather | Hose, Crankcase Breather | 1 | $16.74 | Available to order | 1 |
| 15 | T3700050 Hose Clip, Dia 19.5-22 x 8mm | Hose Clip, Dia 19.5-22 x 8mm | 3 | $3.77 | Available to order | 3 |
| 16 | T2201434 Drain Tube, Sealed | Drain Tube, Sealed | 1 | $9.02 | Available to order | 1 |
| 17 | T3700089 Hose Clip, Dia 12.5 | Hose Clip, Dia 12.5 | 1 | $4.01 | Available to order | 1 |
| 18 | T2205141 Finisher, Throttle Body, LH, Black | Finisher, Throttle Body, LH, Black | 1 | $37.15 | Backorder — Late August 2026 | 1 |
| 19 | T2205142 Finisher, Throttle Body, RH, Black | Finisher, Throttle Body, RH, Black | 1 | $37.15 | Available to order | 1 |
| 20 | T2205085 Mount, Moulding, LH Finisher | Mount, Moulding, LH Finisher | 1 | $6.12 | Available to order | 1 |
| 21 | T2205086 Mount, Moulding, RH Finisher | Mount, Moulding, RH Finisher | 1 | $6.12 | Available to order | 1 |
| 22 | T3020131 Grommet, 9 x 2 x 6 | Grommet, 9 x 2 x 6 | 4 | $2.00 | Available to order | 4 |
| 23 | T3331075 Bolt, But/Hd, M5 x 14, Slv | Bolt, But/Hd, M5 x 14, Slv | 6 | $5.02 | Available to order | 6 |
| 24 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 2 | $3.39 | Available to order | 2 |
| 25 | T3010031 Flanged Sleeve, M6 | Flanged Sleeve, M6 | 4 | $4.19 | Backorder — Late August 2026 | 4 |
| 26 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 4 | $2.63 | Available to order | 4 |
| 27 | T2205415 SAI Connector, Airbox, Moulding | SAI Connector, Airbox, Moulding | 1 | $41.66 | Out of Stock | Notify Me |
| 28 | T3700041 Clip, Intake, Venturi, 60mm, Cap | Clip, Intake, Venturi, 60mm, Cap | 2 | $7.87 | Available to order | 2 |
| 30 | T3660176 Rubber Strip | Rubber Strip | 2 | $5.02 | Out of Stock | Notify Me |
| 31 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 2 | $1.51 | Available to order | 2 |
| 32 | T2305048 Bracket, Evap, TPS, Moulding | Bracket, Evap, TPS, Moulding | 1 | — | Unavailable | View Details |
| 33 | T3332656 Screw, Button, M5 x 12, Enc | Screw, Button, M5 x 12, Enc | 2 | $1.11 | Available to order | 2 |
| 34 | T3606360 O Ring, 14.1 x 1.6 | O Ring, 14.1 x 1.6 | 1 | $2.10 | Available to order | 1 |
