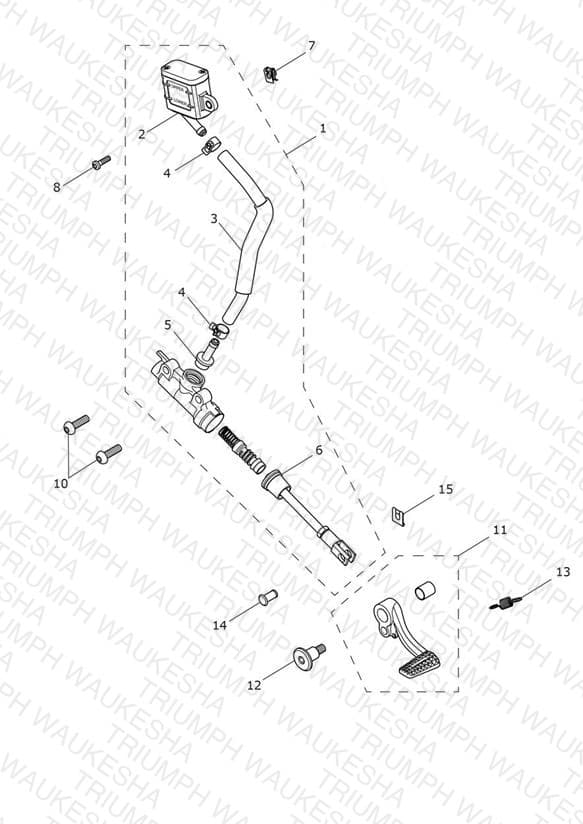

Rear Brake Master Cylinder
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2021642 Rear Brake Master Cylinder Assy | Rear Brake Master Cylinder Assy | 1 | $318.47 | Available to order | 1 |
| 2 | T2024080 M/Cyl Reservoir Assy | M/Cyl Reservoir Assy | 1 | $46.52 | Available to order | 1 |
| 3 | T2021644 Hose, Reservoir, M/Cyl, Rear | Hose, Reservoir, M/Cyl, Rear | 1 | $43.76 | Out of Stock | Notify Me |
| 4 | T2023188 Reservoir Hose Clip | Reservoir Hose Clip | 2 | $3.50 | Available to order | 2 |
| 5 | T2022108 Connector Set | Connector Set | 1 | $25.96 | Available to order | 1 |
| 6 | T2028061 Rod Assembly, M/Cyl, Rear | Rod Assembly, M/Cyl, Rear | 1 | $369.67 | Available to order | 1 |
| 7 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 1 | $3.39 | Available to order | 1 |
| 8 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 1 | $0.97 | Available to order | 1 |
| 10 | T3335012 Screw, But/Hd, Skt, M8 x 25 | Screw, But/Hd, Skt, M8 x 25 | 2 | $8.33 | Available to order | 2 |
| 11 | T2023065 Brake Pedal Assy | Brake Pedal Assy | 1 | $146.35 | Available to order | 1 |
| 12 | T3331520 Bolt, Shld, M8 x 1.25, Slv, Enc | Bolt, Shld, M8 x 1.25, Slv, Enc | 1 | $10.63 | Available to order | 1 |
| 13 | T2025436 Return Spring, Brake Pedal | Return Spring, Brake Pedal | 1 | $2.00 | Available to order | 1 |
| 14 | T3000301 Pin, Clevis, 8 x 13.7 | Pin, Clevis, 8 x 13.7 | 1 | $4.30 | Available to order | 1 |
| 15 | T3000302 Clip, 8mm, Clevis Pin | Clip, 8mm, Clevis Pin | 1 | $6.07 | Available to order | 1 |
