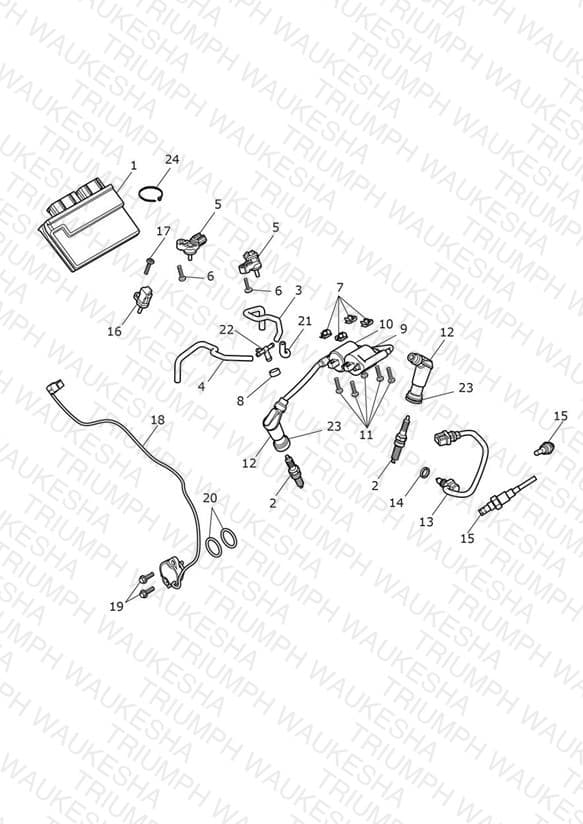

Engine Management System
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1292345 ECU Base | ECU Base | 1 | $1070.03 | Available to order | 1 |
| 2 | T1290745 Spark Plug, M10 x 26.5, Hex 14 | Spark Plug, M10 x 26.5, Hex 14 | 2 | $10.62 | Available to order | 2 |
| 3 | T1290301 Hose, Single Map Sensor, LH | Hose, Single Map Sensor, LH | 1 | $29.08 | Available to order | 1 |
| 4 | T1290302 Hose, Single Map Sensor, RH | Hose, Single Map Sensor, RH | 1 | $28.90 | Available to order | 1 |
| 5 | T1290975 Air Pressure Sensor | Air Pressure Sensor | 2 | $144.49 | Available to order | 2 |
| 6 | T3331260 Screw, Thread Forming, 5 x 20 | Screw, Thread Forming, 5 x 20 | 2 | $10.34 | Available to order | 2 |
| 7 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 5 | $3.39 | Available to order | 5 |
| 8 | T1245095 Cap, Evap | Cap, Evap | 1 | $6.83 | Available to order | 1 |
| 9 | T1290321 Ignition Coil Assy, Long | Ignition Coil Assy, Long | 1 | $209.11 | Available to order | 1 |
| 10 | T1290308 Ignition Coil Assy, Short | Ignition Coil Assy, Short | 1 | $199.57 | Available to order | 1 |
| 11 | T3330648 Screw, Pan/Hd, Tx, M5 x 20, Slv | Screw, Pan/Hd, Tx, M5 x 20, Slv | 5 | $2.63 | Available to order | 5 |
| 12 | T1290990 Cap, Spark Plug | Cap, Spark Plug Includes Seal T1290882 | 2 | $17.49 | Available to order | 2 |
| 13 | T1294225 Sensor, Water Temperature | Sensor, Water Temperature | 1 | $53.40 | Available to order | 1 |
| 14 | T3550571 Washer, Cu, OD 16 x ID 12.5 | Washer, Cu, OD 16 x ID 12.5 | 1 | $5.07 | Available to order | 1 |
| 15 | T2207250 Oxygen Sensor, Exhaust, M12, 250mm | Oxygen Sensor, Exhaust, M12, 250mm | 2 | $239.57 | Available to order | 2 |
| 16 | T1290088 Sensor, Air Temperature | Sensor, Air Temperature | 1 | $64.75 | Available to order | 1 |
| 17 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 1 | $1.51 | Available to order | 1 |
| 18 | T1295678 Gear Position Sensor | Gear Position Sensor | 1 | $119.76 | Available to order | 1 |
| 19 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 20 | T3600267 O Ring, ID 26.65 x Dia 2.62 | O Ring, ID 26.65 x Dia 2.62 | 2 | $1.51 | Available to order | 2 |
| 21 | T1290499 Hose, Single Map Sensor, Med | Hose, Single Map Sensor, Med | 1 | $28.34 | Available to order | 1 |
| 22 | T1242929 Connector, 4 Way | Connector, 4 Way | 1 | $10.90 | Available to order | 1 |
| 23 | T1290882 Seal, Spark Plug Cap | Seal, Spark Plug Cap | 2 | $6.65 | Available to order | 2 |
| 24 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
