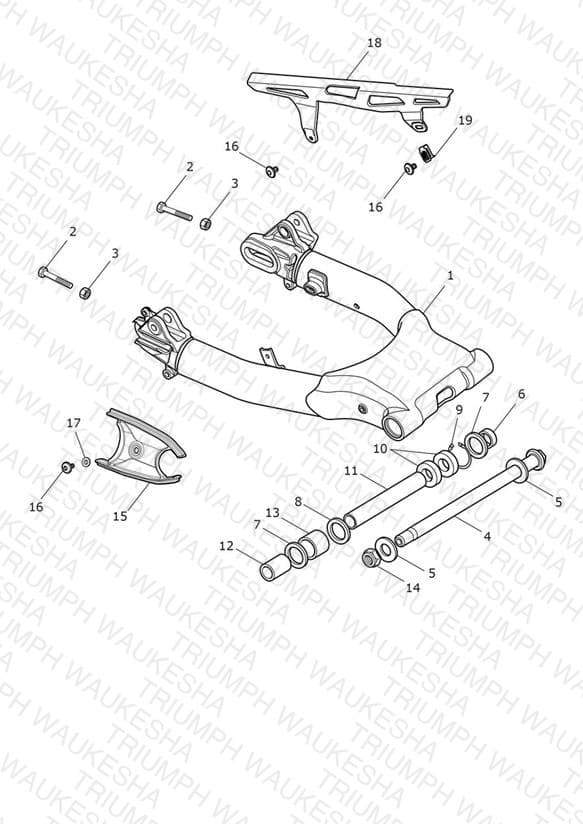

Swingarm Assembly
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2051033 Swingarm Assembly | Swingarm Assembly Includes items 6, 7 ,8, 9, 10, 11, 12 & 13 | 1 | $1223.48 | Available to order | 1 |
| 2 | T3203205 Screw, H/Hd, M8 x 50, Slv | Screw, H/Hd, M8 x 50, Slv | 2 | $2.05 | Available to order | 2 |
| 3 | T3350303 Nut, M8, Silver | Nut, M8, Silver | 2 | $0.81 | Backorder — Early August 2026 | 2 |
| 4 | T2012012 Bolt | Bolt | 1 | $35.64 | Available to order | 1 |
| 5 | T3550261 Washer, 18 x 30 x 3 | Washer, 18 x 30 x 3 | 2 | $2.85 | Available to order | 2 |
| 6 | T2054063 Spacer, 25 x 17 x 8.5 | Spacer, 25 x 17 x 8.5 | 1 | $8.01 | Available to order | 1 |
| 7 | T3600044 Oil Seal, 35 25 4 | Oil Seal, 35 25 4 | 2 | $10.44 | Available to order | 2 |
| 8 | T3600170 Seal, SD 25 32 04 | Seal, SD 25 32 04 | 1 | $13.51 | Available to order | 1 |
| 9 | T3500204 Circlip, Int, 35 x 1.5 | Circlip, Int, 35 x 1.5 | 1 | $0.97 | Available to order | 1 |
| 10 | T3800506 Bearing, Ball, 17 x 35 x 10 | Bearing, Ball, 17 x 35 x 10 | 2 | $19.29 | Available to order | 2 |
| 11 | T2051225 Spacer, Internal, 22x 149.5 | Spacer, Internal, 22x 149.5 | 1 | $58.92 | Out of Stock | Notify Me |
| 12 | T2050231 Sleeve, Ground, 25 17 40 | Sleeve, Ground, 25 17 40 | 1 | $13.82 | Available to order | 1 |
| 13 | T3800014 Roller bearing | Roller bearing | 1 | $14.32 | Available to order | 1 |
| 14 | T3350155 Locknut, Thin, M16 | Locknut, Thin, M16 | 1 | $9.41 | Available to order | 1 |
| 15 | T2050612 Chain, Rubbing Strip | Chain, Rubbing Strip | 1 | $40.87 | Available to order | 1 |
| 16 | T3330312 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 3 | $3.59 | Backorder — Late August 2026 | 3 |
| 17 | T3010061 Flanged Sleeve, M6 x 9 x 3.25 | Flanged Sleeve, M6 x 9 x 3.25 | 1 | $7.22 | Available to order | 1 |
| 18 | T2050498 Chainguard, Moulding | Chainguard, Moulding | 1 | $66.52 | Available to order | 1 |
| 19 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 1 | $4.92 | Backorder — Early August 2026 | 1 |
