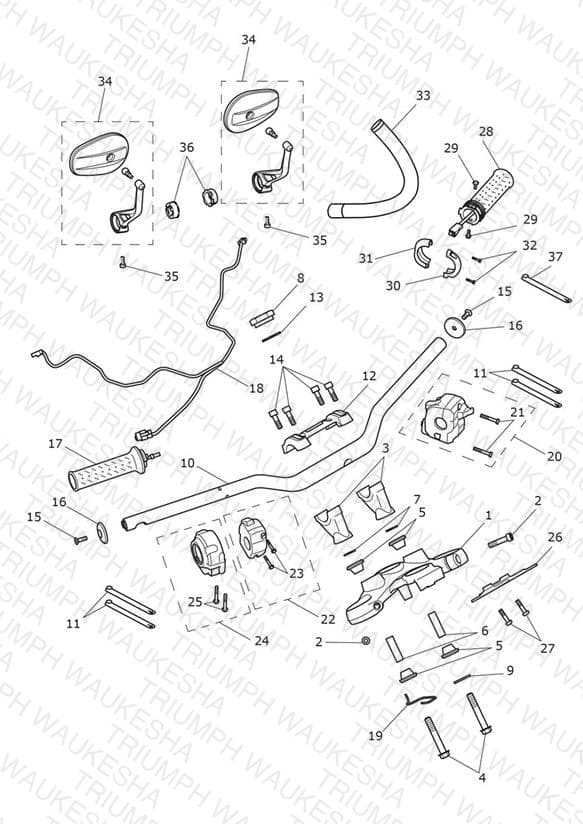

Handlebars, Top Yokes & Mirrors > 920185 All Expt BR & > 932928 - BR Only
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2043304 Upper Yoke | Upper Yoke | 1 | $282.14 | Available to order | 1 |
| 2 | T3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv | Screw, Cap/Hd, M8 x 1.25 x 35, Slv | 2 | $4.74 | Available to order | 2 |
| 3 | T2043406 Riser, Handlebar Clamp | Riser, Handlebar Clamp | 2 | $46.89 | Available to order | 2 |
| 4 | T3205765 Bolt, HHF, M10 x 65, Slv | Bolt, HHF, M10 x 65, Slv | 2 | $4.12 | Available to order | 2 |
| 5 | T2042136 Rubber Bush, Handlebar Clamp | Rubber Bush, Handlebar Clamp | 4 | $8.25 | Available to order | 4 |
| 6 | T2049488 Sleeve, Dia 13 x 43 | Sleeve, Dia 13 x 43 | 2 | $4.86 | Available to order | 2 |
| 7 | T3550632 Washer, 10.5 x 21 x 2 | Washer, 10.5 x 21 x 2 | 2 | $2.95 | Available to order | 2 |
| 8 | T2042135 Nut, Upper, M25, Domed | Nut, Upper, M25, Domed | 1 | $3.77 | Available to order | 1 |
| 9 | T3555030 Washer, 10.5 x 30 x 2.5 | Washer, 10.5 x 30 x 2.5 | 1 | $6.65 | Available to order | 1 |
| 10 | T2041153 Handlbar, Tapered, Black | Handlbar, Tapered, Black | 1 | $230.76 | Available to order | 1 |
| 11 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 4 | $3.90 | Available to order | 4 |
| 12 | T2043408 Clamp, Handlebar | Clamp, Handlebar | 1 | $64.83 | Available to order | 1 |
| 13 | T2043415 Badge, Handlebar Clamp | Badge, Handlebar Clamp | 1 | $69.37 | Available to order | 1 |
| 14 | T3051097 Screw, Cap/Hd, M8 x 25, Silver | Screw, Cap/Hd, M8 x 25, Silver | 4 | $4.12 | Available to order | 4 |
| 15 | T3330923 Screw, Csk, M6 x 20, Slv, Enc | Screw, Csk, M6 x 20, Slv, Enc | 2 | $2.37 | Available to order | 2 |
| 16 | T2042476 Bar End Finisher | Bar End Finisher | 2 | $22.52 | Available to order | 2 |
| 17 | T2041199 Heated Grip, RH | Heated Grip, RH | 1 | $176.68 | Backorder — Late August 2026 | 1 |
| 18 | T9820073 Subharness, Heated Grips | Subharness, Heated Grips | 1 | $13.35 | Available to order | 1 |
| 19 | T2042390 Wire Guide, Top Yoke | Wire Guide, Top Yoke | 1 | $7.87 | Backorder — Late August 2026 | 1 |
| 20 | T2043437 Switchcube, Inst Control, LH | Switchcube, Inst Control, LH | 1 | $258.75 | Available to order | 1 |
| 20 | T2043529 Switchcube, LH, Inst Control, No DRL | Switchcube, LH, Inst Control, No DRL | 1 | $184.39 | Available to order | 1 |
| 21 | T3331790 Screw, Pan/Hd, Ph, M5 x 30, Blk | Screw, Pan/Hd, Ph, M5 x 30, Blk | 2 | $0.89 | Available to order | 2 |
| 22 | T2048632 Switchcube, RH | Switchcube, RH | 1 | $186.31 | Available to order | 1 |
| 23 | T3331826 Screw, Pan/Hd, M4 x 20, Blk | Screw, Pan/Hd, M4 x 20, Blk | 2 | $1.13 | Obsolete | View Details |
| 24 | T2043407 Sensor, AP | Sensor, AP | 1 | $284.27 | Backorder — Late August 2026 | 1 |
| 25 | T2041629 Screw, APS Housing | Screw, APS Housing | 2 | $2.17 | Available to order | 2 |
| 26 | T2041583 Mount, Instruments | Mount, Instruments | 1 | $40.87 | Available to order | 1 |
| 27 | T3331110 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 2 | $1.06 | Available to order | 2 |
| 28 | T2041196 Heated Grip, LH | Heated Grip, LH | 1 | $176.68 | Available to order | 1 |
| 29 | T3330247 Screw, S/Tap, Pan/Hd, M4 x 10, HD | Screw, S/Tap, Pan/Hd, M4 x 10, HD | 2 | $7.14 | Available to order | 2 |
| 30 | T2041469 Button Housing, H/Grip, Lower | Button Housing, H/Grip, Lower | 1 | $6.65 | Available to order | 1 |
| 31 | T2041468 Button Housing, H/Grip, Upper | Button Housing, H/Grip, Upper | 1 | $6.65 | Available to order | 1 |
| 32 | T3330264 Screw, S/Tap, TX, 3 x 1.35 x 12, Blk | Screw, S/Tap, TX, 3 x 1.35 x 12, Blk | 2 | $5.02 | Available to order | 2 |
| 33 | T2048846 Sheathing, Heated Grips | Sheathing, Heated Grips | 1 | $12499.98 | Obsolete | View Details |
| 34 | T2060314 Mirror, Bar End, Assy | Mirror, Bar End, Assy | 2 | $86.66 | Available to order | 2 |
| 35 | T3050159 Capscrew, SKT HD, M6 x 20, SS | Capscrew, SKT HD, M6 x 20, SS | 2 | $5.14 | Available to order | 2 |
| 36 | T2060499 Friction Ring, 22.2 | Friction Ring, 22.2 | 2 | $36.96 | Available to order | 2 |
| 37 | T3700212 Band, Rubber | Band, Rubber | 1 | $3.29 | Available to order | 1 |
