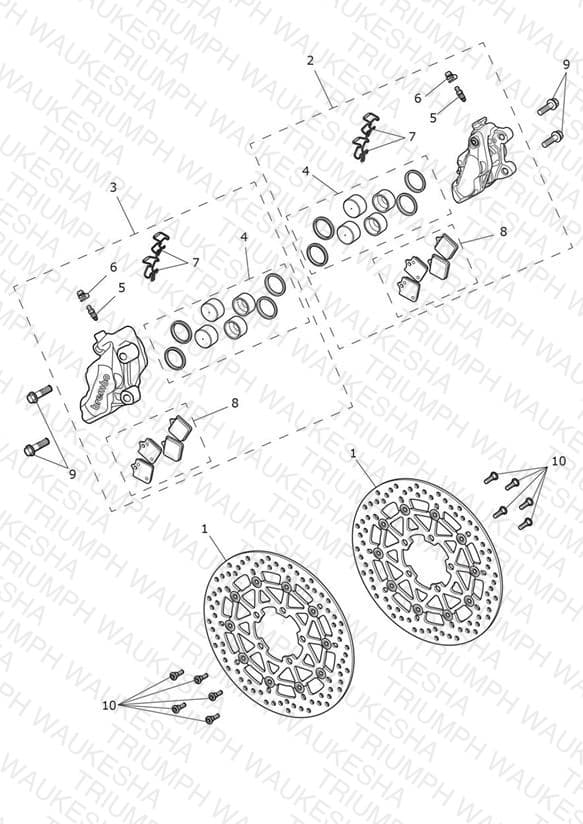

Front Brake Calipers & Discs
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2024400 Disc Assy | Disc Assy | 2 | $303.18 | Available to order | 2 |
| 2 | T2026562 Caliper, LH, TT2172 | Caliper, LH, TT2172 | 1 | $602.02 | Out of Stock | Notify Me |
| 3 | T2026563 Caliper, RH, TT2172 | Caliper, RH, TT2172 | 1 | $950.61 | Available to order | 1 |
| 4 | T2026580 Piston & Seal Kit, Caliper | Piston & Seal Kit, Caliper | 2 | $254.75 | Available to order | 2 |
| 5 | T2020695 Bleed Screw Set | Bleed Screw Set | 2 | $9.22 | Backorder — Early October 2026 | 2 |
| 6 | T2021453 Boot, Bleed Screw, Caliper | Boot, Bleed Screw, Caliper | 2 | $12.29 | Available to order | 2 |
| 7 | T2020714 Pad Spring & Pin Set | Pad Spring & Pin Set | 2 | $44.40 | Backorder — Late August 2026 | 2 |
| 8 | T2026565 Pad Set, TT2172, P4.34 | Pad Set, TT2172, P4.34 | 2 | $132.56 | Available to order | 2 |
| 9 | T3205796 Bolt, HHF, Lghtd, M10 x 35, Slv | Bolt, HHF, Lghtd, M10 x 35, Slv | 4 | $11.32 | Backorder — Mid August 2026 | 4 |
| 10 | T2024801 Bolt, Disc, M8 x 30, Slv, Enc | Bolt, Disc, M8 x 30, Slv, Enc | 10 | $1.90 | Available to order | 10 |
