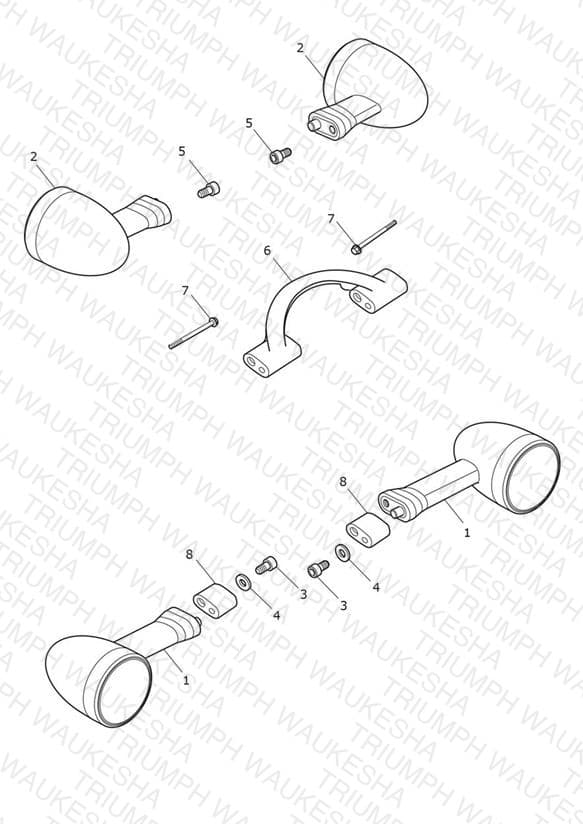

Indicators - US & CA Only
Parts (8)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2701377 LED Indicator, Med, D64, 257 Lead | LED Indicator, Med, D64, 257 Lead | 2 | $104.26 | Available to order | 2 |
| 2 | T9830111 Multifunction Lamp, Type 2 | Multifunction Lamp, Type 2 | 2 | $216.72 | Available to order | 2 |
| 3 | T3051135 Screw, Cap/Hd, M6 x 30, Enc | Screw, Cap/Hd, M6 x 30, Enc | 2 | $1.06 | Available to order | 2 |
| 4 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 2 | $1.40 | Available to order | 2 |
| 5 | T3050331 Screw, Cap/Hd, M6 x 16, Slv, Enc | Screw, Cap/Hd, M6 x 16, Slv, Enc US Only | 2 | $2.35 | Available to order | 2 |
| 6 | T2310222 Spacer Bridge, Rear Indicators | Spacer Bridge, Rear Indicators CA Only | 1 | $24.66 | Out of Stock | Notify Me |
| 7 | T3200195 Bolt, RHHF, M6 x 68, Slv | Bolt, RHHF, M6 x 68, Slv CA Only | 2 | $4.36 | Available to order | 2 |
| 8 | T2701140 Spacer, Indicator, Front | Spacer, Indicator, Front | 2 | $5.54 | Available to order | 2 |
