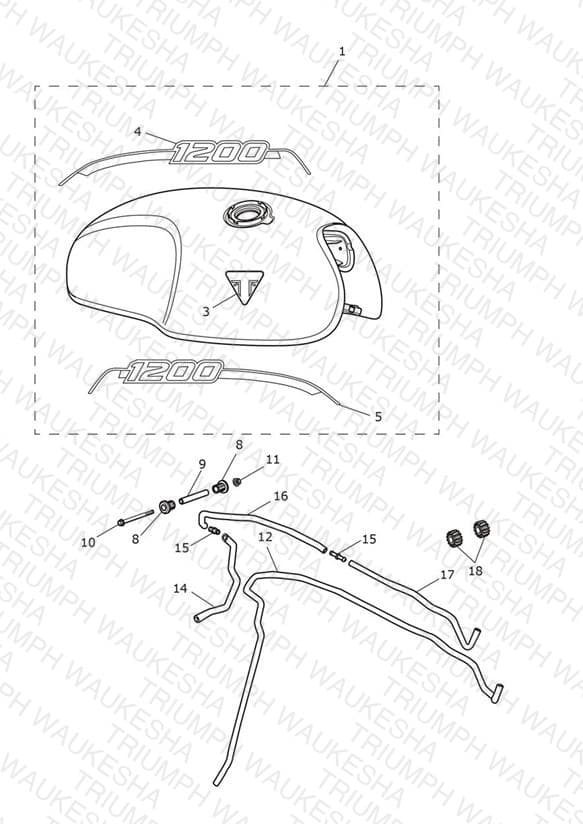

Fuel Tank - Carnival Red & Crystal White Tanks
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2403745-CU Fuel Tank Assembly, Carnival Red | Fuel Tank Assembly, Carnival Red Includes Decals, items 3,4 & 5 | 1 | $1891.06 | Available to order | 1 |
| 1 | T2403745-NW Fuel Tank Assembly, Crystal White | Fuel Tank Assembly, Crystal White Includes Decals, items 3,4 & 5 | 1 | $1891.06 | Available to order | 1 |
| 3 | T2312398 Decal, Tank Badge | Decal, Tank Badge White Tanks | 2 | $8.56 | Out of Stock | Notify Me |
| 3 | T2310473 Decal, Tank Badge | Decal, Tank Badge Red Tanks | 2 | $8.18 | Available to order | 2 |
| 4 | T2408919 Decal, Fuel Tank, LH | Decal, Fuel Tank, LH Red Tanks | 1 | $53.29 | Out of Stock | Notify Me |
| 4 | T2408917 Decal, Fuel Tank, LH | Decal, Fuel Tank, LH White Tanks | 1 | $53.29 | Backorder — Late August 2026 | 1 |
| 5 | T2408920 Decal, Fuel Tank, RH | Decal, Fuel Tank, RH Red Tanks | 1 | $53.29 | Out of Stock | Notify Me |
| 5 | T2408918 Decal, Fuel Tank, RH | Decal, Fuel Tank, RH White Tanks | 1 | $53.29 | Out of Stock | Notify Me |
| 8 | T2403597 Rubber Bush | Rubber Bush | 2 | $3.50 | Available to order | 2 |
| 9 | T2401401 Turned Spacer, Tank Mount | Turned Spacer, Tank Mount | 1 | $8.65 | Backorder — Early August 2026 | 1 |
| 10 | T3202330 Bolt, RHHF, M6 x 90, Slv | Bolt, RHHF, M6 x 90, Slv | 1 | $11.03 | Available to order | 1 |
| 11 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 12 | T2405062 Hose, Drain | Hose, Drain | 1 | $26.65 | Out of Stock | Notify Me |
| 14 | T2404182 Hose, Restrictor to Evap | Hose, Restrictor to Evap | 1 | $21.31 | Out of Stock | Notify Me |
| 15 | T2401851 Restrictor, Hose, Breather | Restrictor, Hose, Breather | 2 | $11.32 | Available to order | 2 |
| 16 | T2404181 Hose, Restrictor to Restrictor | Hose, Restrictor to Restrictor | 1 | $17.77 | Out of Stock | Notify Me |
| 17 | T2404180 Hose, Upper, Tank to Restrictor | Hose, Upper, Tank to Restrictor | 1 | $26.65 | Out of Stock | Notify Me |
| 18 | T2400854 Tank Mount Bush | Tank Mount Bush | 2 | $2.74 | Available to order | 2 |
