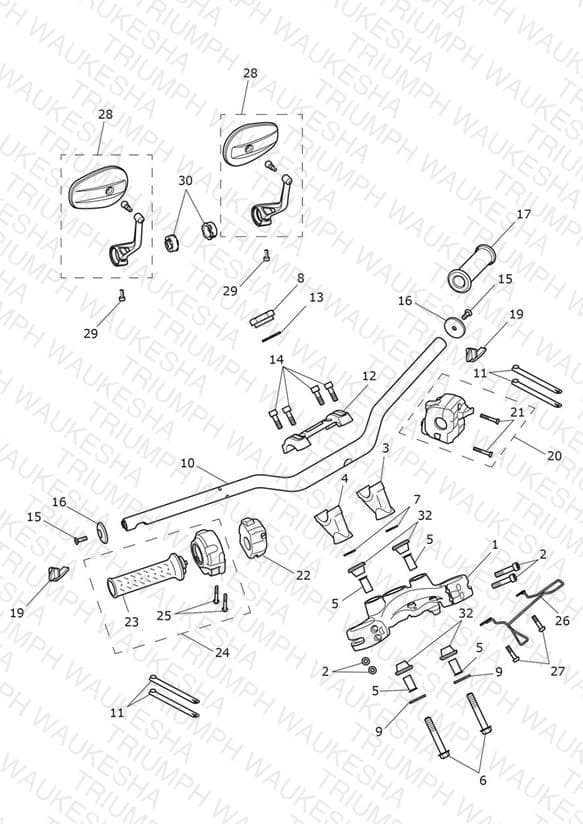

Handlebars, Top Yokes & Mirrors
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2043844 Upper Yoke | Upper Yoke | 1 | $279.46 | Available to order | 1 |
| 2 | T3051032 Screw, Cap/HD, M8 x 40, Slv | Screw, Cap/HD, M8 x 40, Slv | 4 | $1.61 | Available to order | 4 |
| 3 | T2043107 Riser, Hancllebar, LH | Riser, Hancllebar, LH | 1 | $46.89 | Available to order | 1 |
| 4 | T2043108 Riser, Handlebar, RH | Riser, Handlebar, RH | 1 | $46.89 | Available to order | 1 |
| 5 | T2045479 Flanged Sleeve | Flanged Sleeve | 4 | $5.45 | Out of Stock | Notify Me |
| 6 | T3205765 Bolt, HHF, M10 x 65, Slv | Bolt, HHF, M10 x 65, Slv | 2 | $4.38 | Available to order | 2 |
| 7 | T3550632 Washer, 10.5 x 21 x 2 | Washer, 10.5 x 21 x 2 | 2 | $3.14 | Available to order | 2 |
| 8 | T2049880 Nut, Upper Yoke, M25 | Nut, Upper Yoke, M25 | 1 | $25.33 | Available to order | 1 |
| 9 | T3555030 Washer, 10.5 x 30 x 2.5 | Washer, 10.5 x 30 x 2.5 | 2 | $7.08 | Available to order | 2 |
| 10 | T2044384 Handlebar, Tapered, Black | Handlebar, Tapered, Black | 1 | $230.88 | Available to order | 1 |
| 11 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 4 | $4.15 | Available to order | 4 |
| 12 | T2043408 Clamp, Handlebar | Clamp, Handlebar | 1 | $63.63 | Available to order | 1 |
| 13 | T2043415 Badge, Handlebar Clamp | Badge, Handlebar Clamp | 1 | $68.08 | Available to order | 1 |
| 14 | T3051097 Screw, Cap/Hd, M8 x 25, Silver | Screw, Cap/Hd, M8 x 25, Silver | 4 | $4.38 | Available to order | 4 |
| 15 | T3330923 Screw, Csk, M6 x 20, Slv, Enc | Screw, Csk, M6 x 20, Slv, Enc | 2 | $2.53 | Available to order | 2 |
| 16 | T2042476 Bar End Finisher | Bar End Finisher | 2 | $23.35 | Available to order | 2 |
| 17 | T2045139 Grip, Handlebar, LH | Grip, Handlebar, LH | 1 | $27.63 | Available to order | 1 |
| 19 | T2045856 Plastic Plug, 22.2 | Plastic Plug, 22.2 | 2 | $2.40 | Available to order | 2 |
| 20 | T2045772 Switchcube, LH, DRL | Switchcube, LH, DRL All Expt CA, CN & US | 1 | $313.34 | Backorder — Early October 2026 | 1 |
| 20 | T2044534 Switchcube, LH, Non-DRL | Switchcube, LH, Non-DRL CA, CN & US | 1 | $281.24 | Available to order | 1 |
| 21 | T3331857 Screw, Torx, M4 x 0.7 x 18, Blk | Screw, Torx, M4 x 0.7 x 18, Blk | 2 | $1.90 | Out of Stock | Notify Me |
| 22 | T2043559 Switchcube, RH | Switchcube, RH | 1 | $271.09 | Available to order | 1 |
| 23 | T2044707 Grip, RH | Grip, RH | 2 | $27.63 | Available to order | 2 |
| 24 | T2046075 APS Sensor, Assy | APS Sensor, Assy | 1 | $256.53 | Available to order | 1 |
| 25 | T3050314 Bolt, M5 x 20 | Bolt, M5 x 20 | 2 | $7.48 | Available to order | 2 |
| 26 | T2046786 Wire Guide | Wire Guide | 1 | $21.19 | Available to order | 1 |
| 27 | T3050331 Screw, Cap/Hd, M6 x 16, Slv, Enc | Screw, Cap/Hd, M6 x 16, Slv, Enc | 2 | $2.50 | Available to order | 2 |
| 28 | T2060314 Mirror, Bar End, Assy | Mirror, Bar End, Assy | 2 | $85.05 | Available to order | 2 |
| 29 | T3050159 Capscrew, SKT HD, M6 x 20, SS | Capscrew, SKT HD, M6 x 20, SS | 2 | $5.47 | Available to order | 2 |
| 30 | T2060499 Friction Ring, 22.2 | Friction Ring, 22.2 | 2 | $36.96 | Available to order | 2 |
| 32 | T2042136 Rubber Bush, Handlebar Clamp | Rubber Bush, Handlebar Clamp | 4 | $8.79 | Available to order | 4 |
