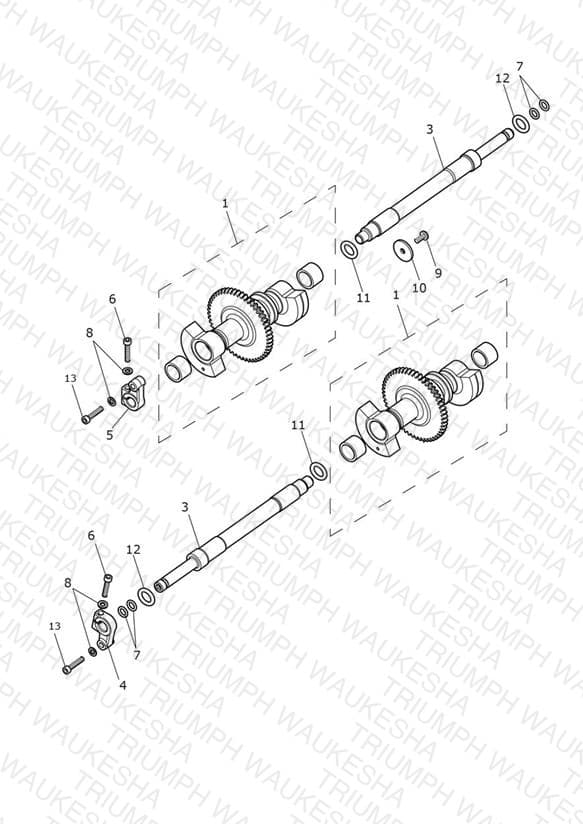

Balancer
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1203010 Balancer Shaft Assy | Balancer Shaft Assy | 2 | $519.31 | Available to order | 2 |
| 3 | T1204444 Dead Shaft, Balancer, Eccentric | Dead Shaft, Balancer, Eccentric | 2 | $98.85 | Available to order | 2 |
| 4 | T1202001 Clamp, Dead Shaft, Front | Clamp, Dead Shaft, Front | 1 | $25.76 | Available to order | 1 |
| 5 | T1202002 Clamp, Dead Shaft, Rear | Clamp, Dead Shaft, Rear | 1 | $25.76 | Available to order | 1 |
| 6 | T3051061 Screw, Cap/Hd, M6 x 30, Slv | Screw, Cap/Hd, M6 x 30, Slv | 2 | $5.14 | Available to order | 2 |
| 7 | T3600216 O Ring, ID 9.8 x 3 | O Ring, ID 9.8 x 3 | 4 | $2.69 | Available to order | 4 |
| 8 | T3555017 Washer, 6.5 x 12.5 x 0.8 | Washer, 6.5 x 12.5 x 0.8 | 4 | $3.04 | Available to order | 4 |
| 9 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 1 | $1.40 | Available to order | 1 |
| 10 | T3550725 Washer, 6.4 x 28 x 2 | Washer, 6.4 x 28 x 2 | 1 | $3.50 | Available to order | 1 |
| 11 | T3600191 O Ring, 16 x 2 | O Ring, 16 x 2 | 2 | $3.77 | Available to order | 2 |
| 12 | T3600163 O Ring, ID 19 x 3 | O Ring, ID 19 x 3 | 2 | $12.61 | Available to order | 2 |
| 13 | T3051135 Screw, Cap/Hd, M6 x 30, Enc | Screw, Cap/Hd, M6 x 30, Enc | 2 | $1.06 | Available to order | 2 |
