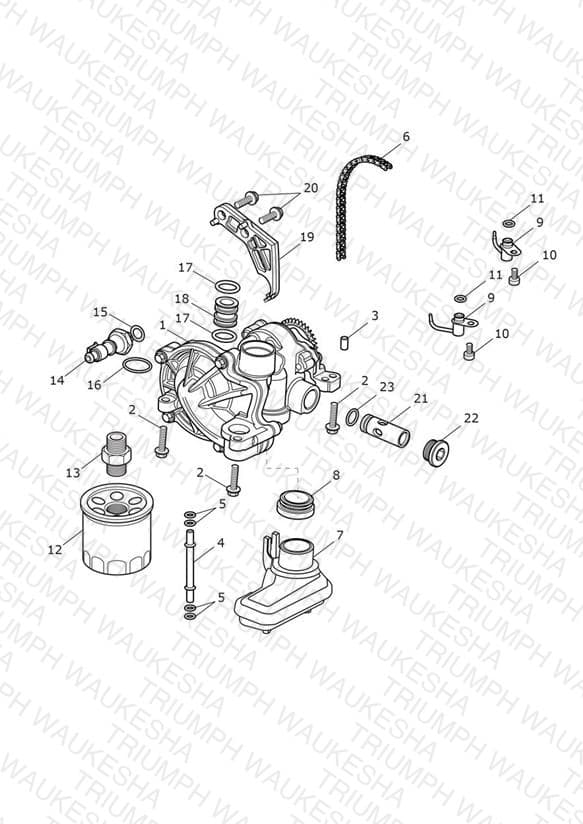

Lubrication System
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1210333 Pump Assembly, Oil/Water | Pump Assembly, Oil/Water | 1 | $387.29 | Available to order | 1 |
| 2 | T3200134 Bolt, RHHF, M6x25, Encaps | Bolt, RHHF, M6x25, Encaps | 3 | $2.74 | Out of Stock | Notify Me |
| 3 | T3000032 Dowel, Dia 6 x 10.8 | Dowel, Dia 6 x 10.8 | 1 | $6.45 | Available to order | 1 |
| 4 | T1210249 Pump Drain Tube | Pump Drain Tube | 1 | $5.98 | Available to order | 1 |
| 5 | T3600109 O Ring, ID 5.6 x 2.3 | O Ring, ID 5.6 x 2.3 | 4 | $5.30 | Available to order | 4 |
| 6 | T1210370 Chain, Auxiliary Drive, Silent | Chain, Auxiliary Drive, Silent | 1 | $45.06 | Available to order | 1 |
| 7 | T1210315 Oil Strainer | Oil Strainer | 1 | $46.68 | Available to order | 1 |
| 8 | T3600128 Seal, Oil, Strainer | Seal, Oil, Strainer | 1 | $7.71 | Available to order | 1 |
| 9 | T1210666 Oil Sprayjet, Piston | Oil Sprayjet, Piston | 2 | $18.57 | Available to order | 2 |
| 10 | T3051063 Screw, Cap/Hd, M6 x 16, Enc, Raw | Screw, Cap/Hd, M6 x 16, Enc, Raw | 2 | $0.57 | Available to order | 2 |
| 11 | T3600176 O Ring, 6.1 x 1.6 | O Ring, 6.1 x 1.6 | 2 | $2.95 | Available to order | 2 |
| 12 | T1218001 Oil Filter, OES | Oil Filter, OES | 1 | $17.96 | Available to order | 1 |
| 12 | T1210440 Oil Filter Multipack (24) | Oil Filter Multipack (24) | 1 | $379.33 | Available to order | 1 |
| 12 | T1210443 Oil Filter Multipack (80) | Oil Filter Multipack (80) | 1 | $1197.37 | Available to order | 1 |
| 13 | T1210299 Adaptor, Spin-On Oil Filter | Adaptor, Spin-On Oil Filter | 1 | $17.28 | Out of Stock | Notify Me |
| 14 | T1210091 Oil Pressure Switch, M10 | Oil Pressure Switch, M10 | 1 | $50.37 | Available to order | 1 |
| 15 | T3550546 Washer, Cu, OD 16 x ID 10.2/ | Washer, Cu, OD 16 x ID 10.2/ | 1 | $0.89 | Available to order | 1 |
| 16 | T3600290 O Ring, 23.7 x 2 | O Ring, 23.7 x 2 | 1 | $1.40 | Available to order | 1 |
| 17 | T3600117 O Ring 17 x 3 | O Ring 17 x 3 | 2 | $7.14 | Available to order | 2 |
| 18 | T1210733 Pipe, Oil Pump Outlet | Pipe, Oil Pump Outlet | 1 | $57.03 | Available to order | 1 |
| 19 | T1210921 Guide, Auxiliary Drive | Guide, Auxiliary Drive Included in Selector Mechanism Kit 1191977 | 1 | $11.41 | Available to order | 1 |
| 20 | T3205094 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc Included in Selector Mechanism Kit 1191977 | 2 | $5.69 | Backorder — Mid August 2026 | 2 |
| 21 | T1210306 Pressure Relief Valve | Pressure Relief Valve | 1 | $37.15 | Available to order | 1 |
| 22 | T1210307 Plug, Pressure Relief Valve | Plug, Pressure Relief Valve | 1 | $18.99 | Available to order | 1 |
| 23 | T3600217 O Ring, 12.6 ID x 2.4 | O Ring, 12.6 ID x 2.4 | 1 | $3.39 | Available to order | 1 |
