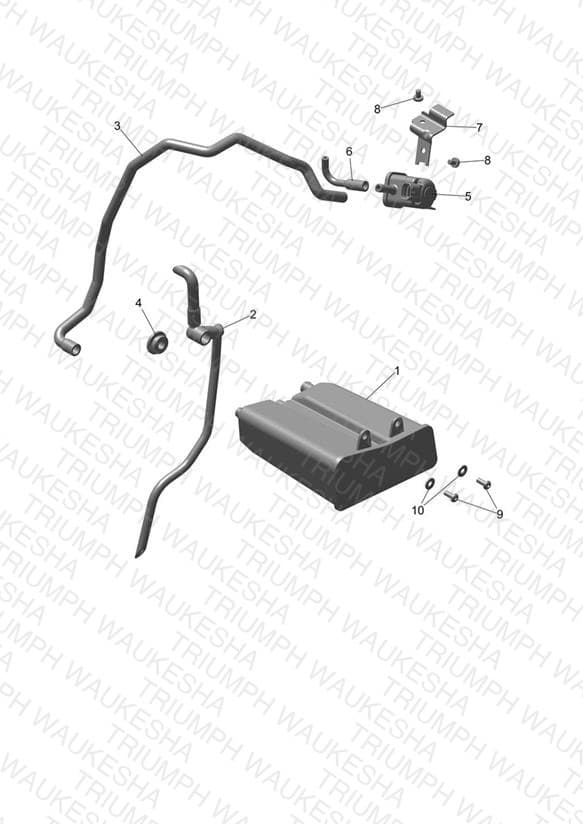

Evap System
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2403030 Carbon Cannister | Carbon Cannister | 1 | $119.76 | Available to order | 1 |
| 2 | T1240392 Hose, Drain, Snorkel | Hose, Drain, Snorkel | 1 | $26.65 | Out of Stock | Notify Me |
| 3 | T1242156 Hose, Formed, Canisterto Solenoid | Hose, Formed, Canisterto Solenoid | 1 | $22.21 | Out of Stock | Notify Me |
| 4 | T3020135 Rubber Grommet | Rubber Grommet | 1 | $1.91 | Available to order | 1 |
| 5 | T1248990 Purge Valve | Purge Valve | 1 | $66.52 | Available to order | 1 |
| 6 | T1242155 Hose, Formed, Solenoid to Throttle Bodies | Hose, Formed, Solenoid to Throttle Bodies | 1 | $17.77 | Out of Stock | Notify Me |
| 7 | T2403693 Bracket, Purge Valve | Bracket, Purge Valve | 1 | $2.67 | Out of Stock | Notify Me |
| 8 | T3330344 Bolt, Pan/Hd, M5 x 8, SS, Enc | Bolt, Pan/Hd, M5 x 8, SS, Enc | 2 | $7.81 | Available to order | 2 |
| 9 | T3332656 Screw, Button, M5 x 12, Enc | Screw, Button, M5 x 12, Enc | 2 | $1.11 | Available to order | 2 |
| 10 | T3555050 Washer, 5.3 x 12.5mm | Washer, 5.3 x 12.5mm | 2 | $0.97 | Available to order | 2 |
