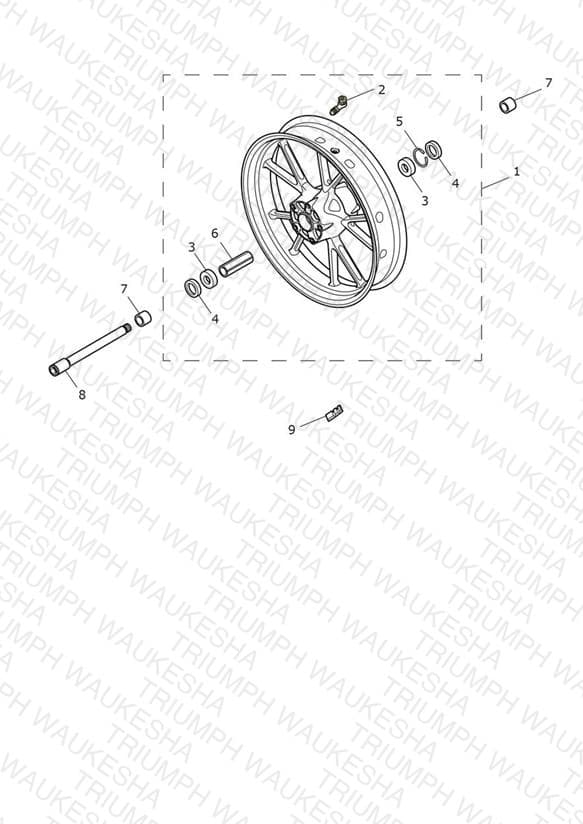

Front Wheel
Parts (9)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2005408 Front Wheel Spares Assembly | Front Wheel Spares Assembly | 1 | $1138.15 | Available to order | 1 |
| 2 | T2006635 Valve Assy, Alum, 90, Black | Valve Assy, Alum, 90, Black | 1 | $16.04 | Available to order | 1 |
| 3 | T3800702 Bearing Ball, 20 42 12 | Bearing Ball, 20 42 12 | 2 | $38.50 | Available to order | 2 |
| 4 | T3600703 Oil Seal, 30 42 6 | Oil Seal, 30 42 6 | 2 | $12.38 | Available to order | 2 |
| 5 | T3500401 Circlip, Int Dia 42 | Circlip, Int Dia 42 | 1 | $16.04 | Available to order | 1 |
| 6 | T2000927 Spacer, Wheel, 20 87 | Spacer, Wheel, 20 87 | 1 | $42.00 | Available to order | 1 |
| 7 | T2001422 Spacer, 30 OD, 20.2 ID | Spacer, 30 OD, 20.2 ID | 2 | $7.18 | Available to order | 2 |
| 8 | T2000926 Spindle, Front, M18 x 20 | Spindle, Front, M18 x 20 | 1 | $91.26 | Available to order | 1 |
| 9 | T2006699 Wheel Weight, 5 Gram | Wheel Weight, 5 Gram | — | $7.90 | Available to order | 1 |
