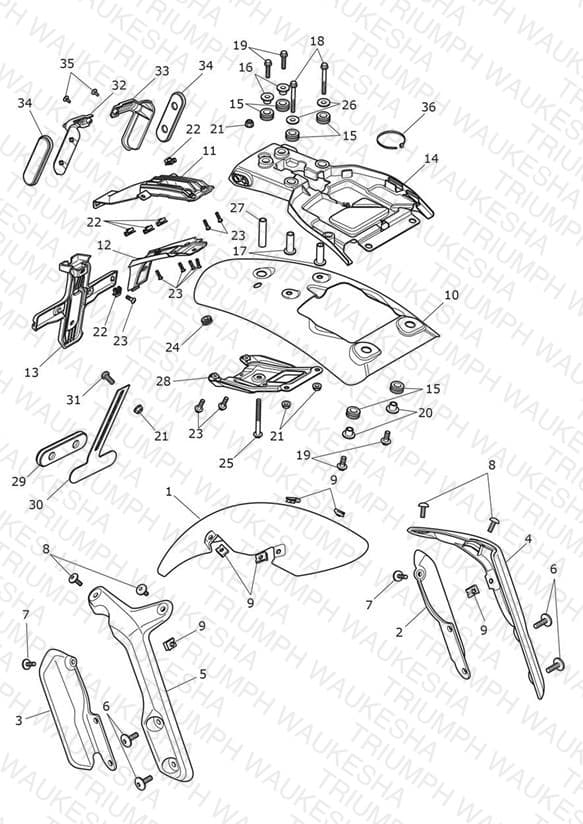

Mudguards
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2311465 Front Mudguard, Aluminium | Front Mudguard, Aluminium | 1 | $271.32 | Available to order | 1 |
| 2 | T2311448 Finisher, Front Mudguard, LH | Finisher, Front Mudguard, LH | 1 | $26.65 | Available to order | 1 |
| 3 | T2311449 Finisher, Front Mudguard, RH | Finisher, Front Mudguard, RH | 1 | $26.65 | Available to order | 1 |
| 4 | T2312911-PM Support, Mudguard, LHF, Sapphire Black | Support, Mudguard, LHF, Sapphire Black | 1 | $78.33 | Out of Stock | Notify Me |
| 5 | T2312910-PM Support, Mudguard, RHF, Sapphire Black | Support, Mudguard, RHF, Sapphire Black | 1 | — | Unavailable | View Details |
| 6 | T3330312 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 4 | $3.59 | Backorder — Late August 2026 | 4 |
| 7 | T3330960 Screw, But/Hd, M5 x 12, Slv Enc | Screw, But/Hd, M5 x 12, Slv Enc | 2 | $3.52 | Available to order | 2 |
| 8 | T3330955 Screw, But/Hd, M5 x 14, Slv, Enc | Screw, But/Hd, M5 x 14, Slv, Enc | 4 | $8.46 | Available to order | 4 |
| 9 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 6 | $4.55 | Available to order | 6 |
| 10 | T2311451 Mudguard, Rear, Pressed, Aluminium | Mudguard, Rear, Pressed, Aluminium | 1 | $203.74 | Backorder — Early August 2026 | 1 |
| 11 | T2312804 Reg Plate Support, Upper, Moulding | Reg Plate Support, Upper, Moulding | 1 | $35.52 | Out of Stock | Notify Me |
| 12 | T2312805 Reg Plate Support, Lower, Moulding | Reg Plate Support, Lower, Moulding | 1 | $31.10 | Out of Stock | Notify Me |
| 13 | T2312806 Reg Plate Support, Cross, Moulding | Reg Plate Support, Cross, Moulding | 1 | $32.86 | Out of Stock | Notify Me |
| 14 | T2310546 Tray, ECU, Mldg | Tray, ECU, Mldg | 1 | $42.14 | Available to order | 1 |
| 15 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 6 | $2.85 | Available to order | 6 |
| 16 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 2 | $5.78 | Available to order | 2 |
| 17 | T3010303 Flanged Sleeve, M6 x 30 | Flanged Sleeve, M6 x 30 | 2 | $7.19 | Available to order | 2 |
| 18 | T3205093 Bolt, HHF, Lghtd, M6 x 50, Slv | Bolt, HHF, Lghtd, M6 x 50, Slv | 2 | $6.73 | Backorder — Mid September 2026 | 2 |
| 19 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 4 | $2.46 | Available to order | 4 |
| 20 | T3013360 Flanged Sleeve, M6 x 12 | Flanged Sleeve, M6 x 12 | 2 | $6.94 | Available to order | 2 |
| 21 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 4 | $0.67 | Available to order | 4 |
| 22 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 3 | $3.39 | Available to order | 3 |
| 23 | T3332656 Screw, Button, M5 x 12, Enc | Screw, Button, M5 x 12, Enc | 7 | $1.11 | Available to order | 7 |
| 24 | T3020021 Grommet, Id 8.5, Od 10.5 | Grommet, Id 8.5, Od 10.5 | 1 | $2.74 | Available to order | 1 |
| 25 | T3205075 Bolt, HHF, Lghtd, M6 x 65, Slv | Bolt, HHF, Lghtd, M6 x 65, Slv | 1 | $3.77 | Available to order | 1 |
| 26 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 2 | $1.21 | Available to order | 2 |
| 27 | T3010719 Spacer, 6.6 x 12 x 47.6 | Spacer, 6.6 x 12 x 47.6 | 1 | $7.46 | Available to order | 1 |
| 28 | T2302366 Bracket, Mudguard Support, Pressed | Bracket, Mudguard Support, Pressed | 1 | $146.85 | Available to order | 1 |
| 29 | T2700443 Reflector, Oval, Red | Reflector, Oval, Red | 1 | $6.14 | Available to order | 1 |
| 30 | T2702536 Bracket, Reflector, Long | Bracket, Reflector, Long DE, ES, FR, IT, NL, SE, IN | 1 | $30.70 | Backorder — Late August 2026 | 1 |
| 30 | T2708019 Bracket, Reflector, Short | Bracket, Reflector, Short All Excpt DE, ES, FR, IT, NL, SE, IN | 1 | $26.87 | Available to order | 1 |
| 31 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 1 | $2.63 | Available to order | 1 |
| 32 | T2702025 Bracket, Side Reflector, RH | Bracket, Side Reflector, RH US, CA, AR, ZA, ID & KR | 1 | $30.70 | Available to order | 1 |
| 33 | T2702026 Bracket, Side Reflector, LH | Bracket, Side Reflector, LH US, CA, AR, ZA, ID & KR | 1 | $30.70 | Available to order | 1 |
| 35 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT US, CA, AR, ZA, ID & KR | 2 | $0.75 | Available to order | 2 |
| 36 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 3 | $0.89 | Available to order | 3 |
| 37 | T3020073 Grommet, Rubber, Cone | Grommet, Rubber, Cone | 1 | $4.36 | Available to order | 1 |
