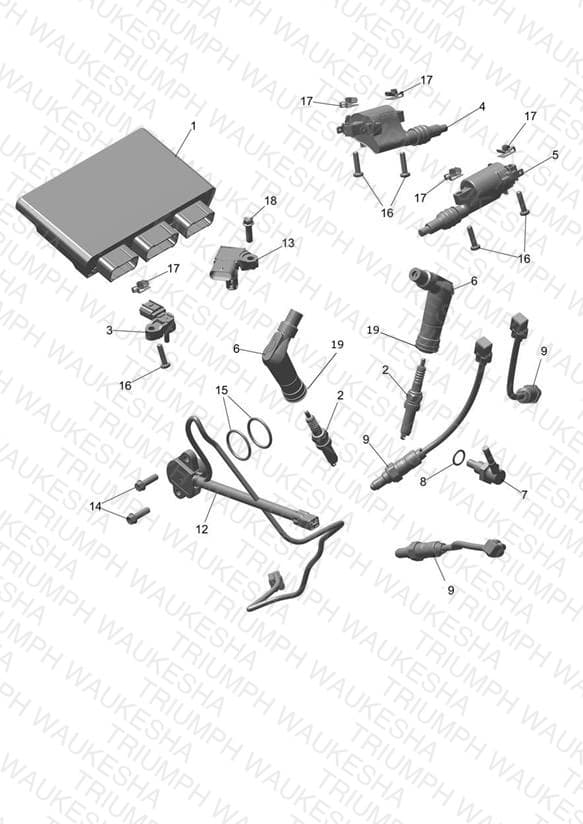

Engine Management System
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1293275 ECU Base | ECU Base | 1 | $1068.86 | Backorder — Late August 2026 | 1 |
| 2 | T1290745 Spark Plug, M10 x 26.5, Hex 14 | Spark Plug, M10 x 26.5, Hex 14 | 2 | $10.62 | Available to order | 2 |
| 3 | T1290975 Air Pressure Sensor | Air Pressure Sensor | 1 | $144.49 | Available to order | 1 |
| 4 | T1294120 Ignition Coil | Ignition Coil | 1 | $161.71 | Backorder — Mid August 2026 | 1 |
| 5 | T1294135 Ignition Coil, Long | Ignition Coil, Long | 1 | $194.99 | Out of Stock | Notify Me |
| 6 | T1290990 Cap, Spark Plug | Cap, Spark Plug Includes Seal T1290882 | 2 | $17.49 | Available to order | 2 |
| 7 | T1294225 Sensor, Water Temperature | Sensor, Water Temperature | 1 | $53.40 | Available to order | 1 |
| 8 | T3550571 Washer, Cu, OD 16 x ID 12.5 | Washer, Cu, OD 16 x ID 12.5 | 1 | $5.07 | Available to order | 1 |
| 9 | T2204258 Oxygen Sensor, PT, M12, 250mm | Oxygen Sensor, PT, M12, 250mm | 2 | $225.21 | Available to order | 2 |
| 12 | T1295678 Gear Position Sensor | Gear Position Sensor | 1 | $119.76 | Available to order | 1 |
| 13 | T1290788 Sensor, TMap | Sensor, TMap | 1 | $53.64 | Out of Stock | Notify Me |
| 14 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 15 | T3600267 O Ring, ID 26.65 x Dia 2.62 | O Ring, ID 26.65 x Dia 2.62 | 2 | $1.51 | Available to order | 2 |
| 16 | T3330648 Screw, Pan/Hd, Tx, M5 x 20, Slv | Screw, Pan/Hd, Tx, M5 x 20, Slv | 5 | $2.63 | Available to order | 5 |
| 17 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 5 | $3.39 | Available to order | 5 |
| 18 | T3205094 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc | 1 | $5.69 | Backorder — Mid August 2026 | 1 |
| 19 | T1290882 Seal, Spark Plug Cap | Seal, Spark Plug Cap | 2 | $6.65 | Available to order | 2 |
