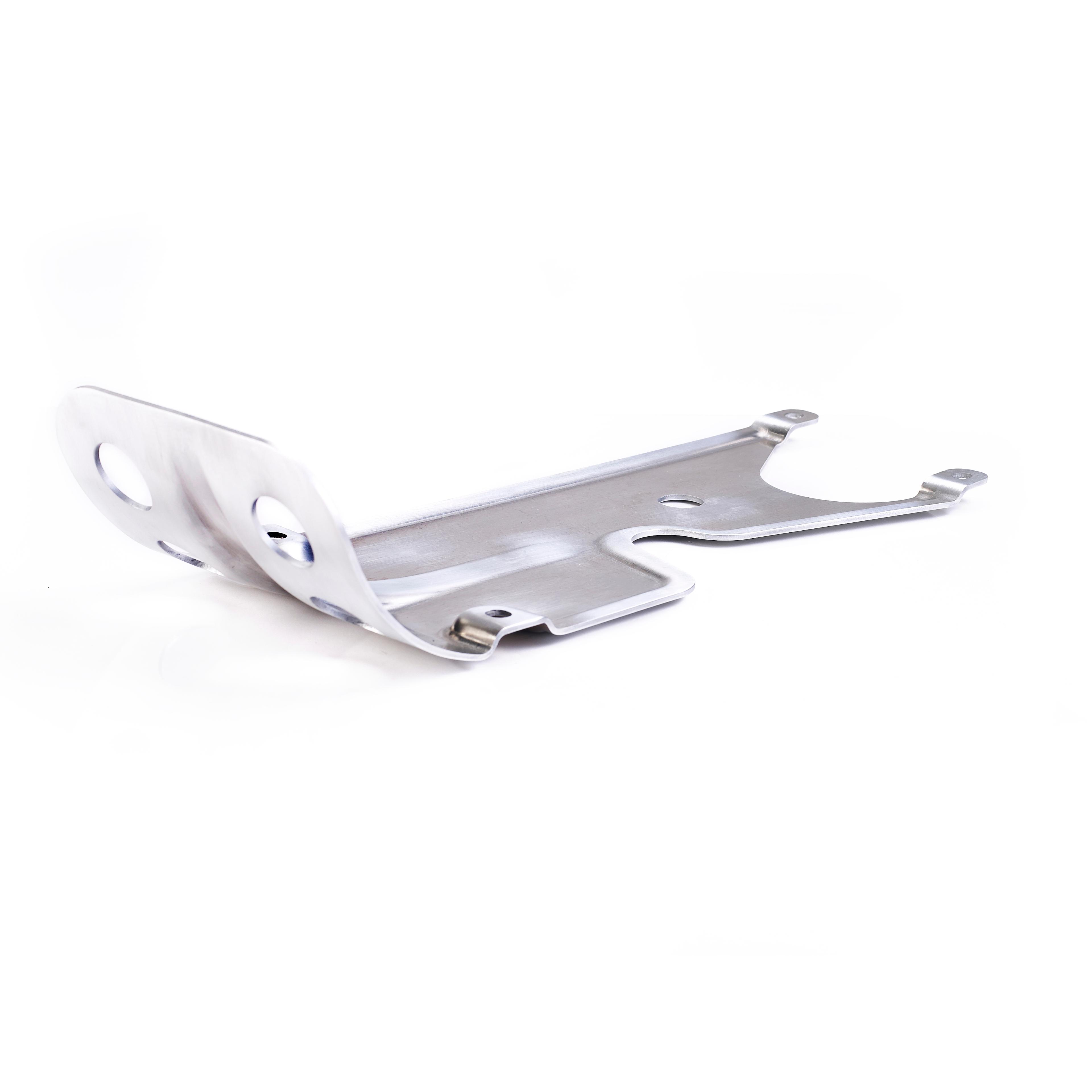

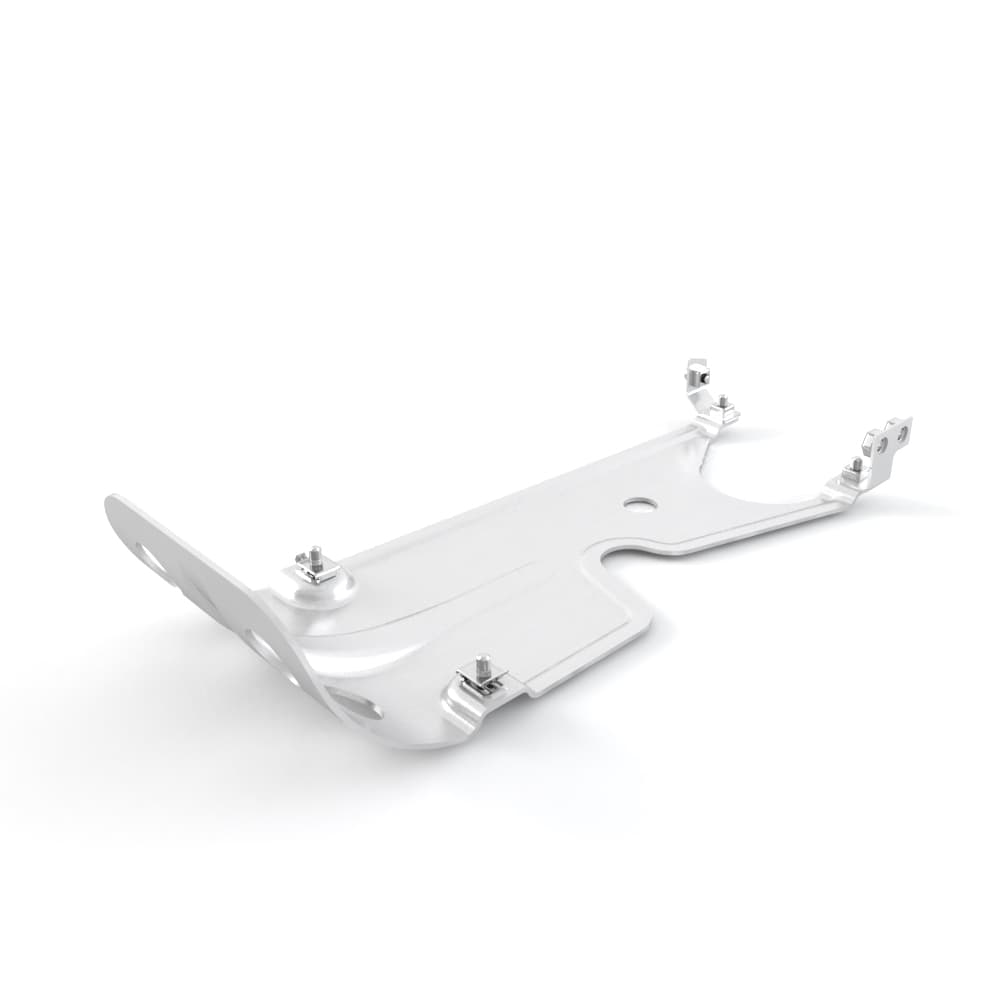

Sump Plate, Aluminium, Clear

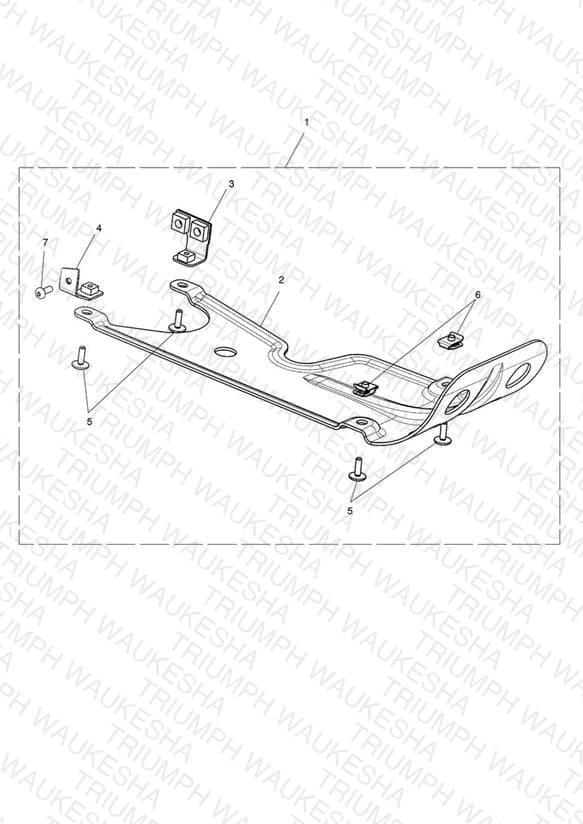

Schematic
Parts (7)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9708340 Sump Plate, Aluminium, Clear | Sump Plate, Aluminium, Clear | 1 | $305.00 | Available to order | 1 |
| 2 | T9700369 Sump Plate, Pressing, Clear | Sump Plate, Pressing, Clear | 1 | $222.48 | Out of Stock | Notify Me |
| 3 | T9700370 Bracket, Sump Plate, LH | Bracket, Sump Plate, LH | 1 | $15.57 | Available to order | 1 |
| 4 | T9700371 Bracket, Sump Plate, RH | Bracket, Sump Plate, RH | 1 | $14.46 | Available to order | 1 |
| 5 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 4 | $3.39 | Available to order | 4 |
| 6 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 2 | $4.92 | Backorder — Early August 2026 | 2 |
| 7 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 1 | $0.97 | Available to order | 1 |
