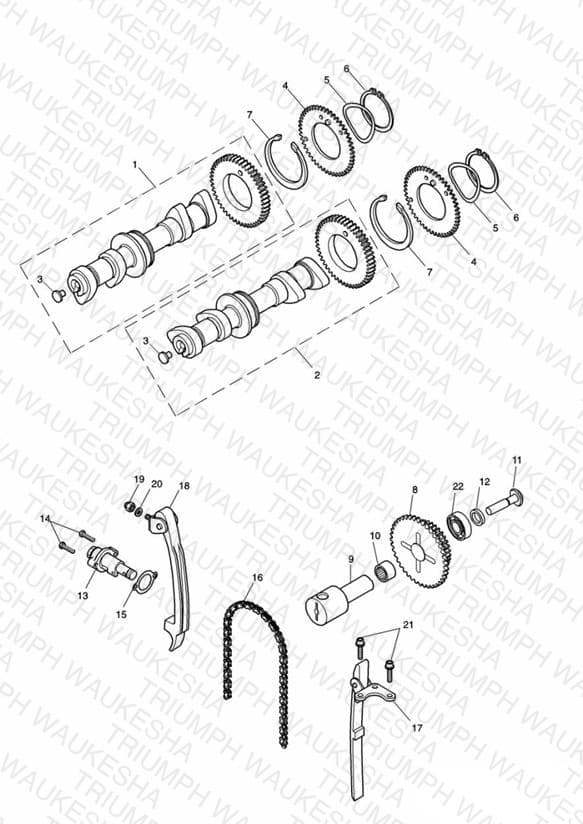

Camshaft and Drives 186921 »
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1140985 Camshaft Assy, Inlet | Camshaft Assy, Inlet Eng No 211133> | 1 | $422.46 | Available to order | 1 |
| 1 | T1141909 Camshaft, Sub Assy, Inlet | Camshaft, Sub Assy, Inlet > Eng No 211132 | 1 | $422.46 | Out of Stock | Notify Me |
| 2 | T1140995 Camshaft Assy, Exh, 2 | Camshaft Assy, Exh, 2 Eng No 211133> | 1 | $422.46 | Available to order | 1 |
| 2 | T1141915 Camshaft, Sub Assy, Exhaust | Camshaft, Sub Assy, Exhaust > Eng No 211132 | 1 | $422.46 | Out of Stock | Notify Me |
| 3 | T1140740 Plug, Cup Type, 8.0mm | Plug, Cup Type, 8.0mm | 4 | $3.04 | Available to order | 4 |
| 4 | T1140019 Gear, Backlash Eliminator, 48T | Gear, Backlash Eliminator, 48T | 2 | $92.25 | Available to order | 2 |
| 5 | T3550910 Washer Wave Spring | Washer Wave Spring | 2 | $4.45 | Available to order | 2 |
| 6 | T3500211 Circlip, Ext, 37 x 1.75c | Circlip, Ext, 37 x 1.75c | 2 | $1.21 | Available to order | 2 |
| 7 | T1140058 Torsion Spring, 2.8mm | Torsion Spring, 2.8mm | 2 | $7.02 | Available to order | 2 |
| 8 | T1141620 Idler Assy, Gear & Sprocket | Idler Assy, Gear & Sprocket | 1 | $239.57 | Available to order | 1 |
| 9 | T1143490 Shaft, Idler, Cam, Shouldered | Shaft, Idler, Cam, Shouldered | 1 | $64.62 | Available to order | 1 |
| 10 | T3800065 Bearing, Needle Roller, HK1512 | Bearing, Needle Roller, HK1512 | 1 | $12.04 | Available to order | 1 |
| 11 | T3051006 Bolt, But/HD, Skt, M8 x 35, Raw | Bolt, But/HD, Skt, M8 x 35, Raw | 1 | $6.65 | Available to order | 1 |
| 12 | T3551050 Washer, Hardened, ID12 | Washer, Hardened, ID12 | 1 | $3.39 | Available to order | 1 |
| 13 | T1140160 Tensioner, Cam Chain, Black | Tensioner, Cam Chain, Black | 1 | $192.02 | Backorder — Late August 2026 | 1 |
| 14 | T3203025 Bolt, RHHF, Domed, M6 x 25, S/S | Bolt, RHHF, Domed, M6 x 25, S/S | 2 | $2.10 | Available to order | 2 |
| 15 | T1140187 Gasket, Tensioner | Gasket, Tensioner | 1 | $2.81 | Available to order | 1 |
| 16 | T1140920 Chain, Cam Drive, 134 Links | Chain, Cam Drive, 134 Links | 1 | $127.38 | Available to order | 1 |
| 17 | T1140921 Blade, Rubbing, Camchain | Blade, Rubbing, Camchain | 1 | $80.81 | Available to order | 1 |
| 18 | T1140922 Blade, Tensioner, Camchain | Blade, Tensioner, Camchain | 1 | $110.28 | Available to order | 1 |
| 19 | T3350044 Domenut, Locking, M6 | Domenut, Locking, M6 | 1 | $2.22 | Available to order | 1 |
| 20 | T3550542 Washer, Cu, OD12.5 x Id6.4 | Washer, Cu, OD12.5 x Id6.4 | 1 | $1.05 | Available to order | 1 |
| 21 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 2 | $2.10 | Available to order | 2 |
| 22 | T3800140 Bearing, Ball | Bearing, Ball | 1 | $12.04 | Available to order | 1 |
