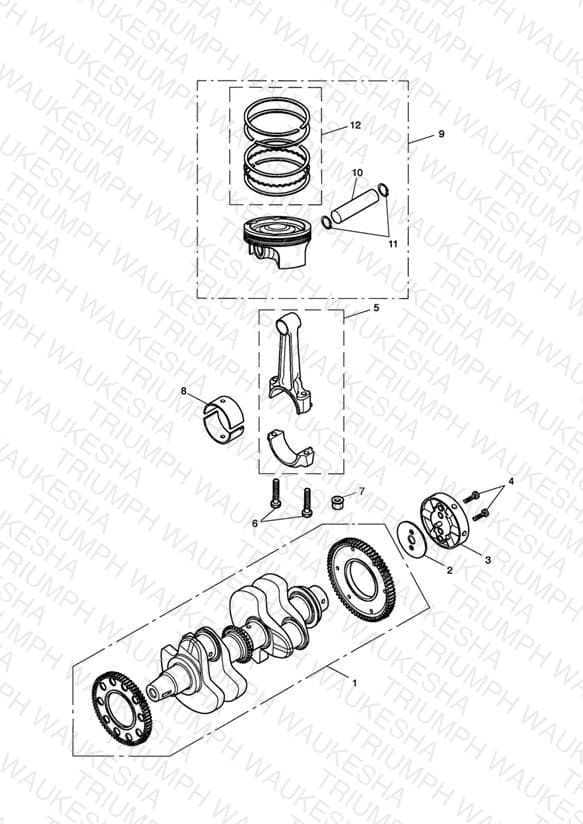

Crankshaft,Conn Rods & Pistons Eng No 211133 >
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1100914 Crankshaft Assy | Crankshaft Assy > Eng No 238074 | 1 | $974.95 | Obsolete | View Details |
| 1 | T1100917 Crankshaft Assy, 270° | Crankshaft Assy, 270° Eng No 238075 > | 1 | $1302.68 | Available to order | 1 |
| 2 | T1100913 Spacer, Crankshaft | Spacer, Crankshaft | 1 | $15.77 | Available to order | 1 |
| 3 | T1100105 Centrifugal Breather | Centrifugal Breather > Eng No 221606 | 1 | $66.52 | Available to order | 1 |
| 4 | T3330186 Screw, Pan HD, Tx, M6 x 25, Slv | Screw, Pan HD, Tx, M6 x 25, Slv > Eng No 221606 | 2 | $3.17 | Available to order | 2 |
| 4 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc Eng No 221607 > | 2 | $1.40 | Available to order | 2 |
| 5 | T1110111 Con Rod Assy, Short Stroke | Con Rod Assy, Short Stroke | 2 | $172.95 | Available to order | 2 |
| 6 | T1110301 Conrod Bolt, M8 x 0.75 x 42 | Conrod Bolt, M8 x 0.75 x 42 Use with con Rod T1110500 only | 4 | $13.18 | Available to order | 4 |
| 6 | T1110060 Bolt Con Rod | Bolt Con Rod Use with con Rod T1110111 only | 4 | $10.55 | Backorder — Mid August 2026 | 4 |
| 7 | T1110016 Nut, Con Rod | Nut, Con Rod Use with con Rod T1110111 only | 4 | $9.69 | Available to order | 4 |
| 8 | T1110054 Bearing, Con Rod Shell, White | Bearing, Con Rod Shell, White | 2 | $10.18 | Available to order | 2 |
| 8 | T1110055 Bearing, Con Rod Shell, Red | Bearing, Con Rod Shell, Red | 2 | $12.70 | Available to order | 2 |
| 8 | T1110056 Bearing Con Rod Shell, Blue | Bearing Con Rod Shell, Blue Use with con Rod T1110111 only | 2 | $12.70 | Available to order | 2 |
| 9 | T1121015 Piston Assy | Piston Assy | 2 | $247.17 | Available to order | 2 |
| 10 | T1121060 Gudgeon Pin | Gudgeon Pin | 2 | $13.18 | Available to order | 2 |
| 11 | T1121072 Circlip, Piston | Circlip, Piston | 4 | $2.37 | Available to order | 4 |
| 12 | T1121055 Piston Ring Set | Piston Ring Set | 2 | $117.87 | Available to order | 2 |
