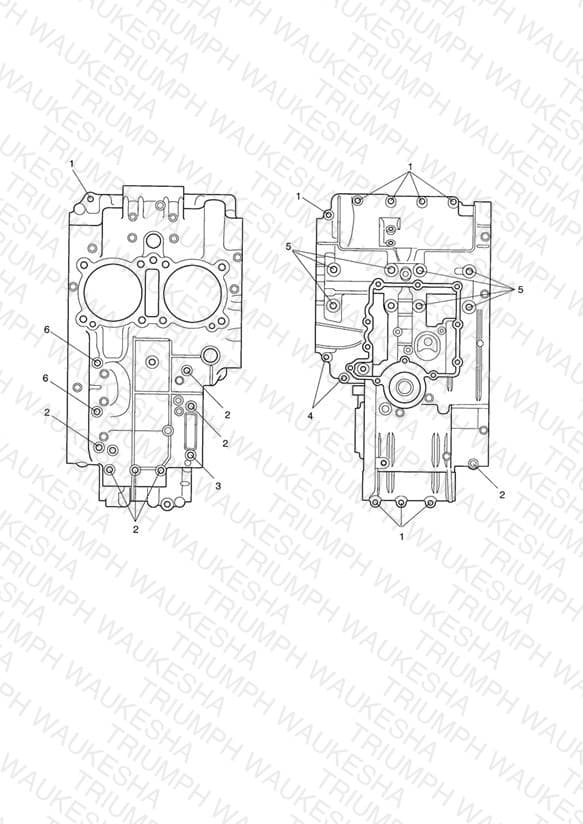

Crankcase Fixings
Parts (8)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T3202319 Bolt, HHF, M8 x 35, Slv | Bolt, HHF, M8 x 35, Slv | 9 | $2.63 | Available to order | 9 |
| 2 | T3202323 Bolt, HHF, M8 x 80, Slv | Bolt, HHF, M8 x 80, Slv > Eng No 221606 | 9 | $1.62 | Available to order | 9 |
| 3 | T3202321 Bolt, HHF, M8 x110, Slv | Bolt, HHF, M8 x110, Slv | 1 | $4.36 | Available to order | 1 |
| 4 | T3202325 Bolt, HHF, M8 x 43, Slv | Bolt, HHF, M8 x 43, Slv | 2 | $1.62 | Available to order | 2 |
| 5 | T3330908 Bolt | Bolt » ENG NO 167454 M10 x 120mm | 8 | $6.28 | Obsolete | View Details |
| 5 | T3330950 Bolt, TORX, PH, M10 x 118.5 | Bolt, TORX, PH, M10 x 118.5 ENG NO 167455 » Eng no 326093 | 8 | $7.52 | Available to order | 8 |
| 5 | T3330980 Bolt, Torx, M10 x 120.5, Plated | Bolt, Torx, M10 x 120.5, Plated Eng no 326094 > | 8 | $7.62 | Available to order | 8 |
| 6 | T3202311 Bolt, HHF, M8 x 130, Slv | Bolt, HHF, M8 x 130, Slv Eng No 221607 > | 2 | $8.18 | Available to order | 2 |
