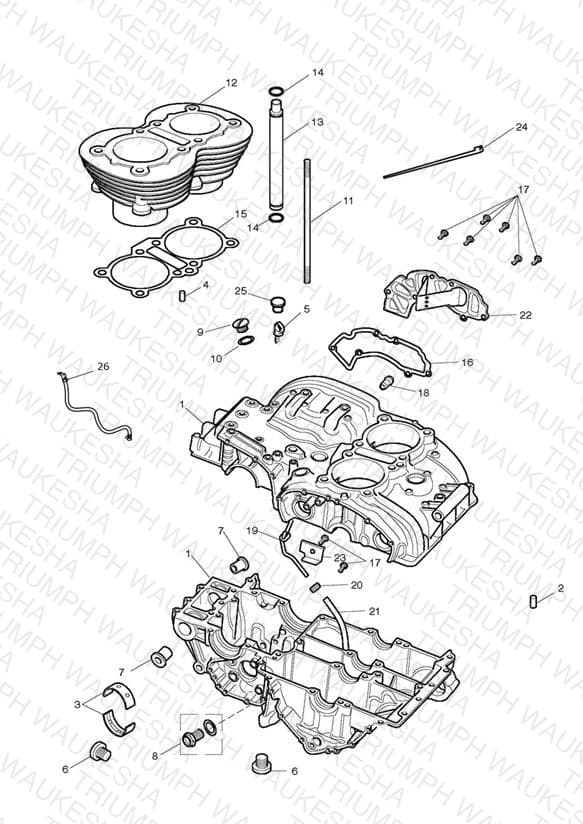

Crankcase & Fittings from Eng No 221607
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1160158 Crankcase Kit, Blk/Blk | Crankcase Kit, Blk/Blk | 1 | $5351.55 | Out of Stock | Notify Me |
| 2 | T3000102 Dowel, Hollow, 10 x 14 | Dowel, Hollow, 10 x 14 | 4 | $1.79 | Available to order | 4 |
| 3 | T1160750 Main Bearing Shell, Grooved | Main Bearing Shell, Grooved White | — | $12.70 | Available to order | 1 |
| 3 | T1160751 Main Bearing Shell, Grooved | Main Bearing Shell, Grooved Red | — | $12.70 | Available to order | 1 |
| 3 | T1160752 Main Bearing Shell, Grooved | Main Bearing Shell, Grooved Blue | — | $12.70 | Available to order | 1 |
| 3 | T1160753 Main Bearing Shell, Grooved | Main Bearing Shell, Grooved Green | — | $12.70 | Available to order | 1 |
| 4 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 2 | $3.90 | Available to order | 2 |
| 5 | T3700909 Clip, Cable, M10 Fir Tree | Clip, Cable, M10 Fir Tree > Eng No 252425 | 1 | $3.70 | Available to order | 1 |
| 6 | T3450005 Plug, NPSI 3/8 Dryseal | Plug, NPSI 3/8 Dryseal | 4 | $6.65 | Available to order | 4 |
| 7 | T2056859 Bush, S/Arm Pivot, 230M07 | Bush, S/Arm Pivot, 230M07 | 2 | $14.32 | Available to order | 2 |
| 8 | T1160665 Sightglass, Oil, Dia 20 | Sightglass, Oil, Dia 20 | 1 | $22.64 | Available to order | 1 |
| 9 | T1261488 Oil Filler Plug, Chromed | Oil Filler Plug, Chromed | 1 | $30.32 | Available to order | 1 |
| 10 | T3600028 O Ring, Filler Cap | O Ring, Filler Cap | 1 | $1.40 | Available to order | 1 |
| 11 | T1162010 Stud, Cylinder Head | Stud, Cylinder Head | 8 | $5.24 | Available to order | 8 |
| 12 | T1169022 Barrels, 2 Cyl, Dia 90.0 | Barrels, 2 Cyl, Dia 90.0 | 1 | $2119.28 | Available to order | 1 |
| 13 | T1161100 Tube, Air | Tube, Air | 1 | $27.68 | Available to order | 1 |
| 14 | T3600915 O Ring, ID 18 x 3 | O Ring, ID 18 x 3 | 2 | $2.95 | Available to order | 2 |
| 15 | T1160127 Gasket, Base, 2 Cyl, Dia 90 | Gasket, Base, 2 Cyl, Dia 90 | 1 | $36.74 | Available to order | 1 |
| 16 | T1161037 Gasket, Breather Plate | Gasket, Breather Plate | 1 | $2.85 | Out of Stock | Notify Me |
| 17 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 8 | $0.97 | Available to order | 8 |
| 18 | T1160274 Spout | Spout | 1 | $11.48 | Available to order | 1 |
| 19 | T1161036 Pipe, Breather Drain | Pipe, Breather Drain | 1 | $11.97 | Available to order | 1 |
| 20 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 1 | $5.42 | Available to order | 1 |
| 21 | T1161038 Hose, Breather Drain Extension | Hose, Breather Drain Extension | 1 | $3.59 | Out of Stock | Notify Me |
| 22 | T1161024 Plate, Upper, Breather | Plate, Upper, Breather | 1 | $45.06 | Backorder — Late August 2026 | 1 |
| 23 | T1161025 Plate, Lower, Breather | Plate, Lower, Breather | 1 | $5.78 | Out of Stock | Notify Me |
| 24 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
| 25 | T3450015 Plug, M10 | Plug, M10 | 1 | $1.40 | Available to order | 1 |
| 26 | T2500574 Extension Lead, Alternator | Extension Lead, Alternator | 1 | $6.30 | Available to order | 1 |
