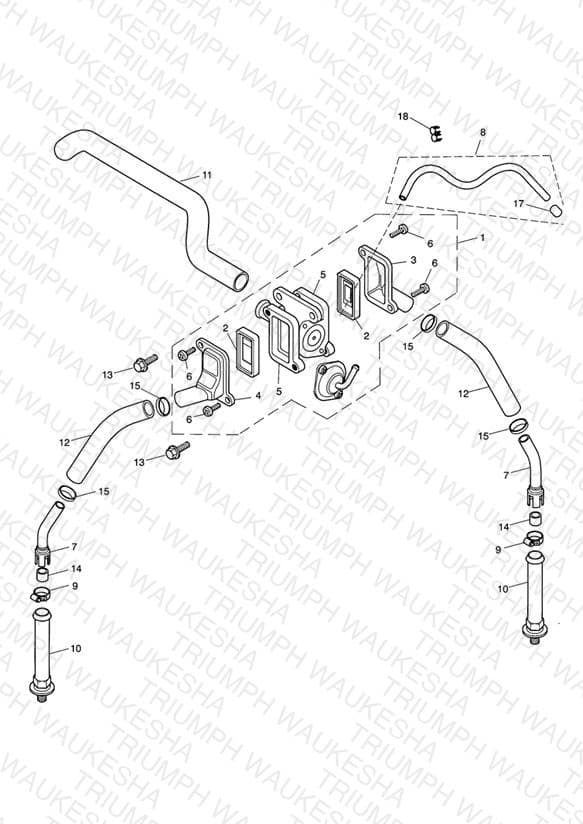

Emissions Control
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1250909 Valve, SAI | Valve, SAI 210262 > | 1 | $85.52 | Out of Stock | Notify Me |
| 1 | T1250070 Valve assembly | Valve assembly "PART NO LONGER AVAILABLE"> 210261 | 1 | $76.88 | Obsolete | View Details |
| 2 | T1250151 Reed Valve | Reed Valve | 2 | $59.87 | Available to order | 2 |
| 3 | T1250030 Cover, Reed Valve, LH | Cover, Reed Valve, LH LH | 1 | $16.66 | Backorder — Late August 2026 | 1 |
| 4 | T1250035 Cover, Reed Valve, RH | Cover, Reed Valve, RH RH | 1 | $16.66 | Backorder — Late August 2026 | 1 |
| 5 | T1250020 Valve body | Valve body | 1 | $23.50 | Obsolete | View Details |
| 6 | T1250040 Screw, M5, Sai | Screw, M5, Sai | 4 | $3.33 | Available to order | 4 |
| 7 | T1251100 Fab Pipe, Od 12.7, Castellated | Fab Pipe, Od 12.7, Castellated | 2 | $19.47 | Available to order | 2 |
| 8 | T1252555 Vacuum Line Assy, 362Lg | Vacuum Line Assy, 362Lg | 1 | $23.00 | Available to order | 1 |
| 9 | T3700083 Clip, Hose, Oetiker, Stepless | Clip, Hose, Oetiker, Stepless | 2 | $7.22 | Available to order | 2 |
| 10 | T1250065 Pipe, ID 8mm, M12 | Pipe, ID 8mm, M12 | 2 | $24.05 | Out of Stock | Notify Me |
| 11 | T1251000 Feed pipe | Feed pipe | 1 | $22.37 | Obsolete | View Details |
| 12 | T1250060 Pipe, Air, ID 9.5mm | Pipe, Air, ID 9.5mm | 2 | $11.56 | Out of Stock | Notify Me |
| 13 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 2 | $3.50 | Available to order | 2 |
| 14 | T1250055 Seal | Seal | 2 | $15.54 | Available to order | 2 |
| 15 | T3700051 Hose Clip, Dia 18.1-20 x 8mm | Hose Clip, Dia 18.1-20 x 8mm | 4 | $2.25 | Out of Stock | Notify Me |
| 16 | T1250001 Washer | Washer | 2 | $2.14 | Obsolete | View Details |
| 17 | T1252500 RESTRICTOR,VACUUM LINE,SAI | RESTRICTOR,VACUUM LINE,SAI | 1 | $11.32 | Available to order | 1 |
| 18 | T2040811 Twin Clip, Brake Hose | Twin Clip, Brake Hose | 1 | $2.63 | Available to order | 1 |
