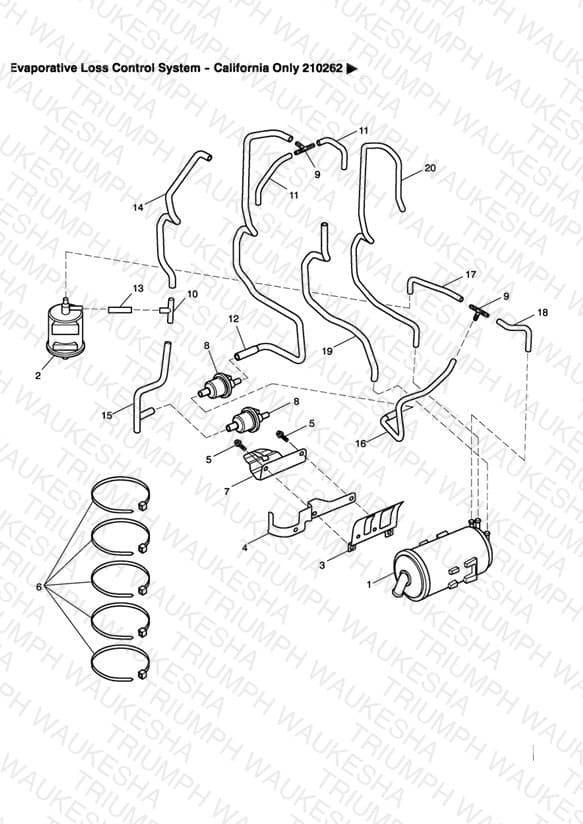

Evaporative Loss Control System - California Only 210262 >
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2400160 Carbon Canister | Carbon Canister | 1 | $56.07 | Obsolete | View Details |
| 2 | T2400155 Carbon Canister, 60 Dia x 65 | Carbon Canister, 60 Dia x 65 | 1 | $26.95 | Obsolete | View Details |
| 3 | T1242540 Bracket, Pri Evap Canister | Bracket, Pri Evap Canister | 1 | $100.76 | Available to order | 1 |
| 4 | T1242550 Bracket, Aux Evap Canister | Bracket, Aux Evap Canister | 1 | $13.90 | Obsolete | View Details |
| 5 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 2 | $3.50 | Available to order | 2 |
| 6 | T3700016 Cable Tie, 370 Long | Cable Tie, 370 Long | 5 | $0.95 | Available to order | 5 |
| 7 | T1240000 Bracket, Purge Valves | Bracket, Purge Valves | 1 | $17.11 | Available to order | 1 |
| 8 | T1240802 Purge Valve, EFI | Purge Valve, EFI | 2 | $58.02 | Unavailable | View Details |
| 9 | T1243154 Connector, T-Piece | Connector, T-Piece | 2 | $2.74 | Available to order | 2 |
| 10 | T1242568 T-Piece, Evap System | T-Piece, Evap System | 1 | $2.74 | Out of Stock | Notify Me |
| 11 | T1242587 Hose Assy, Evap, Purge | Hose Assy, Evap, Purge | 2 | $19.08 | Obsolete | View Details |
| 12 | T1242589 Hose Evap, Purge To T-Piece | Hose Evap, Purge To T-Piece | 1 | $19.66 | Obsolete | View Details |
| 13 | T1242592 Hose Evap, Can To T-Piece | Hose Evap, Can To T-Piece | 1 | $21.53 | Obsolete | View Details |
| 14 | T1242593 Hose Evap, T-Piece To Carb | Hose Evap, T-Piece To Carb | 1 | $19.66 | Obsolete | View Details |
| 15 | T1242594 Hose Evap, Purge To T-Piece | Hose Evap, Purge To T-Piece | 1 | $19.66 | Obsolete | View Details |
| 16 | T1242595 Hose Evap, Can To T-Piece | Hose Evap, Can To T-Piece | 1 | $19.66 | Obsolete | View Details |
| 17 | T1242596 Hose Evap, Can To T-Piece | Hose Evap, Can To T-Piece | 1 | $21.53 | Obsolete | View Details |
| 18 | T1242597 Hose Evap, T-Piece To Purge | Hose Evap, T-Piece To Purge | 1 | $19.66 | Obsolete | View Details |
| 19 | T1242465 Kit, Roll Over Valve, Evap | Kit, Roll Over Valve, Evap > 265150 | 1 | $51.05 | Obsolete | View Details |
| 19 | T1242598 Hose Evap, Can To T-Piece | Hose Evap, Can To T-Piece 265151 > | 1 | $19.08 | Obsolete | View Details |
| 20 | T1242599 Hose Evap, Can To RH Manifold | Hose Evap, Can To RH Manifold | 1 | $19.66 | Obsolete | View Details |
